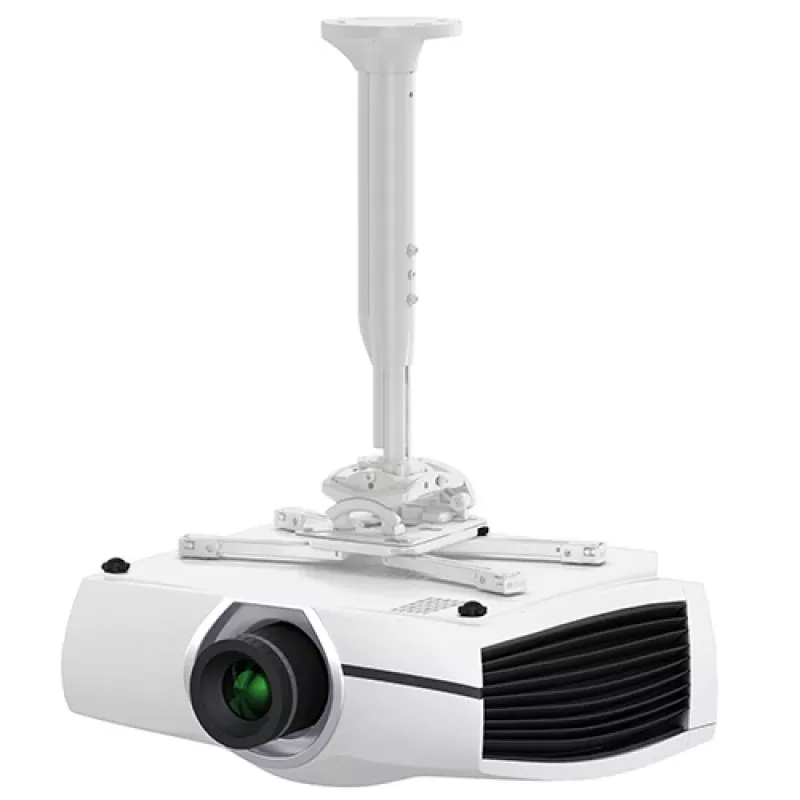

Βάση οροφής Chief KITMC030045W

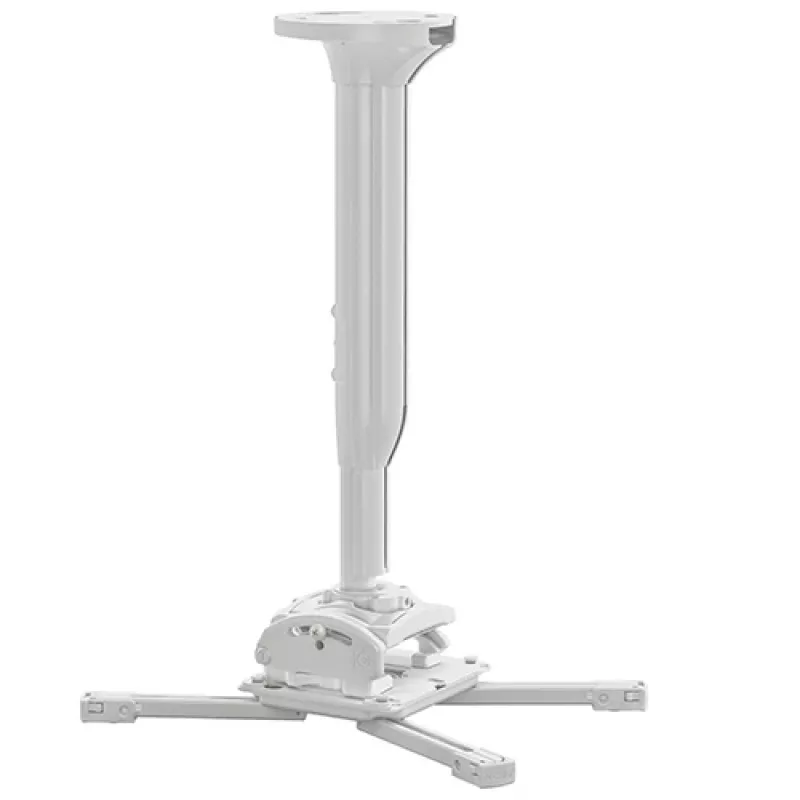

The Chief KITMC030045W ceiling mount kit contains all components required for most projector installations: the RPMEU Mini Elite Projector Mount, CPA116 flat ceiling plate, CPA640 decorative shield ring and a 30–45 cm telescoping extension column. The mount supports projector installations up to the product's specified capacity and comes in a white finish suitable for many interior settings.

Advantages

The telescoping column allows infinite positioning between 30 cm and 45 cm for flexible projector placement. Microzone adjustments enable fast, precise registration of the projector image. A Q-LOCK quick release lever provides tool-free connect/disconnect for servicing. Built-in keyed locking and All-Points Security hardware increase physical security of the installed projector.

Suitable for

• Commercial and educational ceiling-mounted projector installations
• Meeting rooms, classrooms and presentation spaces
• Environments requiring a white finish to match decor

Key specifications

• Model: Chief KITMC030045W
• Mounting type: Ceiling
• Extension column: Telescoping, adjustable 30–45 cm
• Included components: RPMEU Mini Elite mount, CPA116 plate, CPA640 shield ring, extension column
• Product colour: White
• Maximum supported weight: up to 22 kg (per product data)
• Net weight: 4 kg (product weight)

How to use

Install the CPA116 ceiling plate to a suitable structural ceiling anchor point following local building codes. Attach the CPA640 decorative ring and mount the RPMEU Mini Elite projector bracket to the extension column. Adjust the telescoping column to the desired length between 30 cm and 45 cm, then use the microzone adjustment features to align the projector image precisely. Use the Q-LOCK lever for quick connection and removal during maintenance, and engage the keyed lock and All-Points Security hardware for permanent installations that require added security.

Recommendations

Verify ceiling structural capacity and follow all local installation codes. Use appropriate anchors for the mounting surface and confirm projector weight does not exceed the specified 22 kg limit. For permanent or public installations, engage the keyed locking system and All-Points Security hardware.
