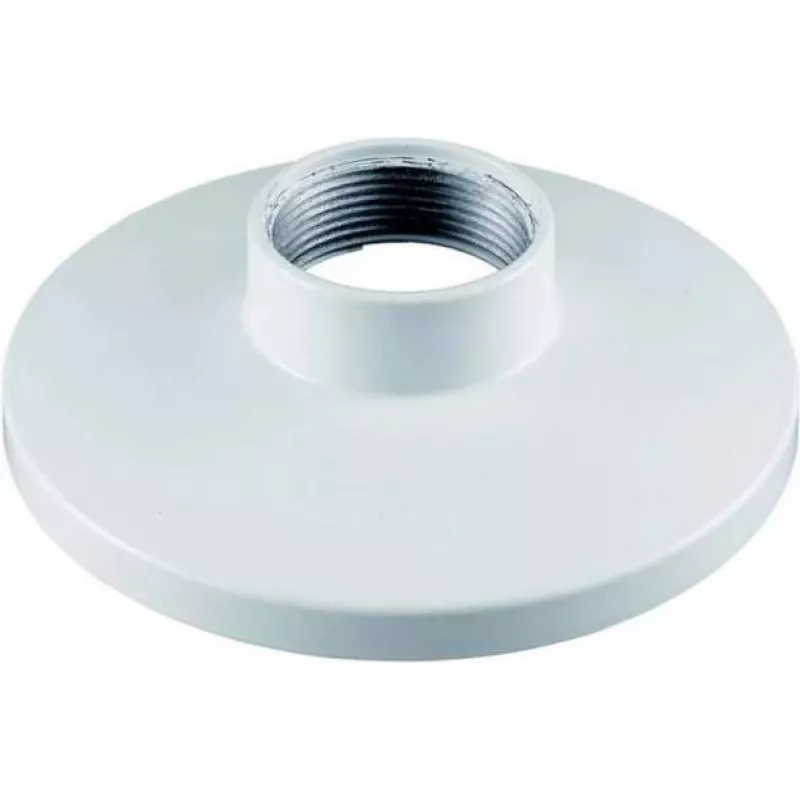

Βάση οροφής Bosch NDA-3080-PIP

The Bosch NDA-3080-PIP pendant bracket is a compact mounting accessory designed to provide stable support for compatible Bosch devices. With a circular top plate and a low-profile height, this white bracket enables secure suspension from ceilings while keeping a discreet visual presence. The package includes compatible M4 T20 screws to simplify attachment and ensure a reliable connection between the device and the mounting surface.

Advantages

This pendant bracket offers a small footprint with a 13.7 cm diameter and a slim 36 mm height that minimizes visual impact while maintaining structural stability. Its neutral white finish blends with common indoor ceilings and installation environments. The included M4 T20 screws reduce the need to source additional fasteners and help speed up installation. The bracket is engineered to work with Bosch device mounts, providing consistent alignment and support.

Suitable for

• Ceiling-mounted suspension of compatible Bosch cameras and sensors
• Indoor installations where a low-profile, discreet bracket is required
• Retrofit projects that replace or upgrade existing pendant mounts

Key specifications

• Diameter: 13.7 cm
• Height: 36 mm
• Color: White
• Material: Metal and/or plastic composite suitable for ceiling mounting
• Included fasteners: M4 T20 screws

How to use

Position the bracket on the ceiling at the desired mounting location and mark the fixing points. Drill appropriate holes for the ceiling type and secure the bracket using the supplied M4 T20 screws or alternative fixings suited to the substrate. Attach the compatible Bosch device to the bracket, verifying alignment and tightening fasteners to prevent movement. Confirm that the mounted device is level and that cable routing is arranged safely before completing the installation.

Recommendations

Verify the compatibility of the bracket with the specific Bosch device model before installation and select fixings appropriate to the ceiling material and load requirements. Follow local building and electrical codes when routing cables and fastening the bracket.
