Βάση οροφής B-Tech SYSTEM 2 BT899-AD/B 25 kg μαύρη

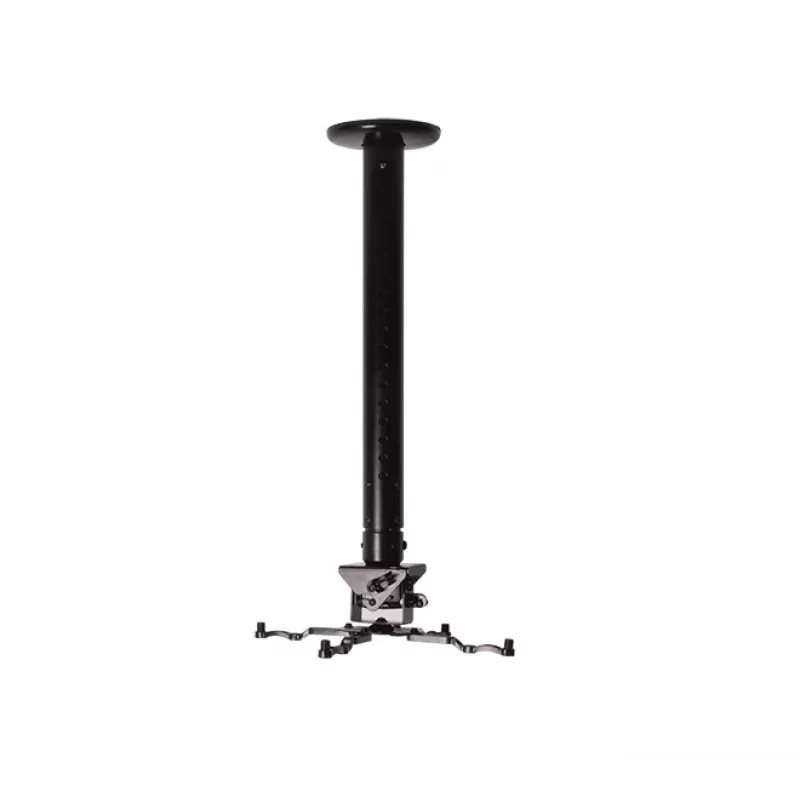

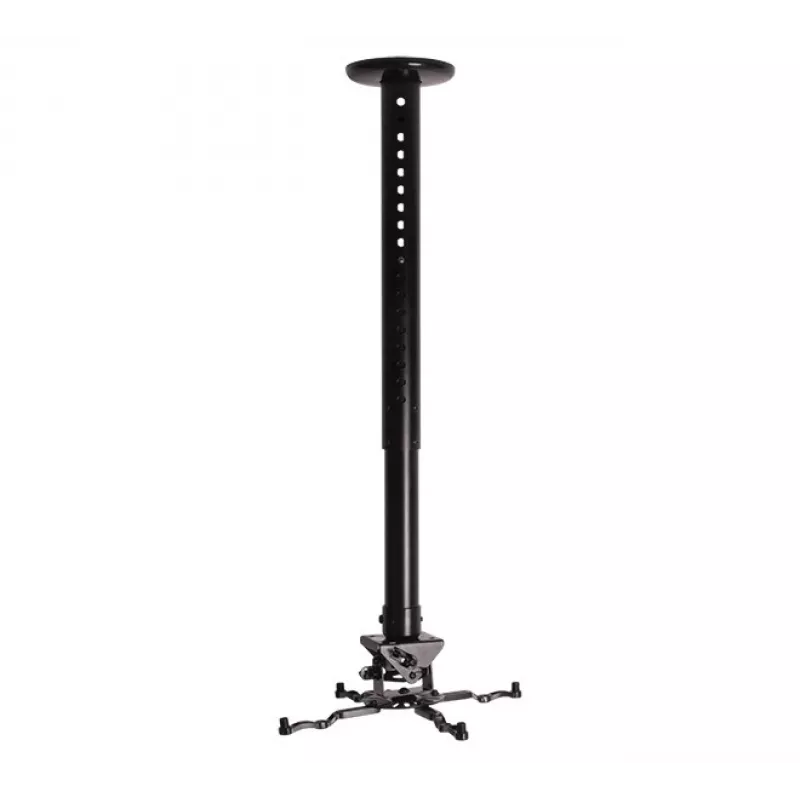

The B-Tech SYSTEM 2 BT899-AD/B is a universal ceiling projector mount for secure installation of projectors weighing up to 25 kg. It features an adjustable pole with a 50 mm diameter and a length range suitable for installations between 0.6 m and 1.0 m, a sleek black finish, and a maximum drop of 1143 mm. The mount supports precise alignment through adjustable tilt, yaw and roll, and includes optional micro-adjustment for fine positioning.

Advantages

The BT899-AD/B offers stepwise height adjustment in 25 mm increments and can be securely fixed at the chosen height. Its construction supports a maximum projector weight of 25 kg and provides easy mechanical adjustments for tilt, yaw and roll. Optional micro-adjustment simplifies precise image alignment. The black finish and compact pole diameter (50 mm) allow discreet integration into home theaters, classrooms and conference rooms.

Suitable for

• Home cinema projectors up to 25 kg
• Classroom and lecture room installations
• Conference rooms and meeting spaces
• Fixed AV installations requiring precise alignment

Key specifications

• Maximum load: 25 kg
• Pole diameter: 50 mm
• Adjustable pole length: 0.6 m – 1.0 m
• Maximum drop: 1143 mm
• Height increments: 25 mm

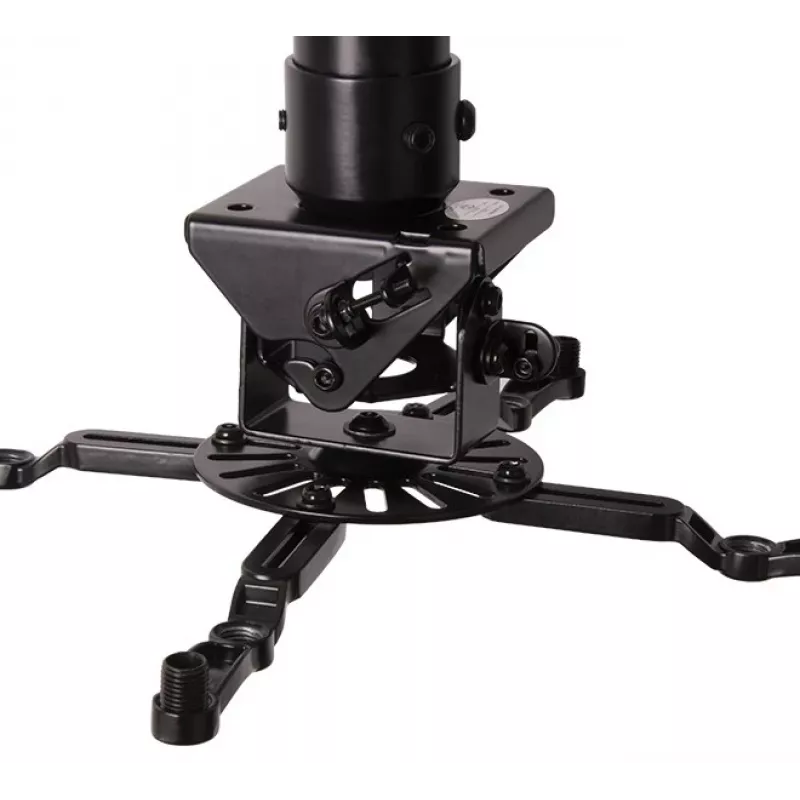

• Adjustments: tilt, yaw, roll; optional micro-adjustment
• Mounting type: ceiling
• Colour: black

How to use

Fix the ceiling plate to a suitable structural support using appropriate fasteners for your ceiling type. Attach the pole to the ceiling plate and set the required pole length between 0.6 m and 1.0 m. Mount the projector bracket to the projector according to the projector manufacturer’s mounting points, then attach the bracket to the pole. Adjust height in 25 mm increments and secure at the chosen position. Use the tilt, yaw and roll adjustments to align the projected image; apply micro-adjustment if available for fine tuning.

Recommendations

Verify the projector’s weight and mounting point compatibility before installation. Use suitable ceiling fixings rated for the combined weight, and perform final alignment with a projected test image. If unsure, consult a qualified installer.
