Βάση Hikvision DS-1473ZJ-135

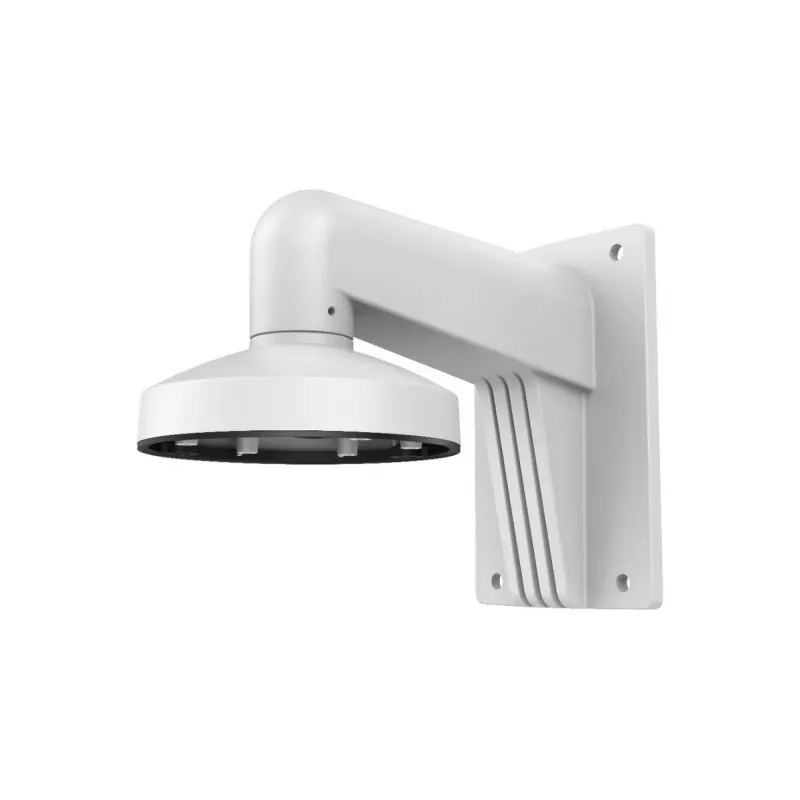

The Hikvision DS-1473ZJ-135 is a white camera mount engineered for reliable support of surveillance cameras. Designed for fixed and PTZ cameras with a maximum payload of 3 kg, the mount provides a stable platform with a compact footprint. Its outer diameter measures 13.6 cm and the unit dimensions are 230 mm wide by 183.5 mm high, making it suitable for wall or ceiling installations where a discrete yet sturdy mounting solution is required.

Advantages

The mount is constructed to deliver consistent mechanical strength and dimensional stability in indoor and sheltered outdoor environments. Its neutral white finish integrates with common camera housings and architectural surfaces. Compatibility with Hikvision Digital Technology products ensures straightforward fitting and alignment, while the moderate size and load capacity allow use with many compact surveillance camera models without excessive bulk.

Suitable for

• Mounting compact dome and bullet surveillance cameras up to 3 kg
• Wall- and ceiling-mounted installations in retail, office, and residential environments
• Interior and sheltered exterior locations where a discreet mount is needed

Key specifications

• Color: white
• Maximum supported weight: 3 kg
• Outer diameter: 13.6 cm
• Width: 230 mm
• Height: 183.5 mm
• Material: metal/plastic composite suitable for camera support (as per manufacturer design)

How to use

Select an appropriate mounting surface rated to carry the combined weight of the mount and camera. Position the DS-1473ZJ-135 against the wall or ceiling and mark fastening points using the mount as a template. Drill holes for anchors or screws appropriate to the substrate, install anchors if required, then secure the mount with corrosion-resistant fasteners. Attach the camera to the mount following the camera manufacturer's instructions, route cabling through the mount if applicable, and adjust the camera orientation to achieve the desired field of view before tightening all fixings.

Recommendations

Verify that the selected camera does not exceed the 3 kg load limit and use appropriate anchors for the mounting surface. For outdoor-exposed installations, place the mount in sheltered locations or use additional weatherproofing measures to protect connections and maintain long-term stability.
