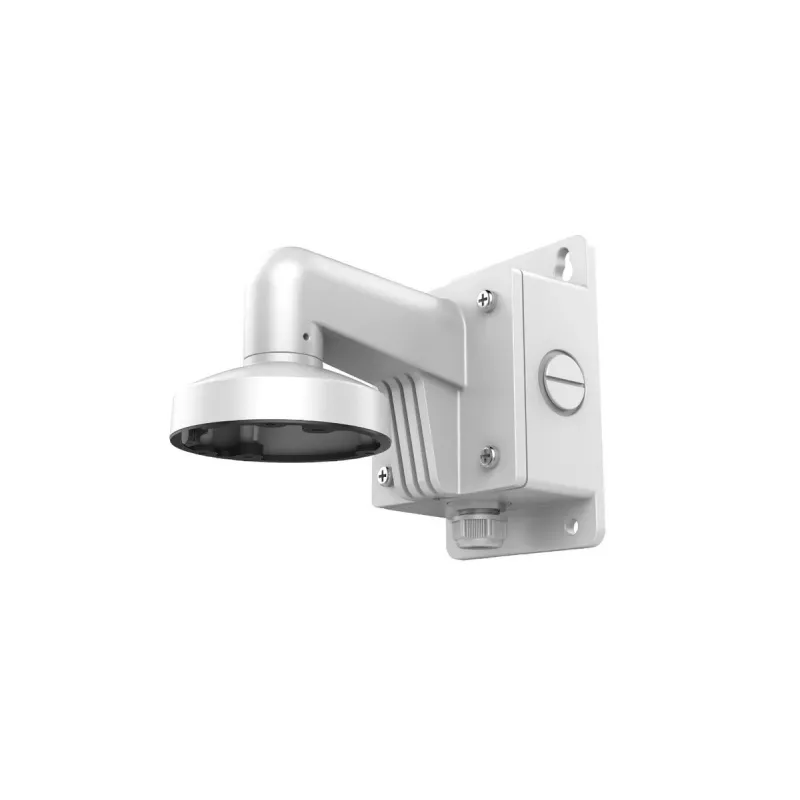

Βάση Hikvision DS-1272ZJ-110B

The Hikvision DS-1272ZJ-110B is a white aluminum-alloy mount designed for secure installation of Hikvision surveillance cameras. With dimensions of 123 mm width, 180 mm depth and 227.8 mm height, the mount provides a stable support and neat cable management through an integrated junction box and a dedicated cable entry hole. The surface spray treatment improves durability and resists external conditions.

Advantages

Constructed from aluminum alloy with a protective surface spray, the mount offers corrosion resistance and low weight. The dedicated cable entrance and internal junction box enable tidy cable routing and easier connections. The improved waterproof design increases protection for cabling and connector points in outdoor or semi-exposed installations.

Suitable for

• Mounting Hikvision dome and bullet cameras compatible with DS-1272ZJ-110B
• Outdoor or semi-exposed surveillance points requiring weather-resistant mounting
• Installations needing concealed cable routing and an integrated junction box

Key specifications

• Model: DS-1272ZJ-110B
• Brand: Hikvision
• Material: Aluminum alloy
• Finish: Surface spray treatment
• Dimensions (W×D×H): 123 × 180 × 227.8 mm
• Includes: Integrated junction box, cable entry hole
• Sold: Individually

How to use

Position the mount at the desired installation point and mark drill locations according to the mount’s base. Run camera cables through the dedicated cable entry hole into the internal junction box before fixing the mount to the surface. Connect camera cabling inside the junction box, secure connectors, and seal any exposed openings following standard installation practices. Finally, attach the camera to the mount and adjust for the required field of view.

Recommendations

For outdoor installations, apply silicone or appropriate sealing at mounting points and around cable entries if additional water-tightness is required. Verify compatibility with your Hikvision camera model prior to installation.
