Βάση Flush Mount LevelOne FCS-4043 FCS-4044

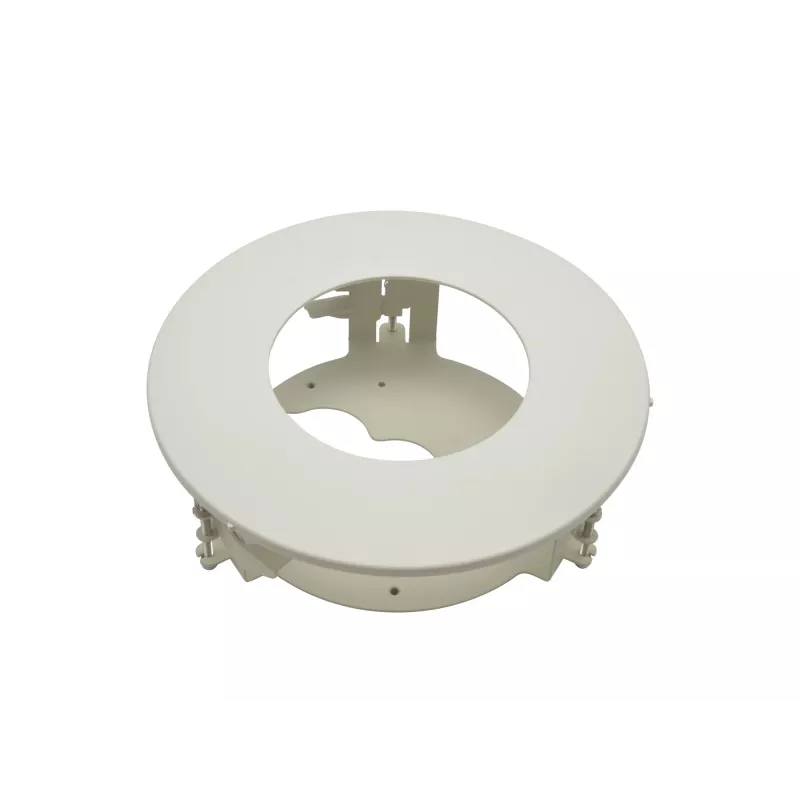

The LEVELONE Flush Mount Bracket for models FCS-4043 and FCS-4044 provides a compact, reliable mounting solution for indoor and sheltered outdoor CCTV installations. Designed specifically for the FCS-4043 and FCS-4044 cameras, the bracket has a depth of 72.1 mm and a height of 197.2 mm, and the packaged unit includes one bracket with overall width 200 mm and package depth 100 mm. The bracket weighs 359.5 g and is intended to offer a stable interface between the camera housing and a flat mounting surface.

Advantages

The bracket is purpose-built for LevelOne FCS-4043 and FCS-4044 cameras, ensuring correct fit and alignment. Its compact depth (72.1 mm) minimizes projection from the mounting surface while the 197.2 mm height accommodates the camera body. The included bracket in a single-package format simplifies installation planning. Constructed to provide a secure mounting point, the bracket supports consistent camera orientation and reduces the risk of accidental displacement.

Suitable for

• Flush mounting LevelOne FCS-4043 cameras
• Flush mounting LevelOne FCS-4044 cameras
• Indoor CCTV installations with flat wall or panel surfaces
• Situations requiring a low-profile camera installation

Key specifications

• Compatible models: LevelOne FCS-4043, FCS-4044
• Bracket depth: 72.1 mm
• Bracket height: 197.2 mm
• Package includes: 1 bracket
• Package dimensions: width 200 mm, depth 100 mm
• Weight: 359.5 g
• Brand: LEVELONE
• Manufacturer part number (MPN): CAS-3004
• EAN: 4015867191866

How to use

Mount the bracket to a flat, stable surface using appropriate fasteners for the substrate (fasteners not included). Position the bracket so that the camera alignment matches the intended field of view. Attach the LevelOne FCS-4043 or FCS-4044 camera to the bracket following the camera’s mounting points and secure it with the recommended screws. Verify camera orientation, tighten fasteners to manufacturer torque recommendations, and connect power and data cabling as required. After installation, perform a final check of the camera image and mechanical stability.

Recommendations

Use corrosion-resistant fasteners appropriate for the mounting surface and environment. For outdoor or humid locations, ensure the bracket and camera have suitable environmental protection and that cable entry points are sealed. Follow LevelOne guidelines for camera installation and inspection intervals to maintain optimal performance.
