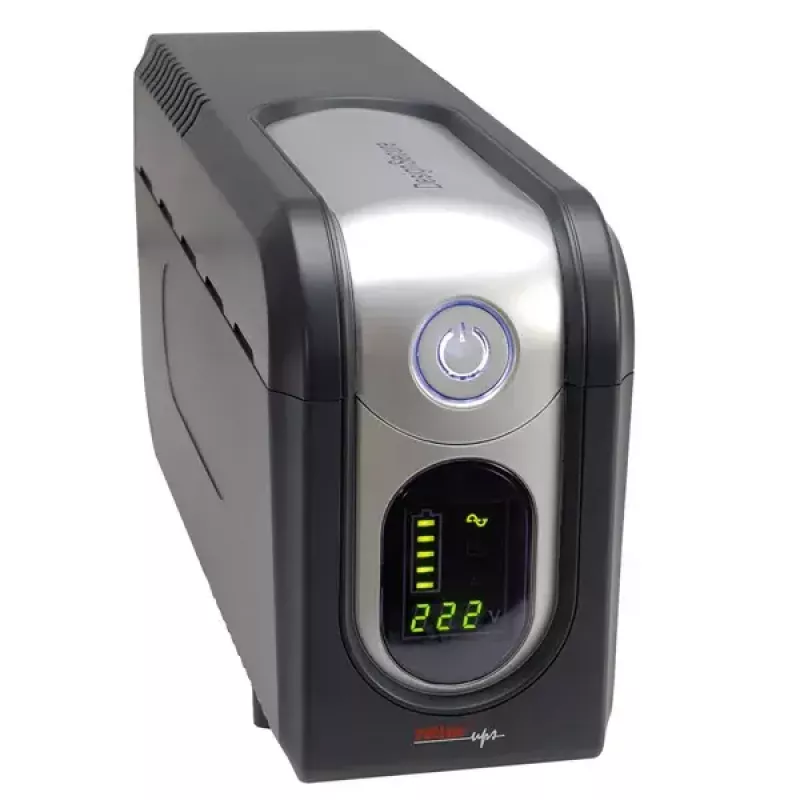

UPS ROLINE DesignSecure 625

The ROLINE DesignSecure 625 is a compact Line-Interactive UPS designed for workstations and PCs. With a power capacity of 0.625 kVA (375 W output) and five C13 AC outlets, it provides short-term battery backup and voltage regulation to protect sensitive electronic equipment. The tower housing in black and silver supports passive cooling and includes a digital status display, integrated surge protection, telephone/modem connections and a USB port for advanced power management software (included).

Advantages

The UPS offers Automatic Voltage Regulation (AVR) to stabilise fluctuating mains voltage, an EMI/RFI noise filter to reduce electrical interference, a digital status display for clear monitoring and an integrated overvoltage protector. Its compact futuristic design and tower form factor allow easy placement near workstations while maintaining effective passive cooling.

Suitable for

• Desktop PCs and workstations
• Home office equipment and small office networks
• Protecting sensitive electronics from brief power interruptions and voltage spikes

Key specifications

• Model: ROLINE DesignSecure 625 (MPN 19.40.1206, EAN 7611990171026)
• Type: Line-Interactive UPS with AVR
• Output power: 375 W
• Output power capacity: 0.625 kVA
• AC outlets: 5 × C13
• Ports: 1 × USB 2.0; telephone/modem protection
• Display: Digital status display
• Weight: 6.3 kg
• Colour: Black, Silver

How to use

Place the UPS in a stable, ventilated location near the equipment to be protected. Connect the UPS to mains power, then plug your PC, workstation and peripheral devices into the C13 outlets. Connect the USB port to the host computer and install the supplied power management software to enable advanced monitoring and graceful shutdown features. Use the telephone/modem connectors if protecting a dial-up or line device. Monitor the digital display for status and alarms.

Recommendations

For reliable operation, perform periodic battery tests and replace batteries according to manufacturer guidance. Avoid blocking ventilation openings and keep the UPS in an environment within the recommended temperature and humidity ranges for electronic equipment.
