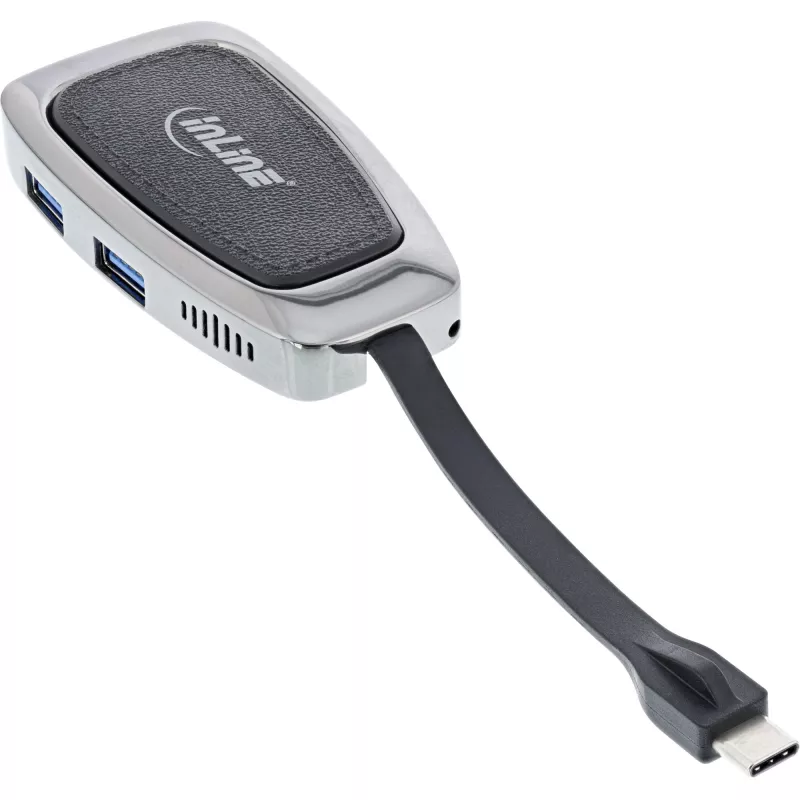

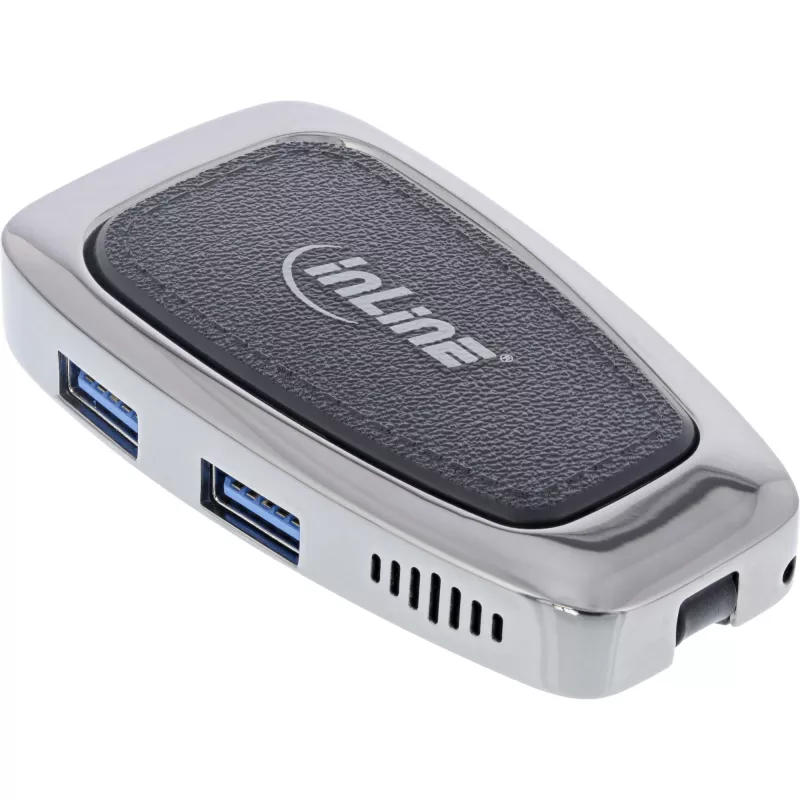

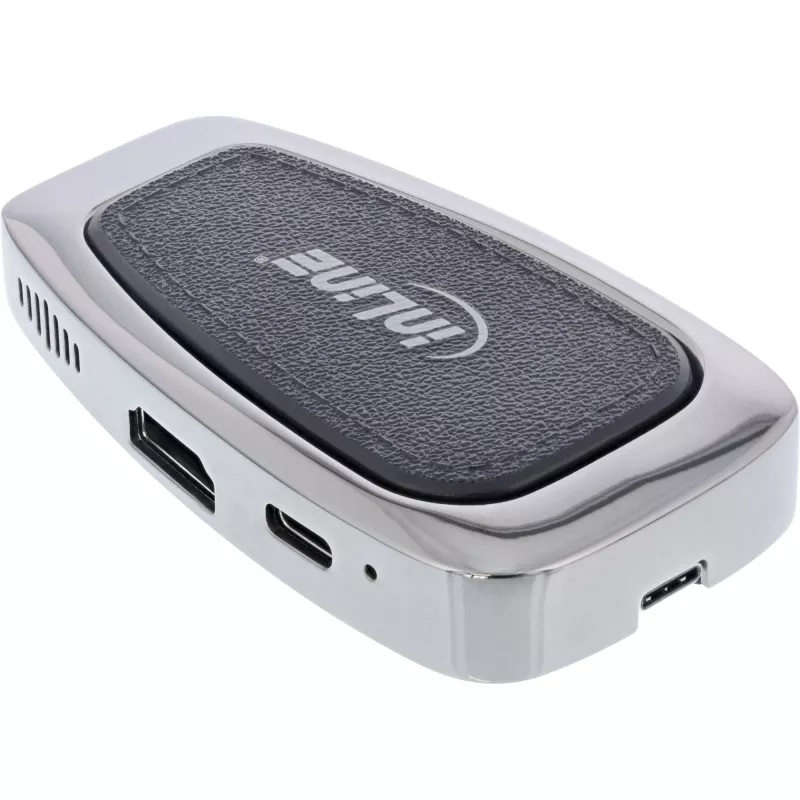

USB Hub InLine USB 3.2 Gen. 2 Multi Hub (2xUSB-A + 1xHDMI + 1xUSB-C)

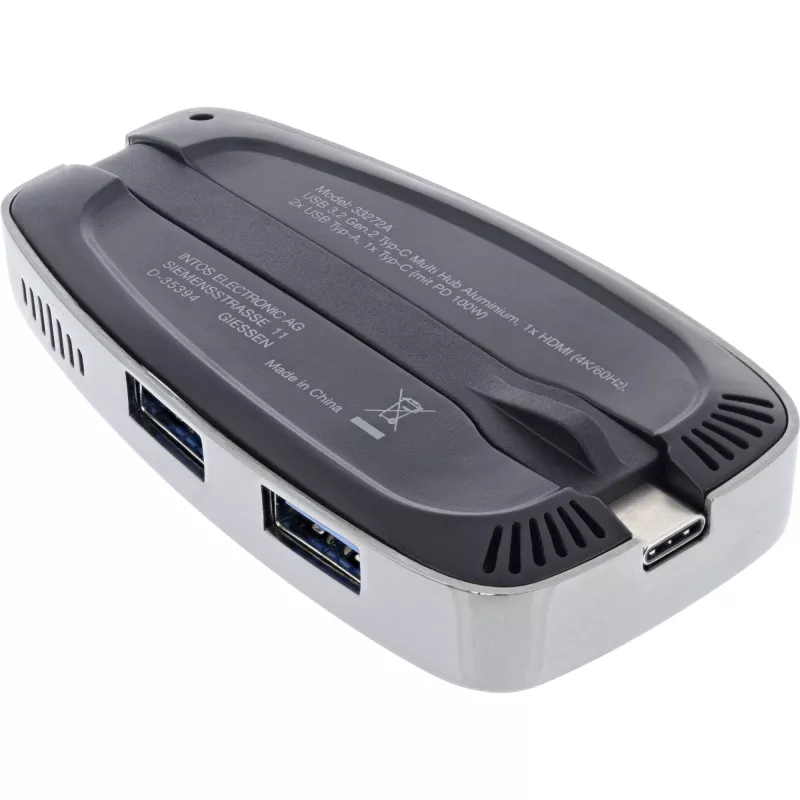

The InLine USB 3.2 Gen. 2 Multi Hub expands a single USB Type-C port into two USB Type-A ports, one USB Type-C port and one HDMI output. This compact hub supports data transfer rates up to 10 Gbps, HDMI video output up to 4K at 60 Hz, and power delivery up to 100 W. The aluminum housing stores the connection cable under the housing and the robust, lightweight construction makes the hub suited for mobile use with macOS and Windows systems as well as Thunderbolt 3 connections in alternate mode.

Advantages

The hub offers a small form factor with multiple interfaces — two USB-A, one USB-C and one HDMI — enabling simultaneous data transfer, video output and device charging. It supports USB 3.2 Gen 2 speeds (10 Gbps) and 4K@60Hz HDMI output while providing up to 100 W power delivery. The aluminum housing stores the integrated cable and contributes to durability and heat dissipation. The device is plug-and-play compatible with Mac and Windows and works with Thunderbolt 3 ports in alternate mode.

Suitable for

• Connecting external monitors via HDMI (up to 3840 x 2160 @ 60 Hz)
• Attaching peripherals such as external drives, keyboards and mice via USB-A
• Charging or powering laptops and devices using the USB-C PD input (up to 100 W)
• Expanding ports on ultrabooks and laptops with a single USB-C or Thunderbolt 3 port

Key specifications

• Host interface: USB 3.2 Gen 2 (Type-C)
• Data transfer rate: up to 10 Gbps
• HDMI output: up to 4K (3840 x 2160) at 60 Hz
• Power delivery: up to 100 W
• Ports: 2x USB-A (USB 3.2 Gen 2), 1x USB-C (USB 3.2 Gen 2), 1x HDMI
• Dimensions: 46.5 mm x 85.5 mm x 16 mm
• Colour: Silver

How to use

Connect the hub to a computer or compatible device using the integrated USB-C cable. Use the HDMI port to connect an external monitor or TV and configure the display settings in your operating system. Plug USB-A devices such as external hard drives, keyboards or mice into the USB-A ports. If required, connect a USB-C power adapter to the hub to supply power delivery to a connected laptop or to charge USB-C devices; ensure the power adapter supports the desired wattage (up to 100 W).

Recommendations

For reliable 4K@60Hz output and full data throughput, use quality HDMI cables and a USB-C power adapter rated for the necessary power. Avoid heavy mechanical stress on the integrated cable and store it under the aluminum housing when transporting the hub.
