USB Hub EXSYS EX-1510HMVS

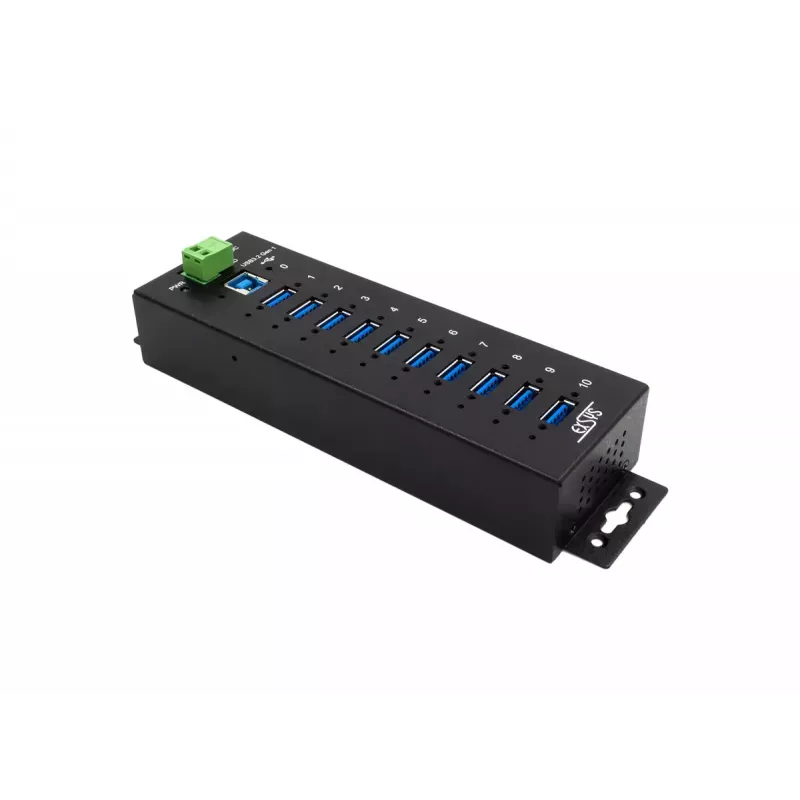

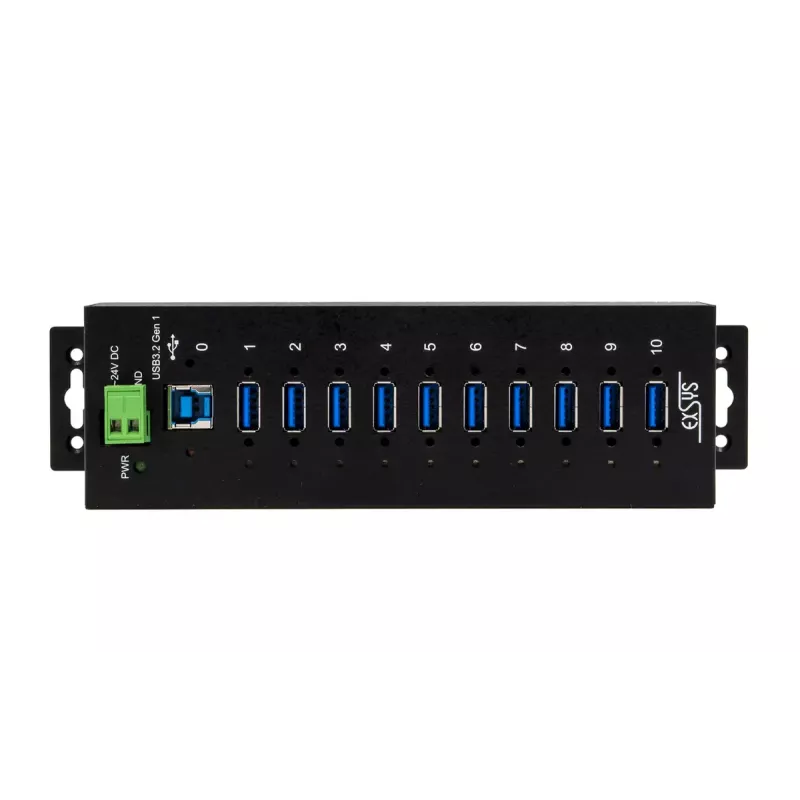

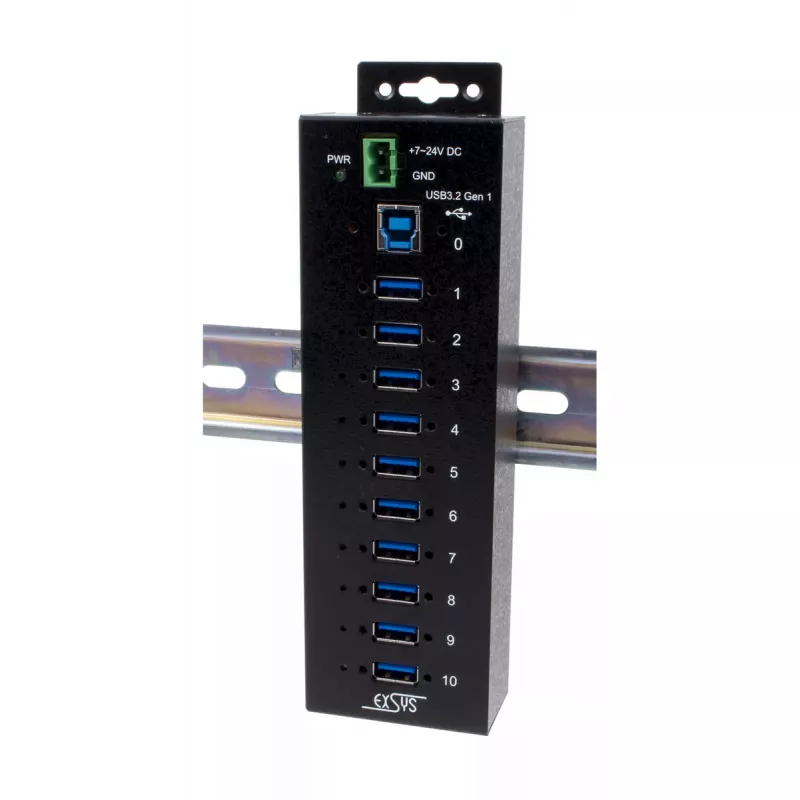

The EXSYS EX-1510HMVS is a USB 3.2 Gen 1 (also referred to as USB 3.0 / 3.1 Gen 1) hub that expands a single host connection into multiple Type-A downstream ports for industrial and embedded applications. It supports data transfer rates up to 5000 Mbit/s, is compatible with USB 3.1, USB 2.0 and USB 1.1 devices, and accepts an external DC power supply. The hub features a durable metal housing and compact dimensions (198 × 55 × 30.8 mm), with eleven screw-mountable downstream ports and an output current capability up to 2.4 A for device charging.

Advantages

The EX-1510HMVS offers a high-speed USB 3.2 Gen 1 interface with broad backward compatibility, a robust metal enclosure suitable for industrial use, and multiple screwable Type-A ports for secure device connection. The unit supports USB Battery Charging specification v1.2 (SDP, CDP, DCP) and common vendor-specific charging modes such as Apple 2.4A and Samsung. Management utilities allow individual downstream port power on/off and hub reset, and the hub can store port states in flash memory to restore them on the next power cycle.

Suitable for

• Industrial workstations and control cabinets requiring reliable multiple USB connections
• Embedded systems and single-board computers that need expanded USB ports
• Environments where secure, screw-mountable USB connections are required
• Applications that need per-port power control or automated port state restoration

Key specifications

• Host interface: USB 3.2 Gen 1 (Type-B)
• Hub interfaces: USB 3.2 Gen 1 Type-A
• Ports quantity: 11 (ten downstream + host)
• Maximum data rate: up to 5000 Mbit/s
• Charging support: USB Battery Charging v1.2 (SDP, CDP, DCP); vendor-specific modes (Apple 2.4A, Samsung)
• Output current: up to 2.4 A
• Housing: metal, colour: black
• Dimensions (W×D×H): 198 × 55 × 30.8 mm
• Weight: 0.63 kg

How to use

Connect the host Type-B connector of the EX-1510HMVS to your computer or host device using a compatible USB cable, then attach downstream devices to the Type-A ports. Provide the external DC power supply to enable full charging currents and stable operation under multiple loads. Install the provided management utilities on the target operating system (Windows or supported Linux distributions) to control per-port power, perform hub resets, and save or restore port states from flash memory. Developers can integrate control functions using supplied command-line tools or API libraries compatible with languages such as C#, C++, VB, Python or PHP.

Recommendations

For reliable operation in industrial environments, secure the hub using its screw-mountable ports and metal enclosure, use the external DC power adapter when connecting multiple high-current devices, and install the appropriate EXSYS management utility for your OS to control port power and preserve desired port states across power cycles.
