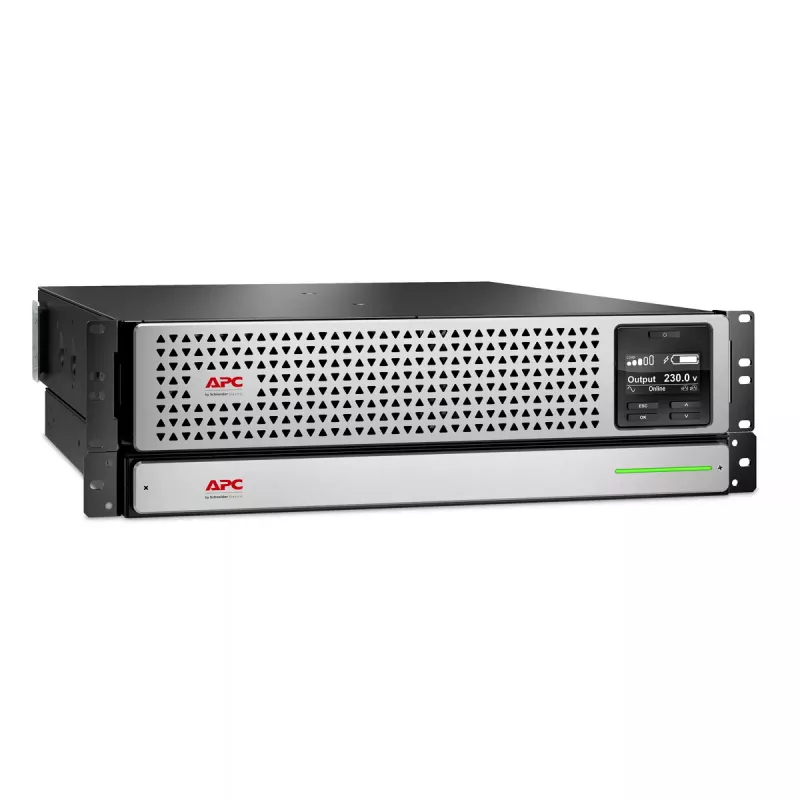

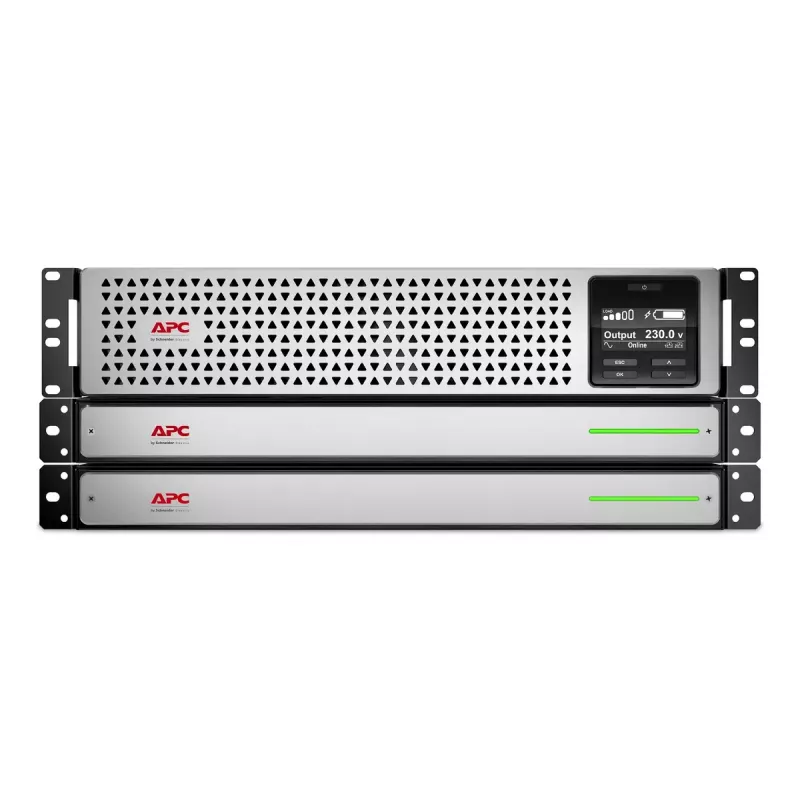

UPS APC Smart-UPS On-Line 1500VA Rackmount 3U

The APC Smart-UPS On-Line 1500VA Rackmount 3U is a double-conversion on-line uninterruptible power supply designed for rack installations where continuous, regulated power is required. Delivering 1.5 kVA (1350 W) of output power, this 3U unit supplies a pure sine wave to connected equipment through eight IEC 320 C13 outlets and an IEC 320 C14 input. It includes an integrated Network Management Card for remote monitoring and control, supports graceful shutdown with PowerChute Network Shutdown, and is compatible with EcoStruxure IT and third-party management platforms. The unit is available in a black and grey enclosure and is certified to CE, EAC, RCM, and VDE standards.

Advantages

The double-conversion topology isolates equipment from input power anomalies, providing continuous, regulated output without transfer time. Integrated network management and PowerChute Network Shutdown enable centralized monitoring, event logging and automated safe shutdown of physical servers, virtual machines and HCI clusters. The design supports extended runtime via an external lithium-ion battery with up to 10 years expected life and a fast recharge cycle. A 5-year warranty covers both the UPS and the lithium-ion battery, simplifying long-term maintenance planning.

Suitable for

• Rack-mounted servers and blade systems in data centers and server rooms
• Network equipment such as switches, routers and firewalls
• Virtualized environments and hyperconverged infrastructure requiring graceful shutdown
• Edge computing sites and branch offices where space-efficient rackmount protection is needed

Key specifications

• Output power capacity: 1.5 kVA
• Rated output power: 1350 W
• Topology: Double-conversion on-line (continuous regulation)
• Output waveform: Pure sine wave
• AC outlets: 8 × IEC 320 C13
• Input connector: IEC 320 C14
• Network management: Preinstalled Network Management Card with network-based monitoring and management support
• Battery type: External lithium-ion battery (supports extended runtime)
• Battery lifespan: Up to 10 years
• Battery recharge time: Approximately 6 hours
• Form factor: 3U rackmount
• Colour: Black, Grey
• Certifications: CE, EAC, RCM, VDE
• Weight: 25.7 kg

How to use

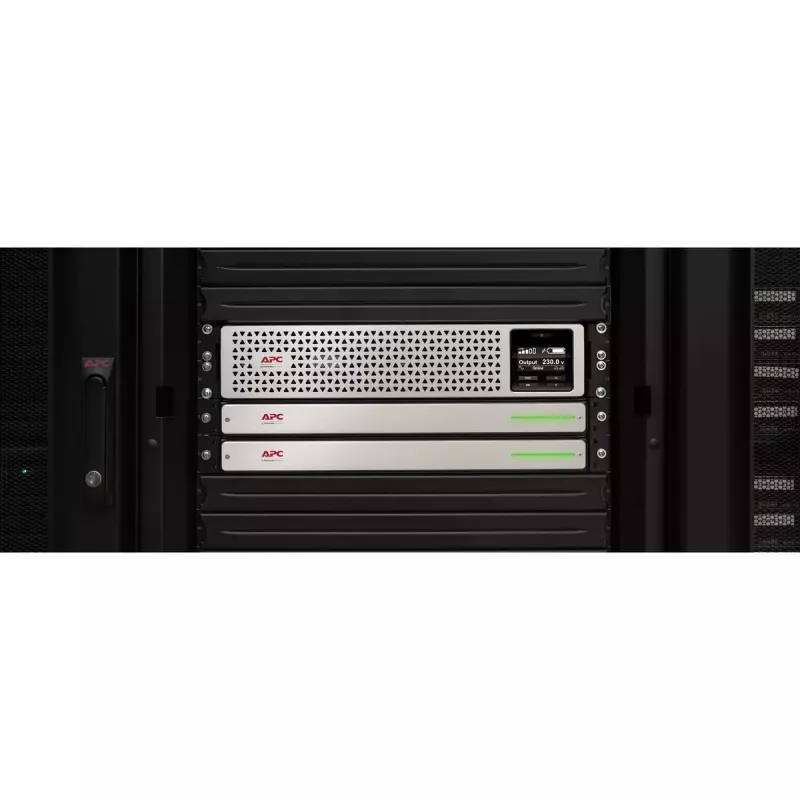

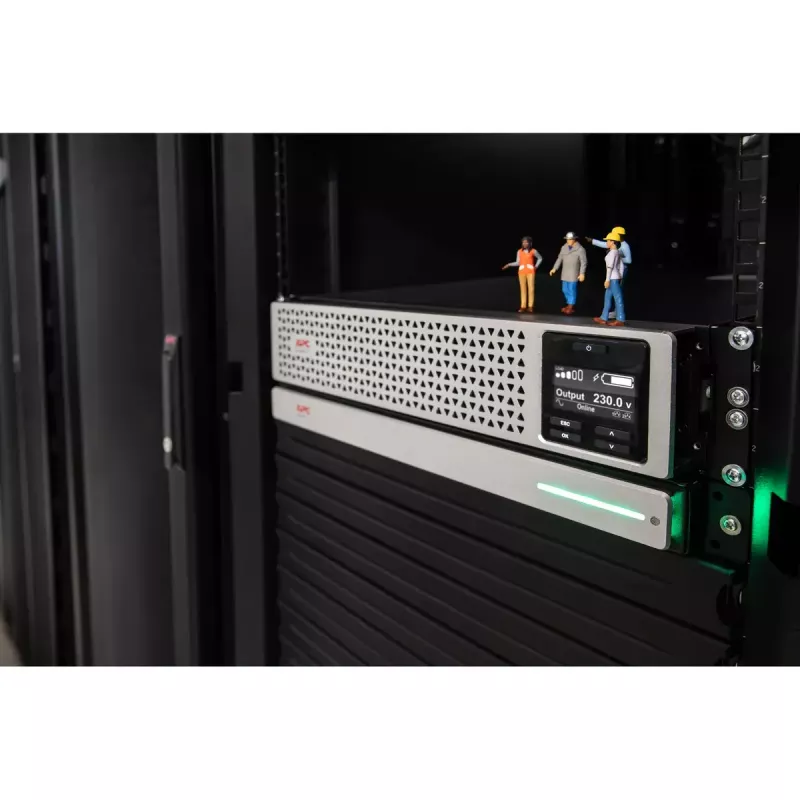

Mount the 3U UPS in a suitable server rack following the rackmount instructions and secure it at the recommended depth for proper airflow. Connect the AC input to a compatible mains source using the IEC 320 C14 inlet. Plug critical equipment into the eight IEC 320 C13 outlets, prioritizing servers and network devices that require uninterrupted power. Configure the preinstalled Network Management Card via the local network to enable remote monitoring, event notification and integration with EcoStruxure IT or other management platforms. Install and configure PowerChute Network Shutdown on protected systems to ensure orderly shutdown sequences for physical and virtual workloads in the event of extended power loss.

Recommendations

For reliable performance, ensure the UPS is installed in a temperature-controlled environment with adequate ventilation and within the manufacturer’s specified operating ranges. Use the external lithium-ion battery option to achieve required runtimes and verify battery connections and firmware are up to date. Periodically test the shutdown sequence and monitoring alerts to confirm integration with servers and management platforms. Observe rack weight and balance guidelines when installing the unit; allow space for cable management and service access.
