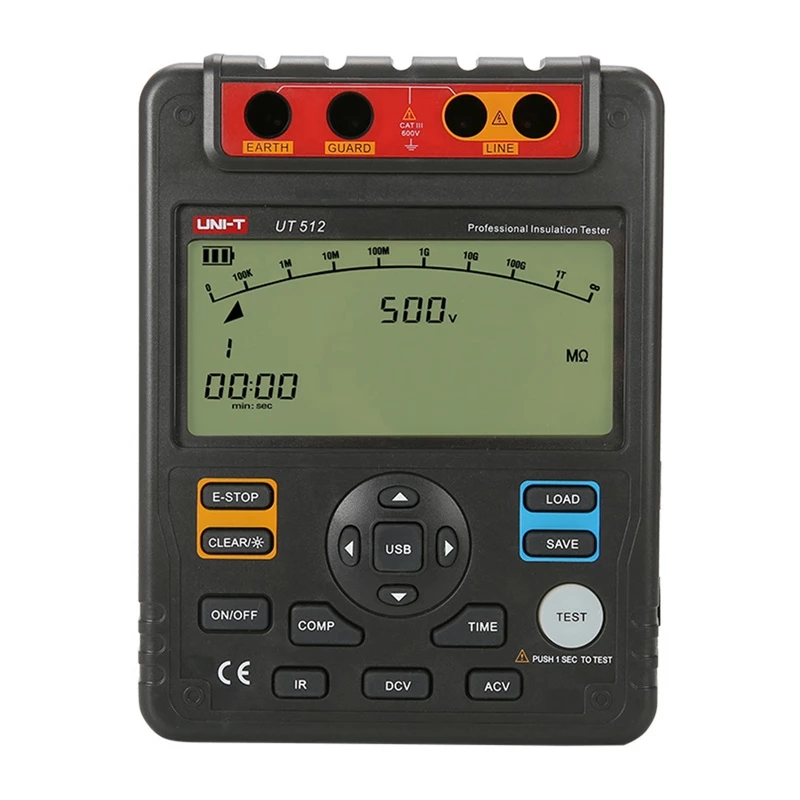

Uni-T UT512 ελεγκτής αντίστασης μόνωσης υψηλής τάσης

The Uni-T UT512 is a professional high-voltage insulation resistance tester designed for electrical maintenance and troubleshooting. It offers reliable measurement of insulation resistance up to 100 GΩ with test voltages of 500V, 1000V, 2500V, and 5000V, making it suitable for a wide range of industrial and commercial applications.

Advantages

High accuracy and stability, large backlit LCD display for easy reading in low light, automatic discharge of capacitive voltage, and overvoltage protection ensure safe operation. The device also features data storage and USB interface for data transfer.

Suitable for

• Electrical engineers and technicians
• Maintenance of motors, cables, transformers, and switchgear
• Industrial and commercial electrical systems

Key specifications

• Test voltages: 500V, 1000V, 2500V, 5000V
• Insulation resistance range: up to 100 GΩ
• Accuracy: ±5% ±5 digits
• Display: large backlit LCD
• Power supply: rechargeable battery
• Data storage: 100 groups
• Interface: USB

Recommendations

For best results, use with shielded test leads and ensure the device is fully charged before use. Always follow safety procedures when testing high-voltage equipment.
