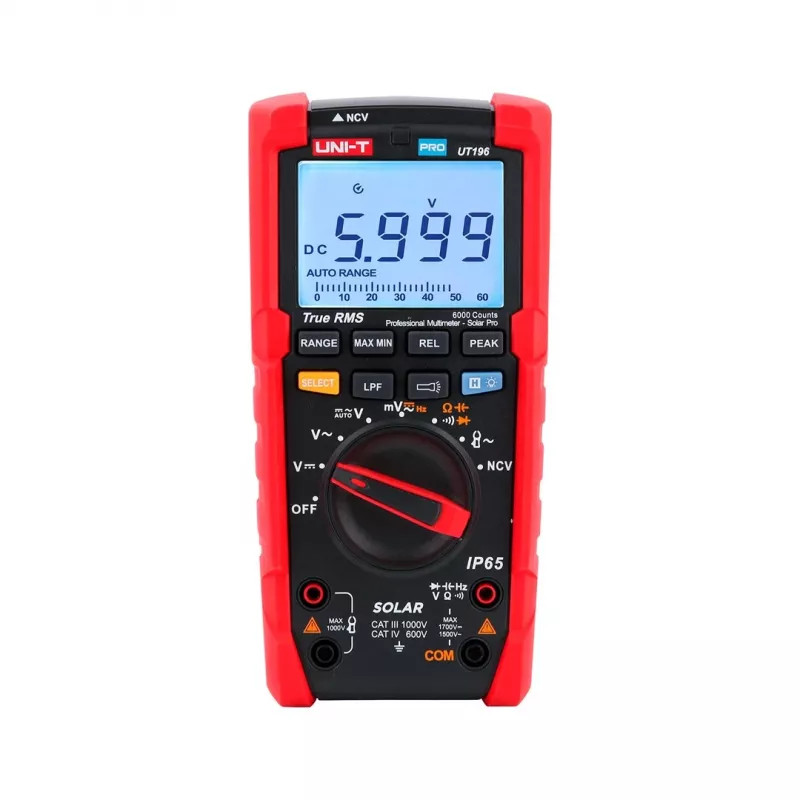

UNI-T UT196 Ψηφιακό πολύμετρο 60000 Counts True RMS CAT IV 600V IP65

The UNI-T UT196 is a professional-grade digital multimeter designed for demanding electrical and industrial environments. With a 60000-count display, true RMS measurement, and an extensive range of functions, it delivers accurate and reliable readings for both AC and DC systems. Its rugged construction meets CAT IV 600V safety standards and IP65 rating, making it suitable for outdoor and heavy-duty use.

Advantages

High precision with 60000 counts and true RMS ensures accurate measurements even on non-sinusoidal waveforms. The IP65 rating provides dust and water resistance, while 2-meter drop protection enhances durability. Features like LoZ, LPF, and NCV improve safety and efficiency in troubleshooting.

Suitable for

• Electricians and maintenance technicians working on industrial equipment
• Solar panel and renewable energy system testing
• HVAC and electrical panel diagnostics
• Field service and outdoor applications requiring robust tools

Key specifications

• Display Count: 60000
• True RMS: Yes
• DC Voltage Range: Up to 1000V
• AC Voltage Range: Up to 1000V
• DC Current Range: Up to 20A
• AC Current Range: Up to 20A
• Resistance Range: Up to 60MΩ
• Capacitance Range: Up to 60mF
• Frequency Range: Up to 10MHz
• Temperature Measurement: -40°C to 1000°C (-40°F to 1832°F)
• Safety Rating: CAT III 1000V, CAT IV 600V
• IP Rating: IP65
• Drop Protection: 2 meters
• Special Functions: LoZ, LPF, NCV
• Diode Test: Yes
• Continuity Buzzer: Yes
• Data Hold: Yes
• MAX/MIN/AVG: Yes
• Backlight: Yes
• Power Source: 9V Battery (6F22)

Recommendations

For professionals who require a versatile and durable multimeter, the UNI-T UT196 offers exceptional value with its high accuracy, extensive measurement capabilities, and robust safety features. Ideal for both indoor and outdoor use.
