Ubiquiti UniFi Dream Machine Beast – 25 Gbps IPS/IDS, 7500+ Clients, 1U Rackmount Cloud Gateway

The Ubiquiti UniFi Dream Machine Beast (UDM-Beast) is a high-performance all-in-one cloud gateway designed for large-scale networks. With 25 Gbps routing and IPS/IDS throughput, it supports over 7,500 concurrent clients, making it ideal for enterprise, campus, and service provider environments. The 1U rack-mountable form factor integrates a powerful quad-core ARM Cortex-A73 processor, 16 GB DDR4 RAM, and 128 GB eMMC storage, along with a dedicated HDD bay for UniFi Protect video recording. It features 10G SFP+ WAN and LAN ports, eight 2.5 GbE RJ45 LAN ports, and a 1.3-inch LCM color touchscreen for at-a-glance monitoring. Powered by the UniFi Network application, it provides advanced security features including stateful firewall, IPS/IDS, VPN, and VLAN support.

Advantages

Unmatched throughput of 25 Gbps for both routing and IPS/IDS ensures zero-compromise performance even under heavy loads. Scalable to support over 7,500 clients, making it future-proof for growing networks. Integrated UniFi applications (Network, Protect, Access, Talk) eliminate the need for separate controllers. Redundant power input via USP-RPS enhances reliability. The 1U rackmount design fits seamlessly into standard server racks.

Suitable for

• Large enterprises requiring high-density client support
• Educational campuses and hospitality venues
• Service providers and data centers
• Deployments requiring unified management of network, security, and video surveillance

Key specifications

• Processor: Quad-core ARM Cortex-A73 @ 2.2 GHz
• Memory: 16 GB DDR4
• Storage: 128 GB eMMC + 1x 3.5"/2.5" HDD bay (HDD not included)
• WAN: 1x 10G SFP+, 1x 2.5 GbE RJ45
• LAN: 1x 10G SFP+, 8x 2.5 GbE RJ45
• Routing Throughput: 25 Gbps (iPerf3)
• IPS/IDS Throughput: 25 Gbps
• Max Concurrent Clients: 7500+
• Display: 1.3" LCM Color Touchscreen
• Power: Internal 100W AC/DC PSU, redundant DC input (USP-RPS)

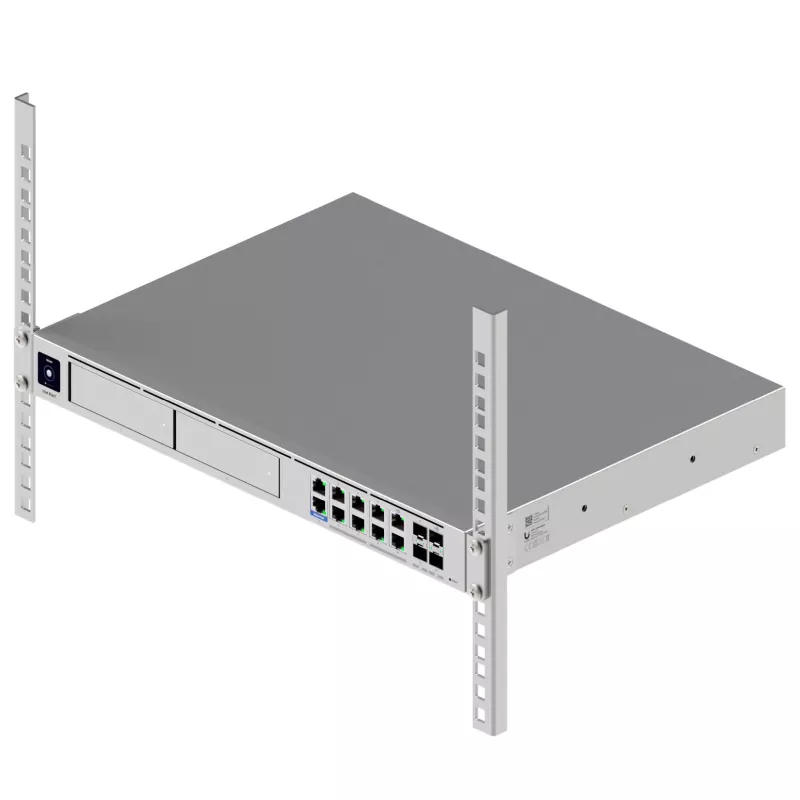

• Form Factor: 1U Rack-mountable
• Operating Temperature: -10 to 40°C
• Certifications: CE, FCC, IC

Recommendations

For maximum performance, pair the UDM-Beast with UniFi switches and access points. Use the USP-RPS for power redundancy. The built-in HDD bay supports up to one 3.5-inch SATA HDD for UniFi Protect NVR functionality (HDD sold separately).
