UBIQUITI NETWORKS Μονάδα πομποδέκτη Instant Optical Gpon Cpe

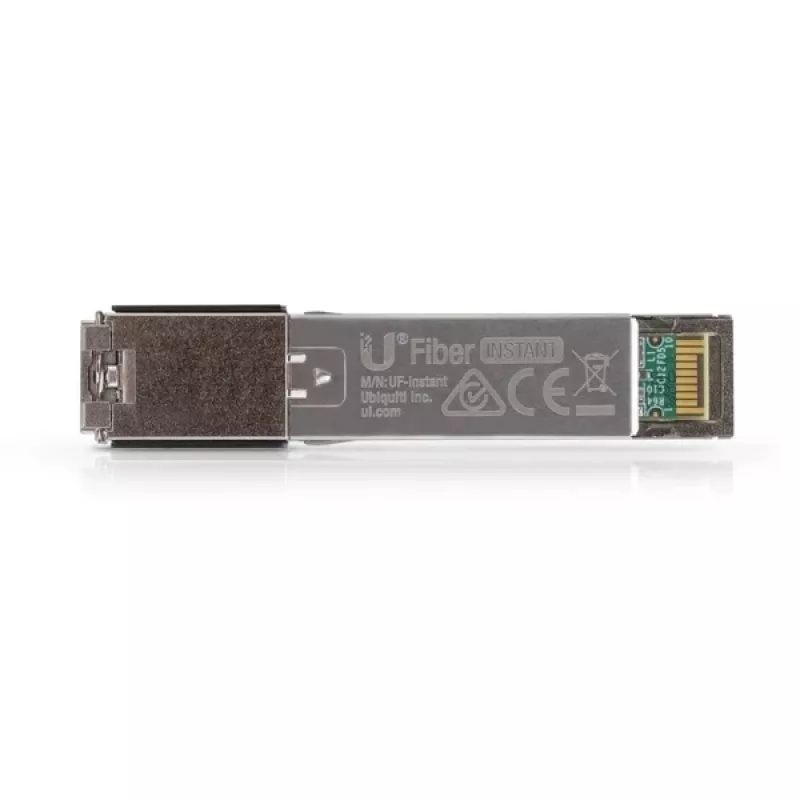

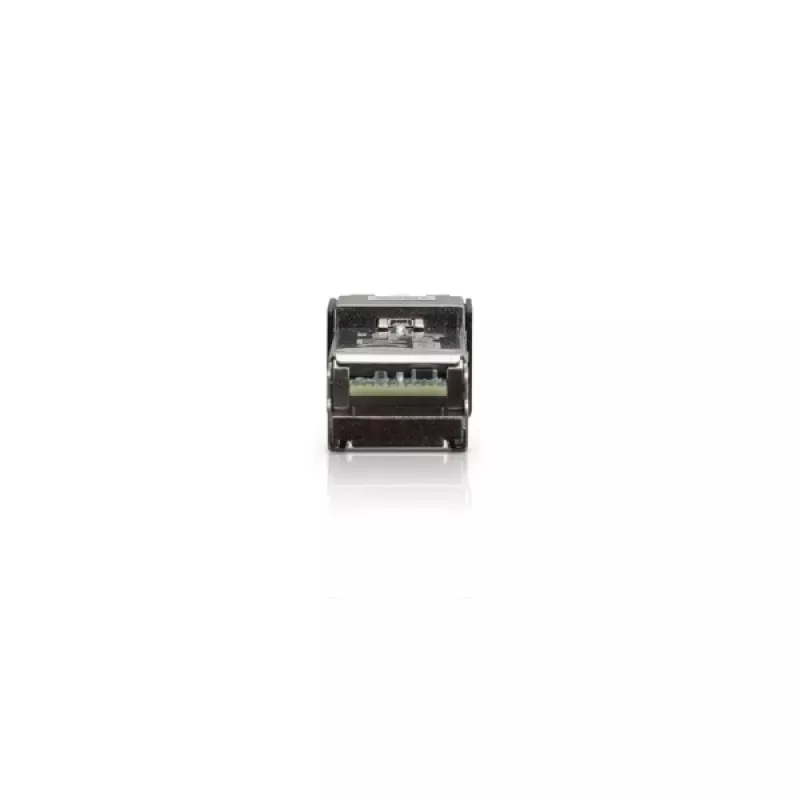

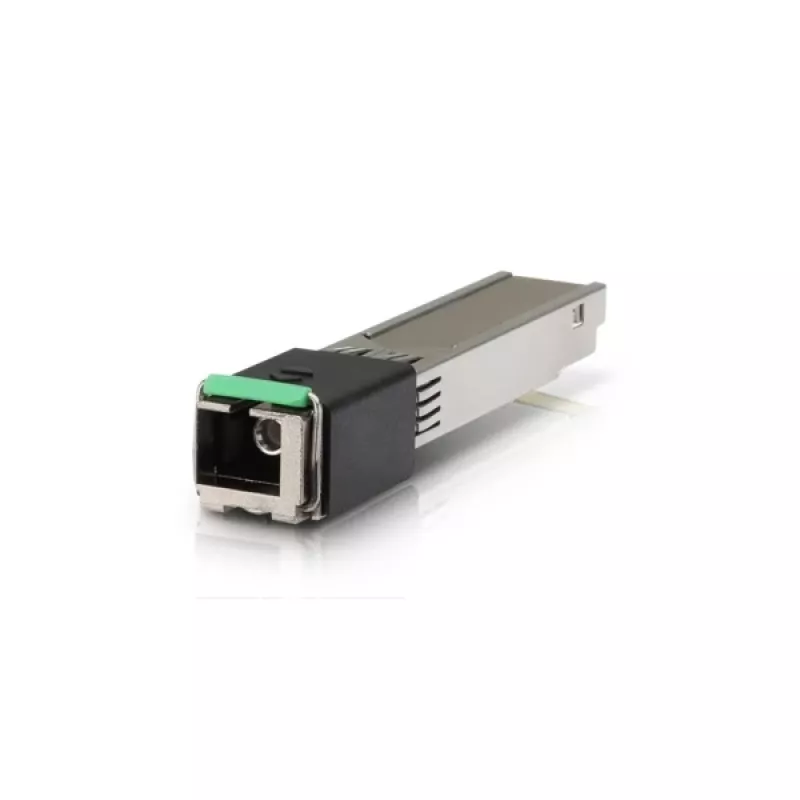

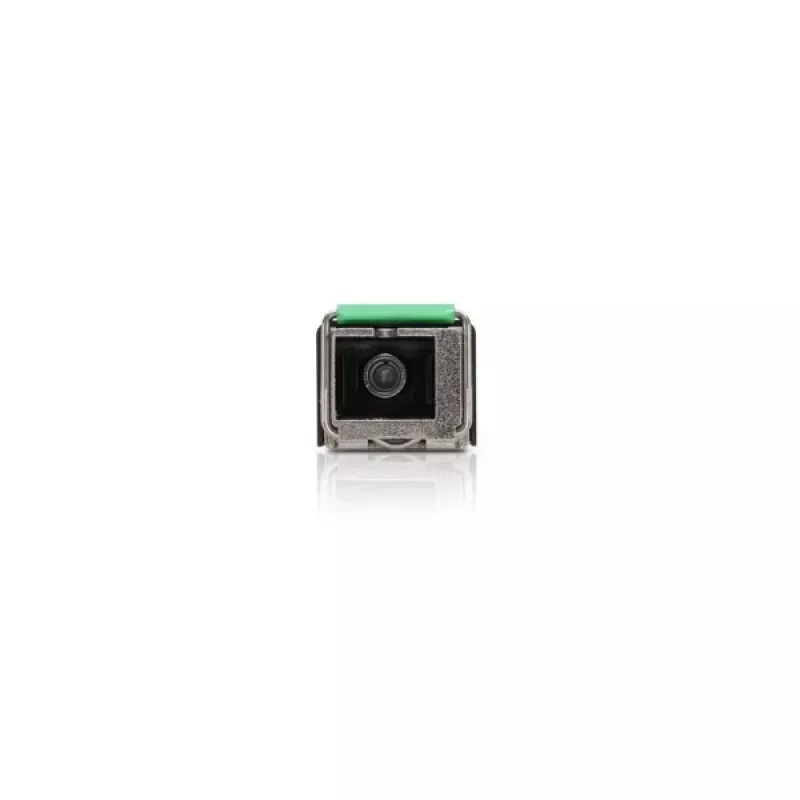

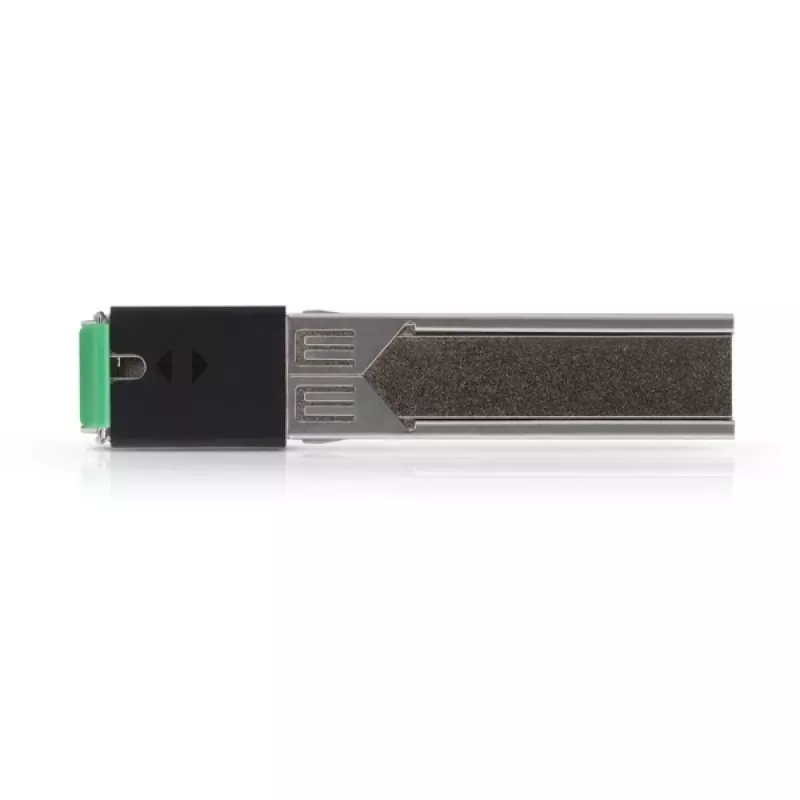

The Ubiquiti UF-Instant is a compact SFP transceiver module designed for GPON CPE applications. It supports a maximum data transfer rate of 2.488 Mbit/s, is powered from a standard SFP slot (3.3 V input) and has a typical power consumption of 2 W. The module has an SGMII Ethernet LAN interface in the SFP form factor and a small metallic black housing measuring 69.5 mm × 13.7 mm × 11.3 mm, making it suitable for space-constrained network equipment. It is certified to CE, FCC and IC standards.

Advantages

Compact SFP design allows direct installation into SFP ports without additional power adapters. Low typical power consumption (2 W) and standard 3.3 V input voltage simplify integration into existing network hardware. Certified compliance (CE, FCC, IC) ensures adherence to common regulatory requirements. The SGMII Ethernet LAN interface provides compatibility with devices expecting an Ethernet connection over the SFP form factor.

Suitable for

• Converting GPON optical connection to an SGMII Ethernet LAN interface
• Integration into routers, switches or CPE devices with SFP ports
• Deployments requiring a compact, low-power transceiver module

Key specifications

• Brand: UBIQUITI
• Model / MPN: UF-Instant
• Interface type: SFP (SGMII Ethernet LAN)
• Maximum data transfer rate: 2.488 Mbit/s
• Input voltage: 3.3 V
• Typical power consumption: 2 W
• Dimensions (W×D×H): 69.5 × 13.7 × 11.3 mm
• Weight: 0.03 kg
• Colour: Metallic, Black
• Certifications: CE, FCC, IC

How to use

Insert the UF-Instant module into an available SFP slot on compatible network equipment until it clicks into place. Ensure the host device supports SFP modules and the SGMII Ethernet interface. Provide a stable 3.3 V power source via the SFP slot; the module typically consumes around 2 W. Connect the Ethernet port or internal interface as required by the host device and configure the host system for GPON CPE operation according to its documentation.

Recommendations

Handle the module by its edges and avoid touching electrical contacts. Install and remove the transceiver with the host device powered down where possible. Use compatible SFP ports and check device firmware for compatibility notes before deployment.
