Τρυπάνι Brad-Point με βυθιστήρα Bosch 2608596394

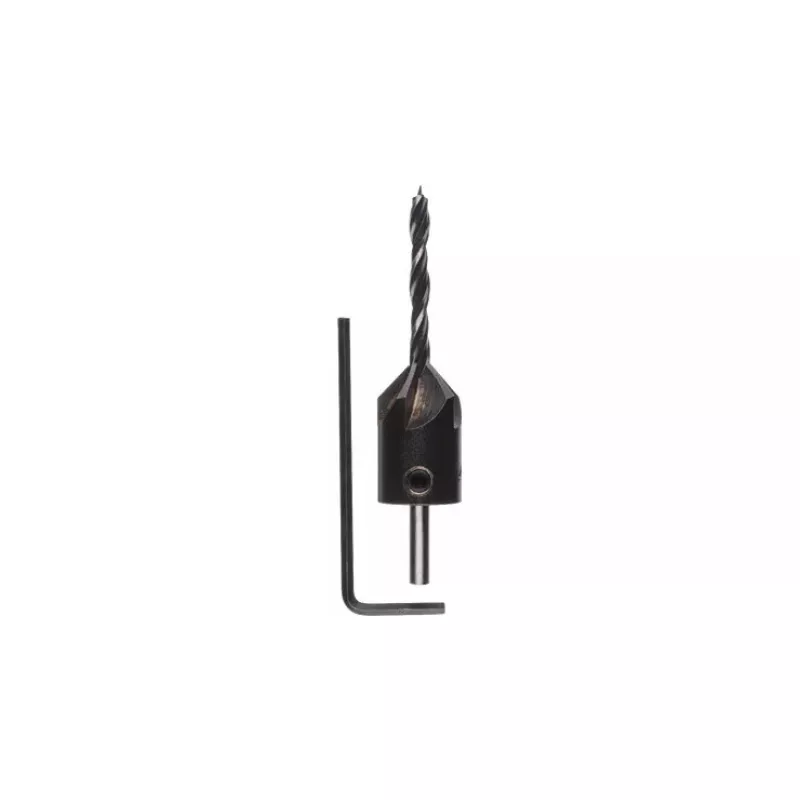

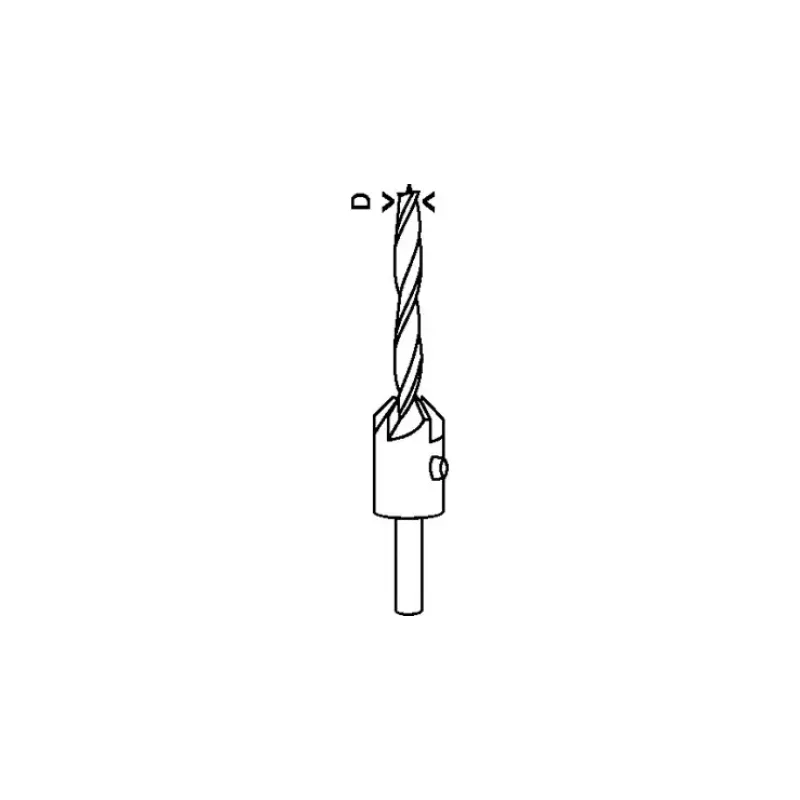

The Bosch Brad Point Drill Bits with Countersink (MPN 2608596394, EAN 3165140060004) combine a brad point drill bit and an arbour-mounted countersink to drill, countersink and deburr wood in a single operation. Made of tool steel, the multi-functional bit is suitable for hard and soft wood, laminated and non-laminated chipboard and plywood. The set includes two 7 mm diameter brad point bits with a 90° countersink angle and a hexagon pin key; the design also allows using the countersink as a depth stop. Intended for use with drill drivers and drill stands, these Bosch bits are made for precision woodworking tasks requiring clean, flush finishes.

Advantages

The integrated brad point and arbour-mounted countersink perform drilling, countersinking and deburring in one step, reducing tool changes. Constructed from tool steel with five cutting edges and a 90° countersink angle, the bit yields clean, accurate holes and reliable countersinks. The hexagon pin key included simplifies mounting and removal. The design works as a depth stop for consistent hole depth and countersink depth during repetitive work.

Suitable for

• Drilling and countersinking in hard and soft wood
• Work on laminated and non-laminated chipboard
• Plywood drilling and finishing
• Use with hand drill drivers and drill stands

Key specifications

• Brand: Bosch
• MPN: 2608596394
• EAN: 3165140060004
• Diameter: 7 mm
• Material: Tool steel
• Countersink angle: 90°
• Number of cutting edges: 5

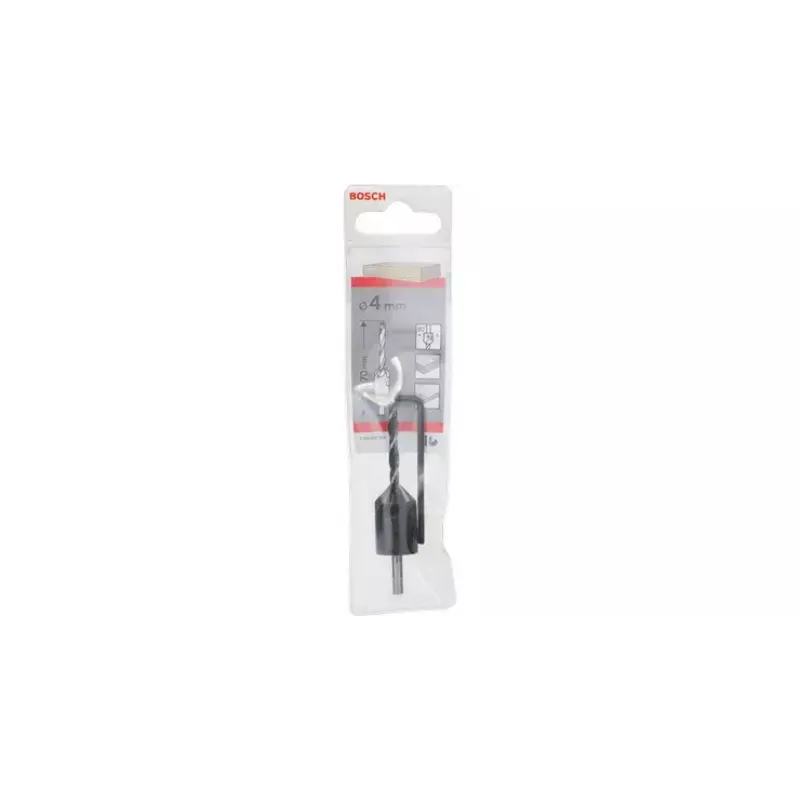

• Set contents: 2 brad point drill bits with countersink, hexagon pin key, arbour-mounted countersink

How to use

Fit the brad point drill bit and arbour-mounted countersink into the chuck of a drill driver or into a drill stand according to the tool manufacturer's instructions. Secure the arbor with the included hexagon pin key. Position the brad point on the workpiece and start drilling at a low speed to engage the point, then increase speed as needed while maintaining steady pressure. The tool will drill the hole, create a 90° countersink for a flush screw head, and deburr the hole in a single pass. Use the countersink as a depth stop by monitoring penetration and adjusting feed until the desired depth and countersink finish are achieved.

Recommendations

Use appropriate clamping and eye protection when working with drill drivers or drill stands. For best results, test on a scrap piece of the same material to confirm feed rate and depth, and avoid excessive speed or pressure to prevent burning or tear-out on delicate laminates.
