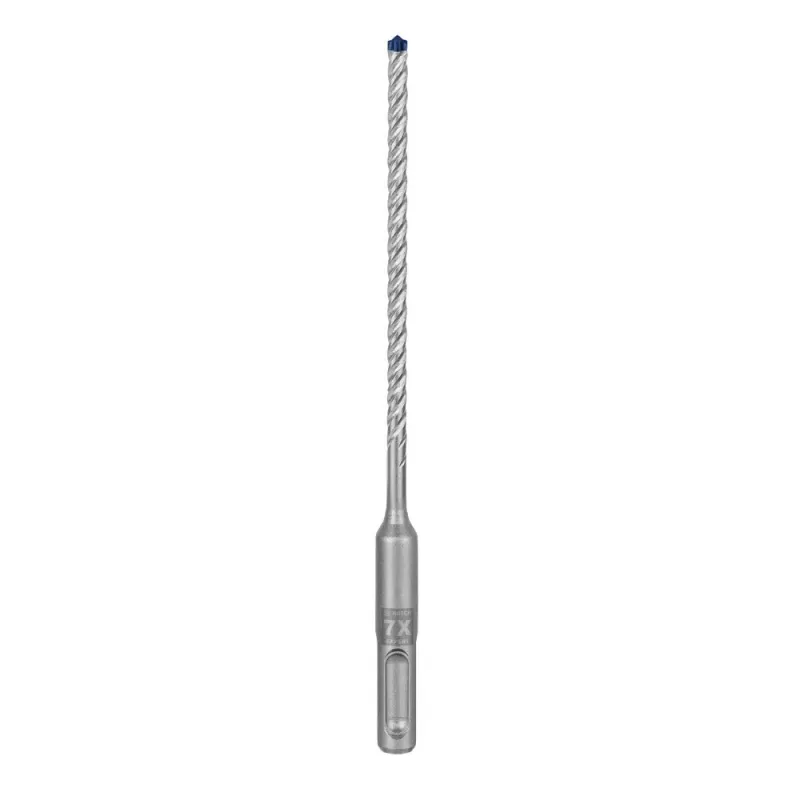

Τρυπάνι Bosch SDS plus-7X 5 mm 165 mm

The Bosch EXPERT SDS plus-7X 5 mm x 165 mm hammer drill bit is designed for use with SDS plus rotary hammers. It features a Full Carbide Head and Bosch Carbide Technology to provide enhanced durability and reliable performance when drilling into reinforced concrete, cured concrete, hard stone and similar materials. The 5 mm diameter and 165 mm overall length make it suitable for common fixing and installation tasks where a compact, long-life masonry bit is required.

Advantages

The Full Carbide Head uses a 4-cutter design manufactured from a single piece of carbide, reducing the risk of jamming on rebar and improving impact resistance. Bosch Carbide Technology at the tip and a reinforced welding connection increase lifetime up to three times compared with standard bits. The bit is specifically engineered for rotary hammer drilling with SDS plus shanks to ensure consistent performance and durability on tough substrates.

Suitable for

• Drilling holes in reinforced concrete
• Drilling in cured and hardened concrete
• Drilling in hard natural stone such as granite and gneiss
• Fixings and installation work with SDS plus rotary hammers

Key specifications

• Brand: Bosch
• Model: EXPERT SDS plus-7X

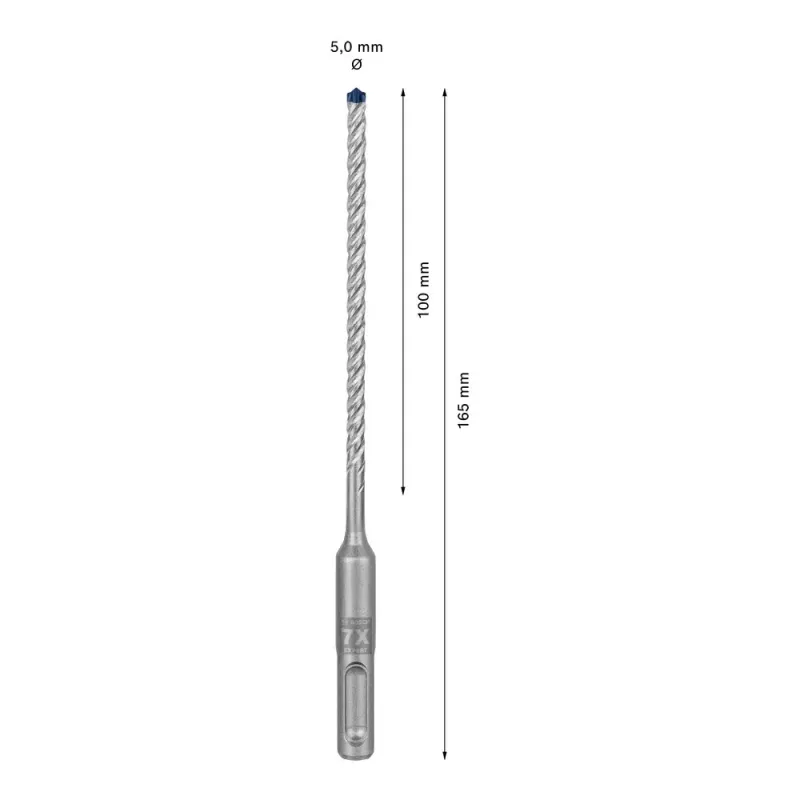

• Diameter: 5 mm
• Overall length: 165 mm
• Shank type: SDS plus
• MPN: 2608900060
• EAN: 4059952531335

How to use

Insert the SDS plus shank into the rotary hammer’s chuck until it locks. Select the hammer drilling mode, align the bit with the intended drilling point and apply steady pressure while allowing the tool’s hammering action to do the work. Withdraw the bit periodically to clear dust and debris when drilling deeper holes. Use appropriate rotation speed and feed rate recommended by the rotary hammer manufacturer for a 5 mm masonry bit.

Recommendations

Use appropriate personal protective equipment (eye protection, gloves, dust mask) and ensure the workpiece is secured. When encountering rebar, reduce feed pressure and allow the carbide head to cut through without forcing; if excessive resistance occurs, stop and inspect. Store the bit dry to prevent corrosion of the shank and prolong service life.
