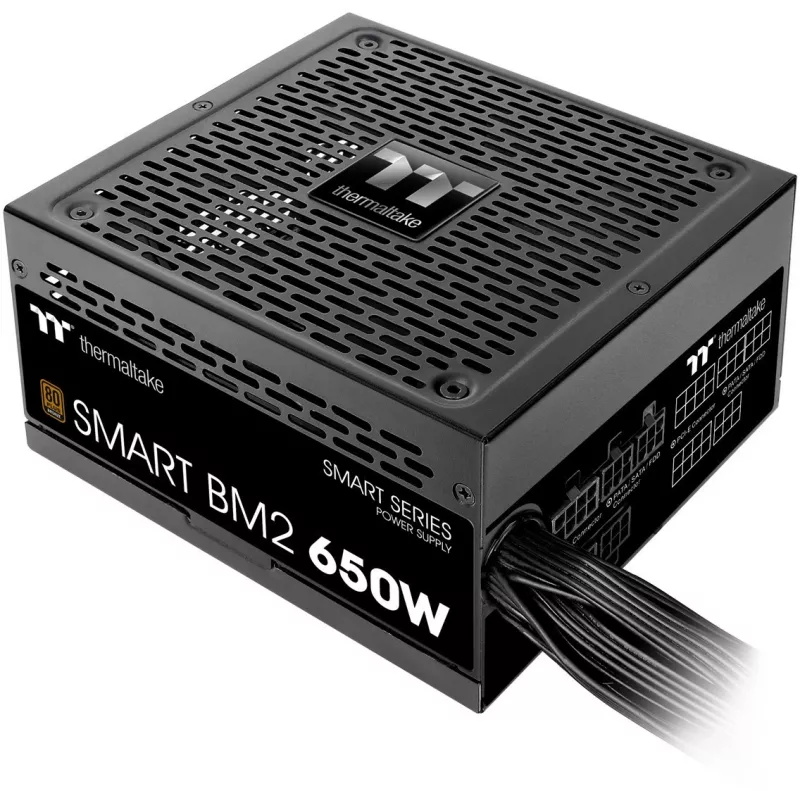

Τροφοδοτικό Thermaltake Smart BM2 650W

Smart BM2 650W - TT Premium Edition is an 80 PLUS Bronze certified power supply designed for desktop PCs. The 650W model delivers up to 85% efficiency and continuous, stable power at 40°C. It features a 140mm rifle bearing fan, high-quality Japanese main capacitors, semi-modular flat cables and a DC-to-DC design to provide reliable voltage conversion and consistent output for modern systems.

Advantages

The Smart BM2 650W combines quiet cooling with stable electrical performance. Its large 140mm rifle bearing fan reduces noise while maintaining effective airflow. Japanese main capacitor improves durability and long-term stability. Semi-modular flat cables simplify installation and improve internal airflow. DC-to-DC conversion and a high-amperage single +12V rail ensure steady voltages under varying loads. The unit is Intel C6/C7 states ready for better energy savings.

Key specifications

• Power output: 650W
• Certification: 80 PLUS Bronze (up to 85% efficiency)
• Fan: 140mm rifle bearing
• Capacitors: Japanese main capacitor
• Design: Semi-modular flat cables with sleeve
• Topology: DC-to-DC conversion
• Rail configuration: Single +12V high-amperage rail
• Compatibility: Intel C6/C7 states ready

How to use

Install the Smart BM2 650W into a compatible ATX chassis, securing it with the provided screws. Connect the 24-pin ATX main connector, the CPU 4+4 pin connector and the required PCIe and SATA cables from the semi-modular harness to your motherboard, graphics card(s) and drives. Use only the supplied flat cables and ensure connectors are fully seated. Maintain sufficient case airflow and position the 140mm fan to intake or exhaust according to your chassis layout. Verify BIOS power settings to enable Intel C6/C7 states if energy savings are desired.

Recommendations

For stable performance, pair this 650W power supply with mid- to high-range single GPU systems and ensure the total system power draw stays below the unit’s continuous rating. Periodically check cable connections and keep the PSU intake free of dust to maintain cooling efficiency and longevity.
