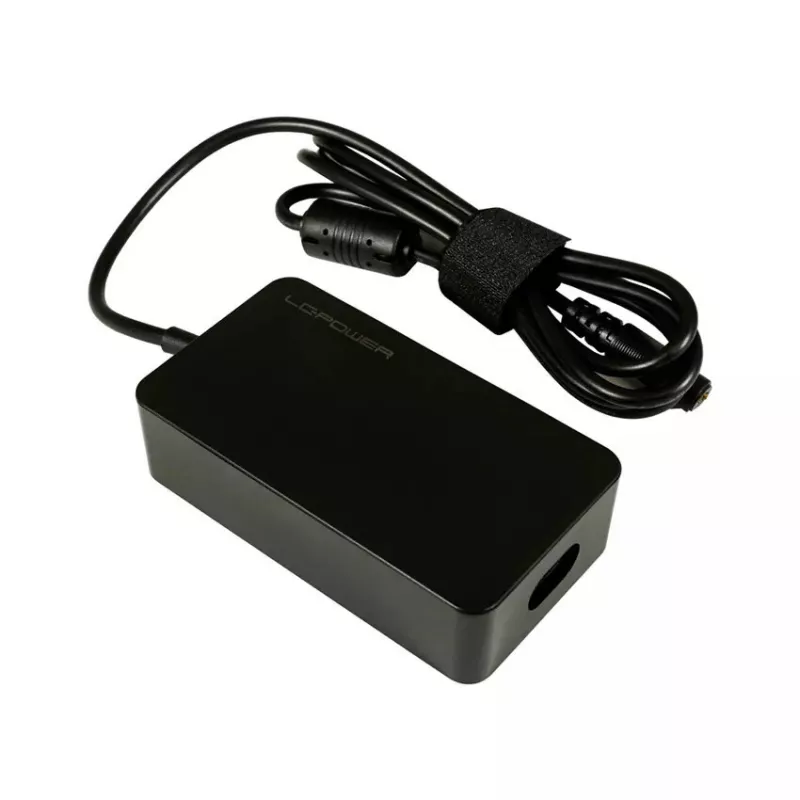

Τροφοδοτικό Adapter LC-Power LC-NB-PRO-45

Universal multi-range notebook power supply that can be used with almost any notebook on the market. with 10 adapter plugs Multi-range output voltage: 18.5-20V DC High efficiency of up to 90% Stable output, low ripple Safety circuits: Over current protection (OCP), overload protection (OLP), over voltage protection (OVP), over heat protection (OTP), short circuit protection (SCP). Compatible with many models from e.g.: Acer, Asus, BenQ, Compaq, Dell, Fujitsu, HP, Lenovo, Samsung, Toshiba Power supply type: Notebook adapter Input voltage: 110-240 V Input frequency: 50-60 Hz Output power: 45.0 W Output voltage: 18.5-20.0 V Output current: 2.25-2.43 A Standby consumption: Dimensions (product): 90 x 50 x 23 mm Dimensions (packaging): 185 x 110 x 37 mm Weight (product/total): 0.284 / 0.351 kg Cable length: approx. 120 cm Cable extension: approx. 150 cm Material: plastic Colour: black Connector overview: Plug-No. Output Voltage Plug size Compatible Notebook J 18,5 V 4,8 x 1,7 mm 2,43 A max. / Compaq, HP B 19,0 V 5,5 x 1,7 mm 2,73 A max. / Acer L 19,0 V 5,5 x 2,5 mm 2,73 A max. / Toshiba, Lenovo, BenQ, Fujitsu, Dell, Compaq, HP, Asus, Gateway, Averatec Q 19,5 V 7,4 x 5,0 mm 2,31 A max. / Dell U 20,0 V 11,0 x 4,6 mm 2,25 A max. / Lenovo Y 19,0 V 4,0 x 1,7 mm 2,73 A max. / HP F 19,0 V 4,0 x 1,35 mm 2,73 A max. / Asus N 19,0 V 3,0 x 1,1 mm 2,73 A max. / Samsung P 19,5 V 4,5 x 3,0 mm 2,31 A max. / Dell S 19,0 V 5,5 x 2,1 mm 2,73 A max. / Asus, Acer

• Customs tariff number: 8504409090
• Plug type: DC connector (10 different), USB-A
• Height packaging: 0.037m
• Packaging volume: 0.0009m³
• Output voltage: 18.5 - 20.0V
• Max. output power: 45.0W
• Length packaging: 0.458m
• Width packaging: 0.144m
• Manufacturer information: Silent LC Power
  Formerweg 8-12
  47877 Willich
  Deutschland
  [email protected]
• Country of origin: Taiwan
• Im Angebot: No
• Stark reduziert: No
• Brand: LC-Power
• Colour: Black
• Manufacturer No.: LC-NB-PRO-45
• EAN Barcode: 4260070128851
• Weight: 0.351kg

How to use

Connect the adapter to a compatible laptop power input and plug the mains lead into a suitable 110–240V outlet. Ensure the output connector matches the laptop’s power jack and verify the laptop accepts a 45W power source. Use the adapter indoors and avoid exposing it to moisture, extreme temperatures, or heavy impact.

Recommendations

Use the LC-Power LC-NB-PRO-45 as a direct replacement for original adapters with similar output specifications; check connector compatibility before use and disconnect the adapter from mains when not in use to prolong service life.
