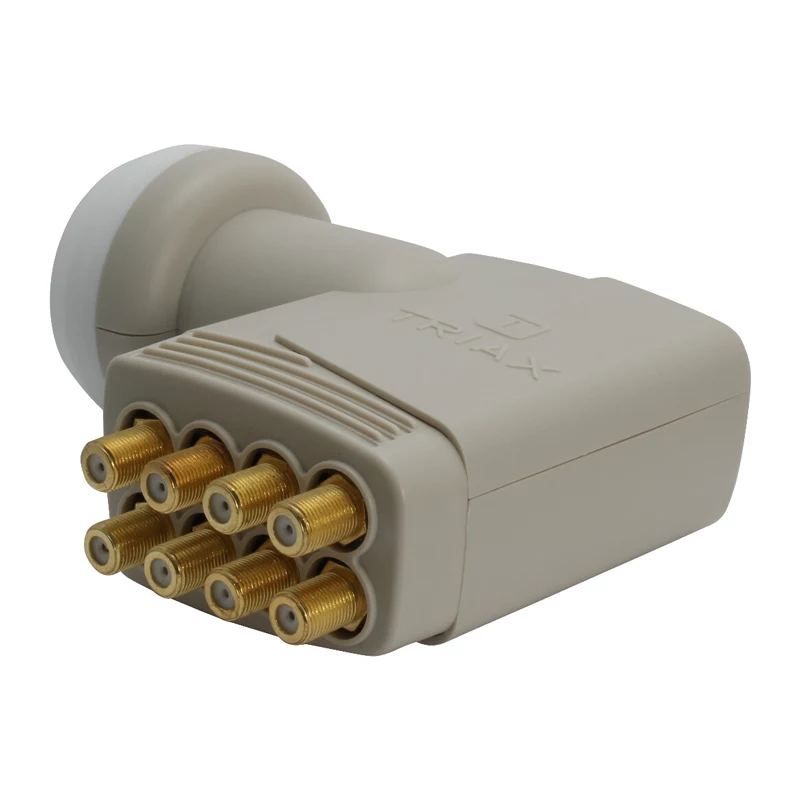

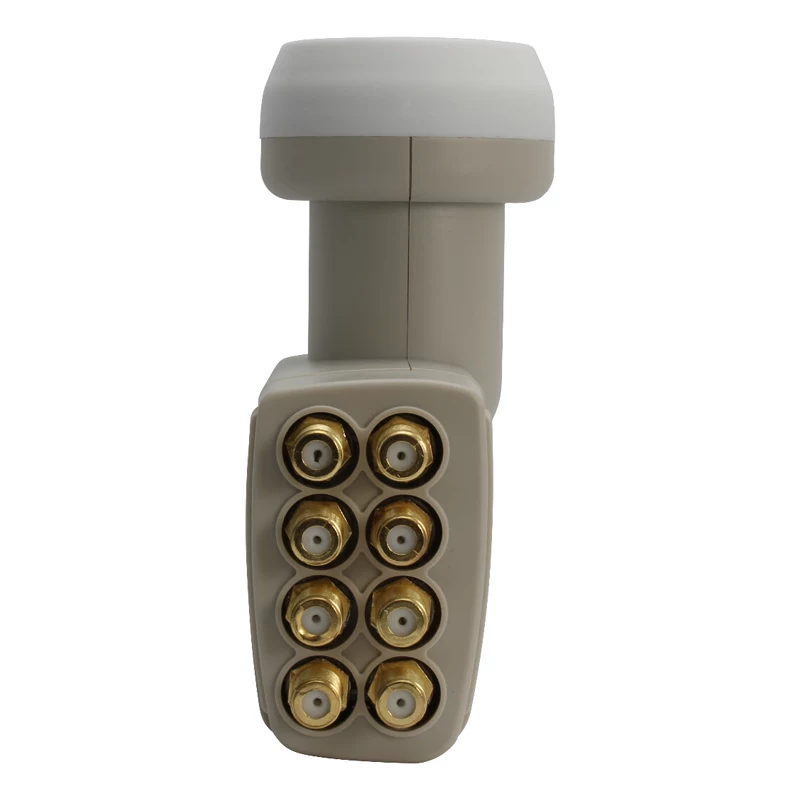

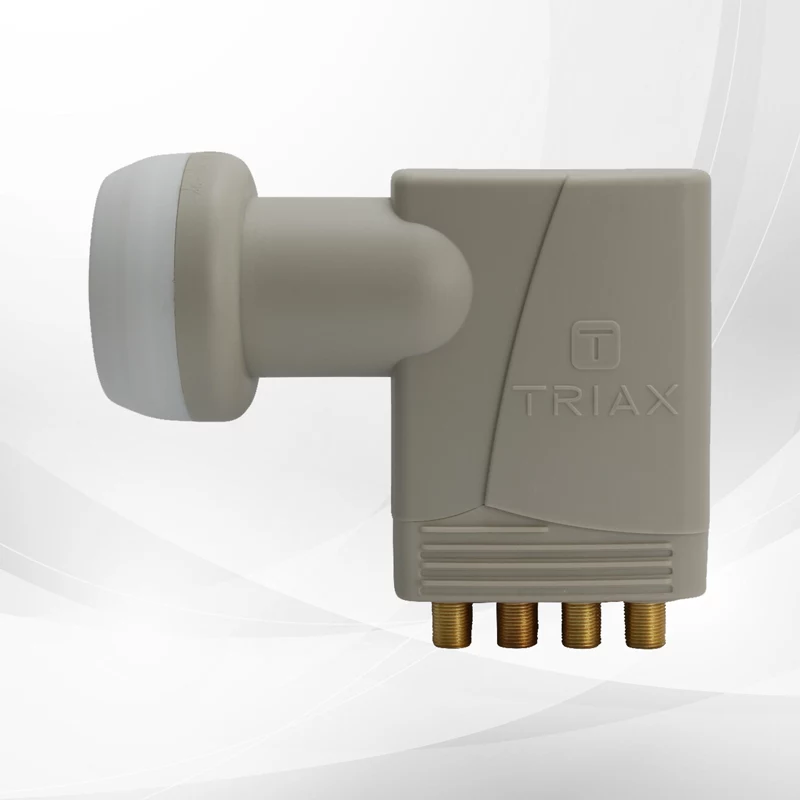

Triax Universal Octo LNB TOO 408 Gold - 8 έξοδοι, 8 συνδρομητές 304878

For satellite distribution systems requiring eight independent receiver connections from a single dish, the Triax Universal Octo LNB TOO 408 Gold provides a reliable, high-performance solution. This LNB supports eight participants simultaneously, making it ideal for multi-dwelling units, larger residential installations, or any setup where multiple set-top boxes need access to satellite signals without complex switching infrastructure.

Who is it for

This Octo LNB is designed for installers and system integrators working on medium to large satellite reception projects. It suits apartment buildings, hotels, and homes with multiple receivers, where each output must deliver the full universal LNB frequency range independently.

Main features

• Universal Octo LNB with 8 independent F-type outputs
• Supports 8 participants or receivers from one dish
• Low noise figure of 0.1 dB for excellent signal quality
• Wide input frequency range: 10.7 - 12.75 GHz

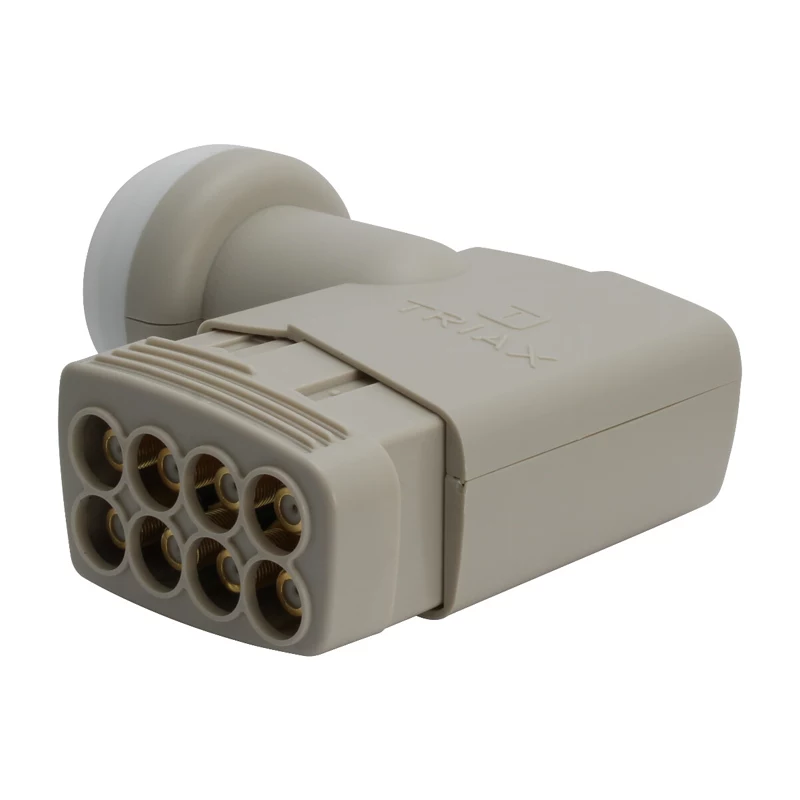

• Integrated pull-down cover protects F-connectors from weather
• Gold-coloured housing for corrosion resistance and visibility

Specifications

• LNB Type: Universal Octo LNB
• Number of Outputs: 8
• Input Frequency Range (Low Band): 10.7 - 11.7 GHz
• Input Frequency Range (High Band): 11.7 - 12.75 GHz
• Output Frequency Range (Low Band): 950 - 1950 MHz
• Output Frequency Range (High Band): 1100 - 2150 MHz
• LO Frequency (Low Band): 9.75 GHz
• LO Frequency (High Band): 10.6 GHz
• Noise Figure: 0.1 dB
• Conversion Gain: 50 - 62 dB
• Cross Polarization Isolation: >20 dB
• Current Consumption: Max 180 mA
• Feed Diameter: 40 mm
• Connector Type: F-type (female)
• Operating Temperature: -30 to +60 °C
• Polarization Switching Voltage: 13V (Vertical) / 18V (Horizontal)
• Band Switching Signal: 0 kHz (Low Band) / 22 kHz (High Band)

Tips

Ensure the LNB is mounted with the correct skew angle for your location to optimise cross-polarization isolation. The integrated weather cover should be pulled down over the F-connectors after installation to prevent moisture ingress and signal degradation.
