TP-Link VIGI βίντεο εγγραφής δικτύου 4 καναλιών PoE+

VIGI NVR1004H-4P is a 4-channel PoE network video recorder designed for small business surveillance. It supports up to 8MP camera input, 4K HDMI output, 16MP decoding capacity and includes four dedicated PoE+ ports (total PoE budget 53 W) to power and connect IP cameras using a single Ethernet cable. The device offers continuous 24/7 recording, up to 10 TB local storage, ONVIF compatibility for third-party cameras, and remote monitoring via the VIGI app, web UI or VIGI Security Manager.

Advantages

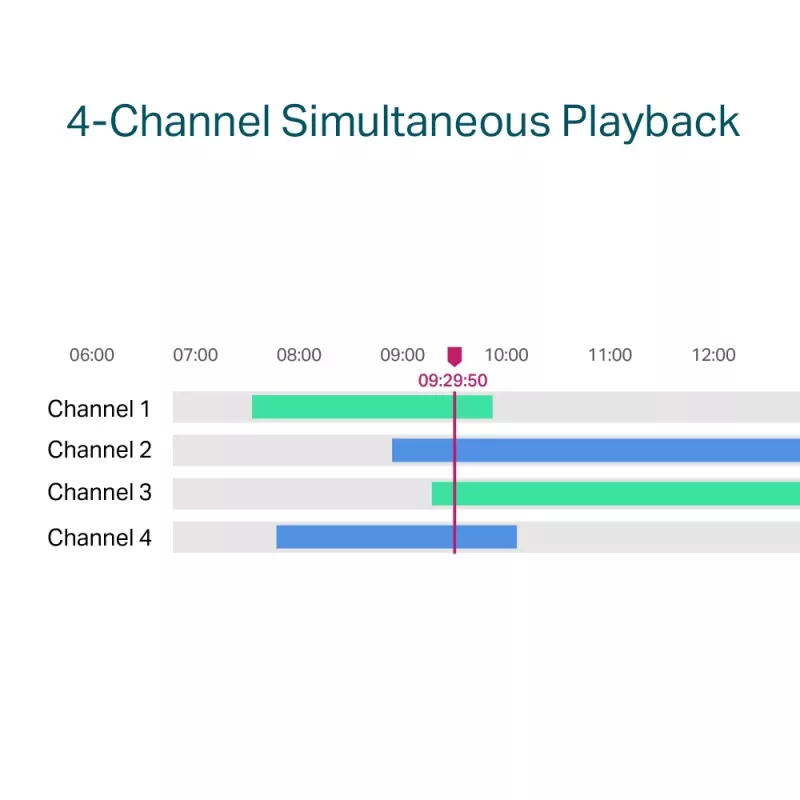

The NVR provides simultaneous 4-channel playback for quicker footage review, H.265/H.264 compression to save disk space and reduce network load without degrading image quality, and plug-and-play support for new VIGI IP cameras. Built-in two-way audio enables voice intercom while monitoring. With 80 Mbps video access bandwidth, the unit is suitable for managing multiple high-definition cameras and supports flexible installation scenarios such as retail, warehouses, restaurants and financial institutions.

Key specifications

• Model: VIGI NVR1004H-4P
• Channels: 4-channel PoE NVR
• PoE ports: 4 × 10/100 Mbps PoE+ (up to 30 W per port, total budget 53 W)
• Video output: 4K HDMI
• Decoding capacity: up to 16 MP
• Max camera resolution supported: up to 8 MP per channel
• Simultaneous playback: 4-channel
• Compression: H.265/H.264 (efficient compression to save disk space)
• Storage: supports up to 10 TB HDD
• Bandwidth: 80 Mbps video access bandwidth
• Compatibility: ONVIF-compatible with third-party IP cameras
• Remote access: VIGI app, web UI, VIGI Security Manager
• Audio: two-way audio support

How to use

Connect IP cameras to the PoE ports using CAT5e/CAT6 Ethernet cables; the NVR will provide both power and data connectivity. Attach a monitor to the HDMI output to view live feeds and recordings. Use the web UI, VIGI app or VIGI Security Manager to add ONVIF cameras, configure recording schedules, set playback and export footage. Install a compatible HDD (up to 10 TB) for local storage and configure compression and retention policies to manage disk usage. Use the two-way audio feature through the app or web interface to communicate via connected cameras that support audio.

Recommendations

For reliable operation, use quality PoE cables and switches, keep firmware updated, and verify camera compatibility via ONVIF; for businesses, configure continuous recording or scheduled recording according to retention needs and ensure the HDD capacity matches the planned retention period.
