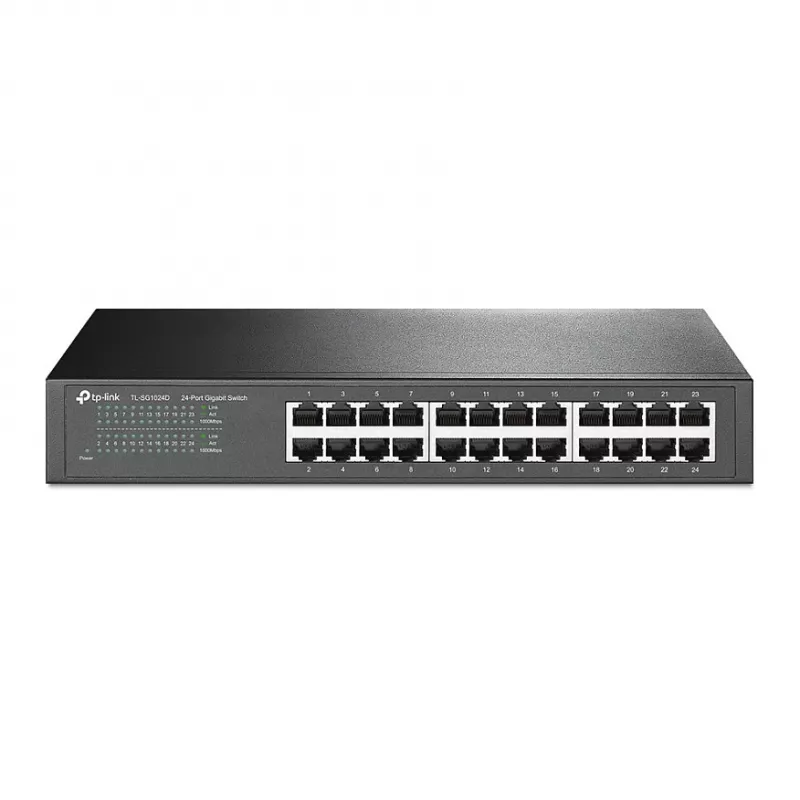

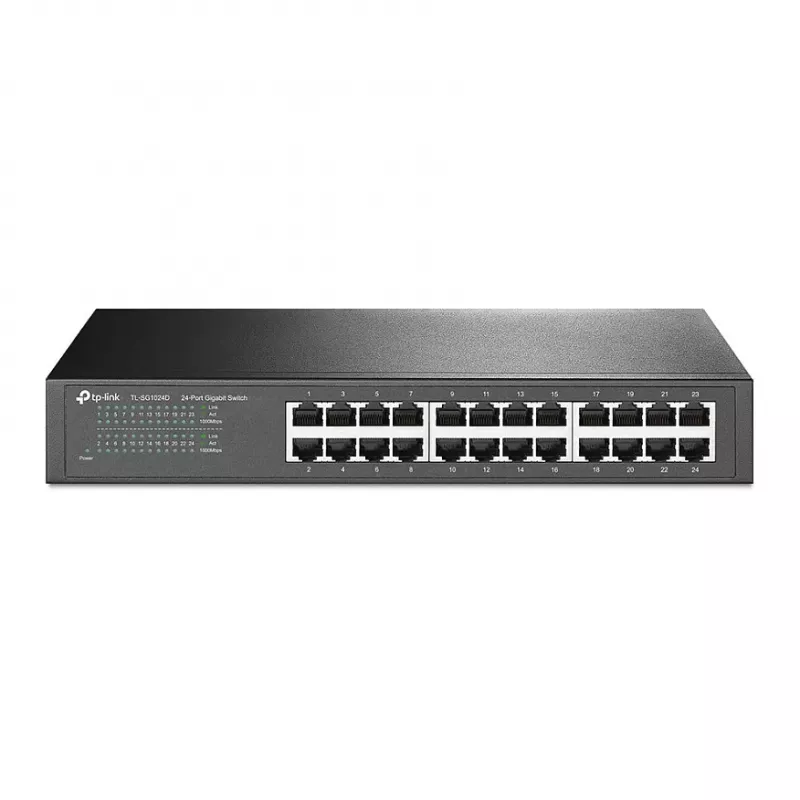

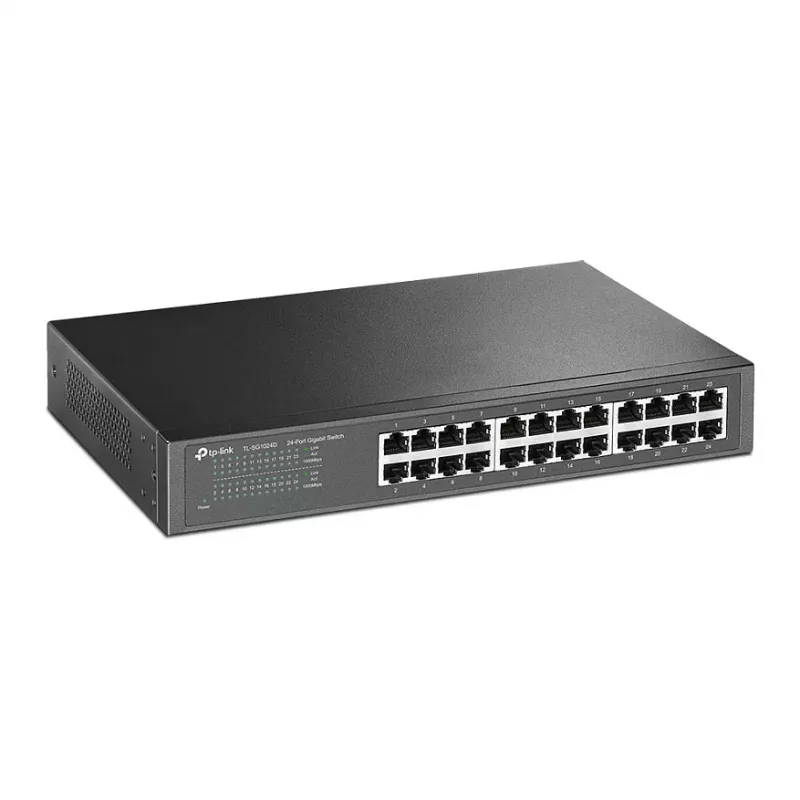

TP-Link TL-SG1024D 24-Port Gigabit Ethernet Switch Desktop/Rackmount

The TP-Link TL-SG1024D is a high-performance 24-port Gigabit Ethernet switch designed for small and medium-sized businesses, offering reliable and energy-efficient network connectivity. With its fanless design, it operates silently, making it ideal for noise-sensitive environments. The switch supports auto-negotiation and auto-MDI/MDIX on all ports, simplifying installation and ensuring seamless integration with existing network equipment.

Advantages

This switch provides a cost-effective solution for expanding your network with 24 Gigabit ports, delivering up to 48 Gbps switching capacity. Its energy-efficient technology (IEEE 802.3az) reduces power consumption without compromising performance. The plug-and-play design requires no configuration, making it easy to deploy. Additionally, the sturdy metal casing supports both desktop and rackmount installation, offering flexibility for various setups.

Suitable for

• Small and medium-sized businesses needing to connect multiple devices such as computers, printers, and servers
• Home offices requiring reliable high-speed network expansion
• Environments where silent operation is essential, such as libraries or open-plan offices
• Network upgrades from Fast Ethernet to Gigabit Ethernet for improved data transfer speeds

Key specifications

• 24 Gigabit Ethernet ports (10/100/1000 Mbps)
• Switching capacity: 48 Gbps
• Forwarding rate: 35.7 Mpps
• MAC address table: 8K entries
• Jumbo frame support: 10 KB
• Fanless design for silent operation
• Desktop and rackmount (1U) form factor

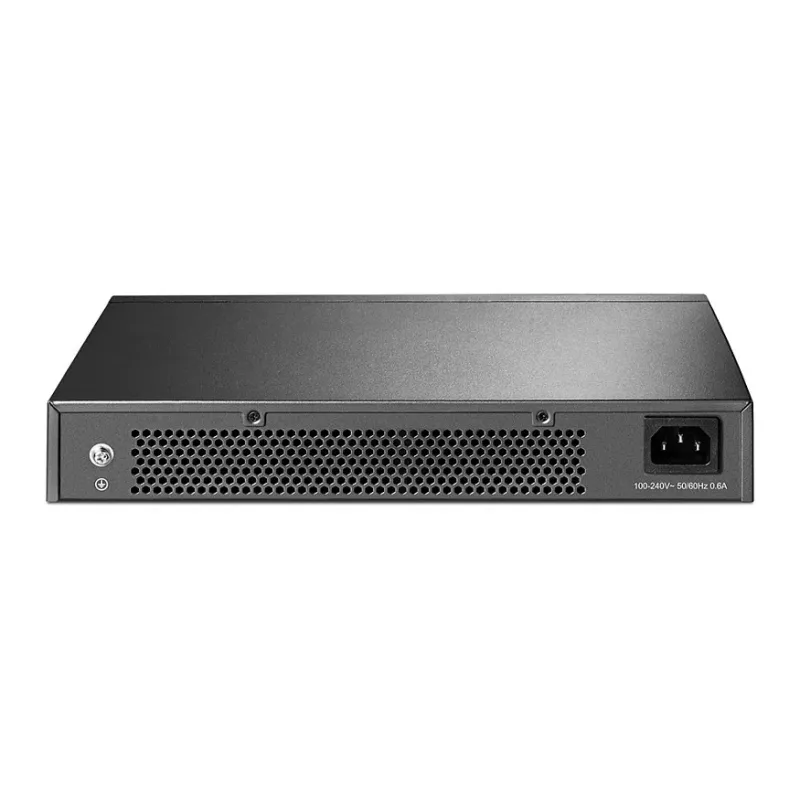

• Internal power supply: 100-240VAC, 50/60Hz
• Max power consumption: 14.7 W
• Compliant with IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
• LED indicators: Power, 1000M, Link/Act
• Certifications: CE, FCC, RoHS

Recommendations

For optimal performance, use Cat5e or higher Ethernet cables to fully utilize Gigabit speeds. This switch is ideal for connecting workstations, IP cameras, and access points in a small to medium network. Its energy-saving features help reduce operational costs while maintaining high throughput.
