TP-Link Omada IES208G Διακόπτης δικτύου Managed Gigabit Ethernet (10/100/1000)

The TP-Link Omada IES208G is a managed Gigabit Ethernet switch with six RJ45 ports and two RJ45/SFP combo ports, offering a switching capacity of 16 Gbit/s and a MAC address table of 8,000 entries. Designed for industrial environments, it supports a wide DC input range (9.6–60 V), 1+1 redundant power input, DIN-rail or wall mounting, and operates reliably across a wide temperature range.

Advantages

The switch provides enhanced networking stability and security through dual power inputs and industrial-grade protections including 6 kV lightning protection and an operating temperature range from -40 to 75 °C. Centralized management is available via Omada Cloud Web or the Omada app, and the durable IP40 aluminum casing with multiple mounting options simplifies deployment in demanding locations. Basic L2 features such as VLAN, QoS, and STP/RSTP support allow traffic segmentation and reliable switch operation.

Suitable for

• Small to medium industrial networks requiring managed Gigabit switching
• Remote or harsh environments needing wide DC power range and redundancy
• Edge deployments on DIN-rail or wall mount in cabinets and control rooms

Key specifications

• Switch type: Managed

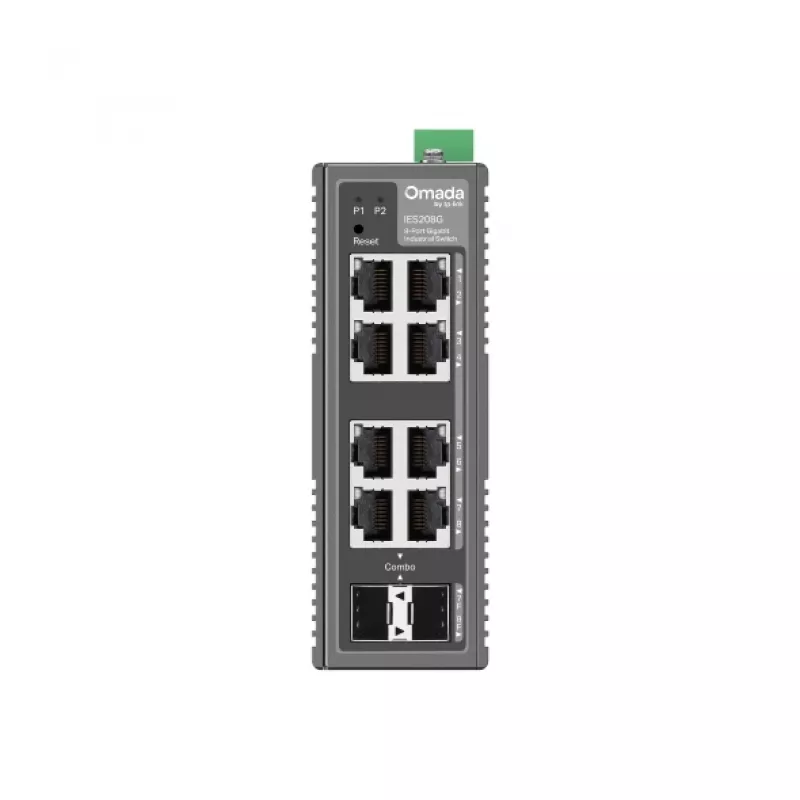

• Ports: 6 × Gigabit RJ45 + 2 × RJ45/SFP combo
• Switching capacity: 16 Gbit/s
• MAC address table: 8,000 entries
• DC input voltage: 9.6–60 V, 1+1 redundant power input
• Operating temperature: -40 to 75 °C
• Protection: 6 kV lightning protection

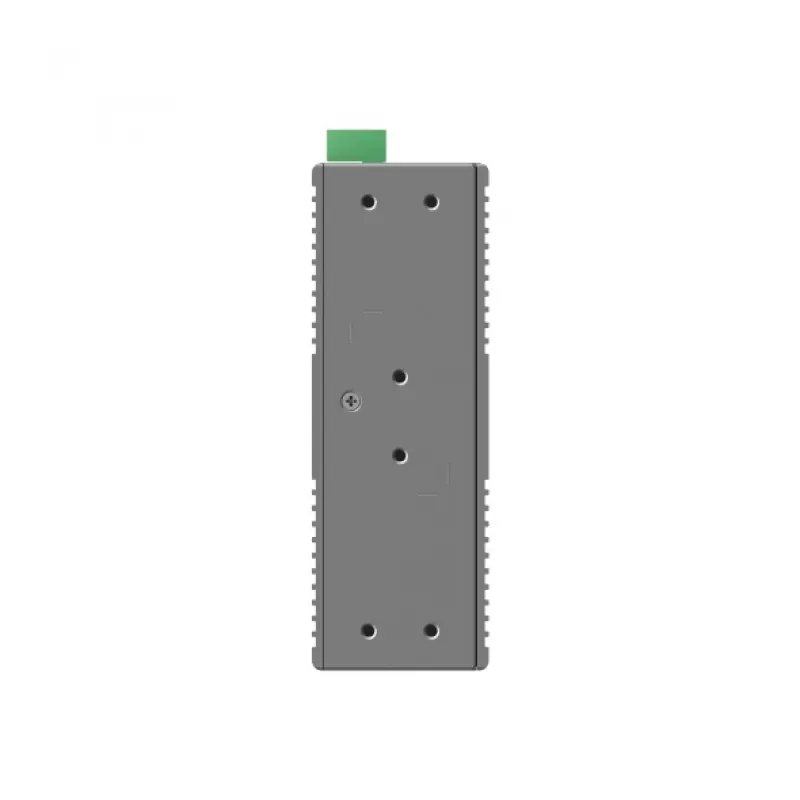

• Form factor: IP40 aluminum casing, DIN-rail / wall-mount
• Supported standards: IEEE 802.1D/802.1p/802.1w, IEEE 802.3/802.3u/802.3ab/802.3x

How to use

Mount the switch on a DIN-rail or secure it to a wall surface using the included brackets. Connect DC power sources to the dual power input ports to enable 1+1 redundancy and apply a suitable DC voltage within the 9.6–60 V range. Connect network devices to the Gigabit RJ45 ports or use the combo SFP ports for fiber links. Access the web-based management interface or the Omada app to configure VLANs, QoS, STP/RSTP and other Layer 2 settings, and register the device to Omada Cloud for centralized monitoring and firmware updates.

Recommendations

Use two independent DC power supplies for true redundancy, configure VLANs and QoS to separate critical traffic, and register the switch in Omada Cloud for centralized management, monitoring, and timely firmware maintenance.
