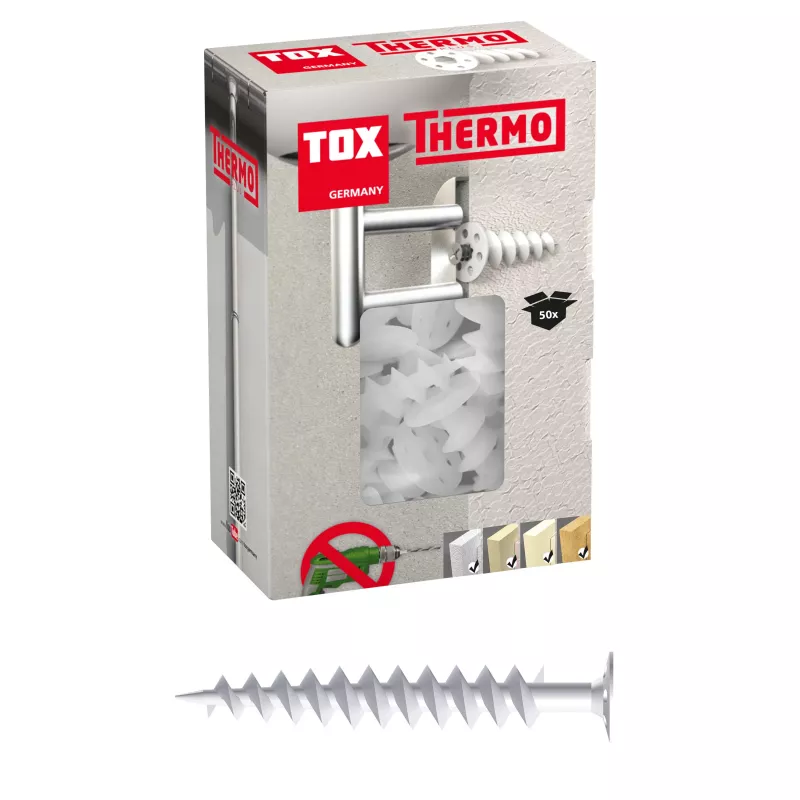

TOX Θερμομονωτικό ούπα 50 mm, 50 τεμ.

Insulation dowel for fastening insulation materials to concrete, solid brick, perforated brick, and aerated concrete. The polyamide construction with a flat head provides a secure hold and low thermal bridging.

Advantages

Hammer-in installation for quick and easy mounting. The dowel is suitable for insulation thicknesses up to 20 mm in solid substrates. Corrosion and UV resistant for long-term durability.

Suitable for

• Concrete
• Solid brick
• Perforated brick
• Aerated concrete (AAC)

Key specifications

• Dowel length: 50 mm
• Dowel diameter: 8 mm
• Drill hole diameter: 8 mm
• Minimum drill hole depth: 60 mm (concrete/solid brick)
• Minimum anchorage depth: 30 mm (concrete/solid brick)
• Thermal bridge value (χ-value): 0.002 W/K
• ETA approval: ETA-11/0200
• Application temperature range: -40°C to +80°C

Recommendations

Use with an 8 mm drill bit and a hammer. For insulation thicknesses over 20 mm, choose a longer dowel.
