Θήκη FTTH Digitus DN-931097

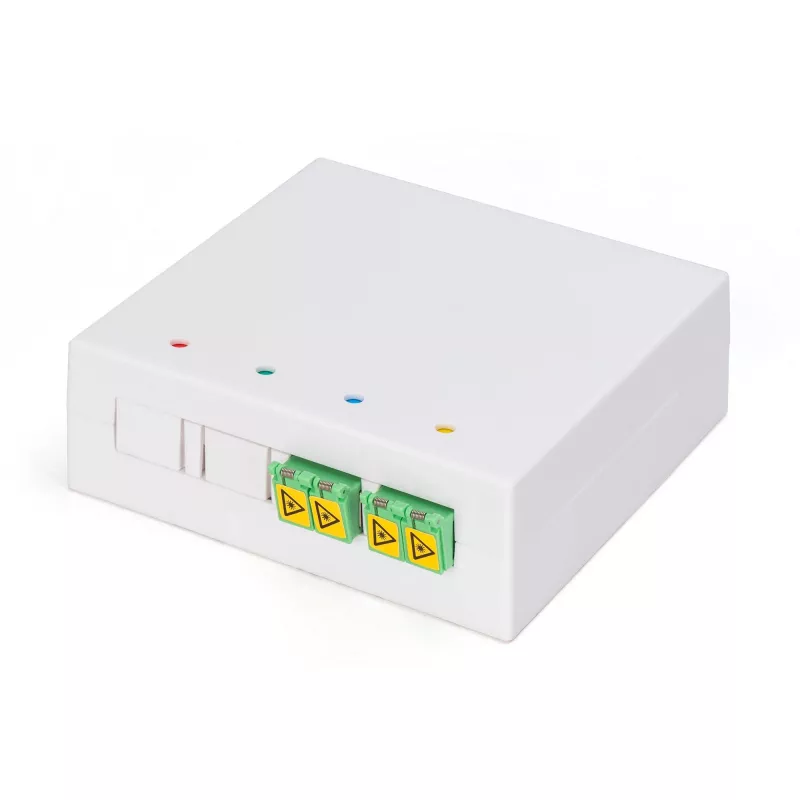

FTTH wall outlet designed for compact distribution and management of up to 4 fibres. The enclosure is suitable for FTTH and office premise cabling, providing space for splices, terminations and connections. Pre-assembled with 2 x LC/APC duplex shutter couplers, the unit allows flexible cable entry from the rear, bottom or top and can be mounted flush to a wall.

Advantages

The Digitus FTTH Enclosure DN-931097 is made from durable ABS and polycarbonate and provides IP45 protection against dust and water. Its compact dimensions (80 x 80 x 30 mm) make it suitable for tight installation spaces. The integrated hinged splice cassette with cable routing supports both fusion and mechanical splicing and the pre-installed LC/APC couplers enable immediate connection of pre-terminated cables or pigtails.

Suitable for

• FTTH subscriber outlet in residential buildings
• Fiber distribution points in small offices
• Termination of pre-terminated fiber cables
• Splicing and storage of up to 4 optical fibres

Key specifications

• Brand: DIGITUS
• Model / MPN: DN-931097
• EAN: 4016032498599
• Couplers: 2 x LC/APC duplex shutter couplers
• Material: ABS and polycarbonate
• Ingress protection: IP45
• Capacity: up to 4 fibres
• Dimensions: 80 x 80 x 30 mm
• Pack contents: 1 unit

How to use

Mount the enclosure to the wall using the rear screw holes so the outlet sits flush. Route incoming cables through the chosen entry point (rear, bottom or top), secure and prepare fibres for splicing or termination. Use the hinged splice cassette to organise fusion or mechanical splices and store excess fiber loops inside the enclosure. Connect pigtails or pre-terminated cables to the pre-installed LC/APC duplex shutter couplers for final device connections.

Recommendations

For reliable performance, install the enclosure in a dry, protected location and follow standard fiber handling and safety procedures. Use compatible LC/APC connectors and proper splice protectors; ensure bend radii are maintained within manufacturer limits during installation.
