Theben KNX δυαδική είσοδος 6 απλή TA 6.1 KNX (4969276)

Equipped with six potential-free binary inputs, the Theben TA 6.1 KNX integrates classic switches, push-buttons, or contacts into a KNX installation. Each input can be configured for switching, dimming, blind control, scene recall, counting, or sequence control, making it a versatile interface for building automation.

Overview

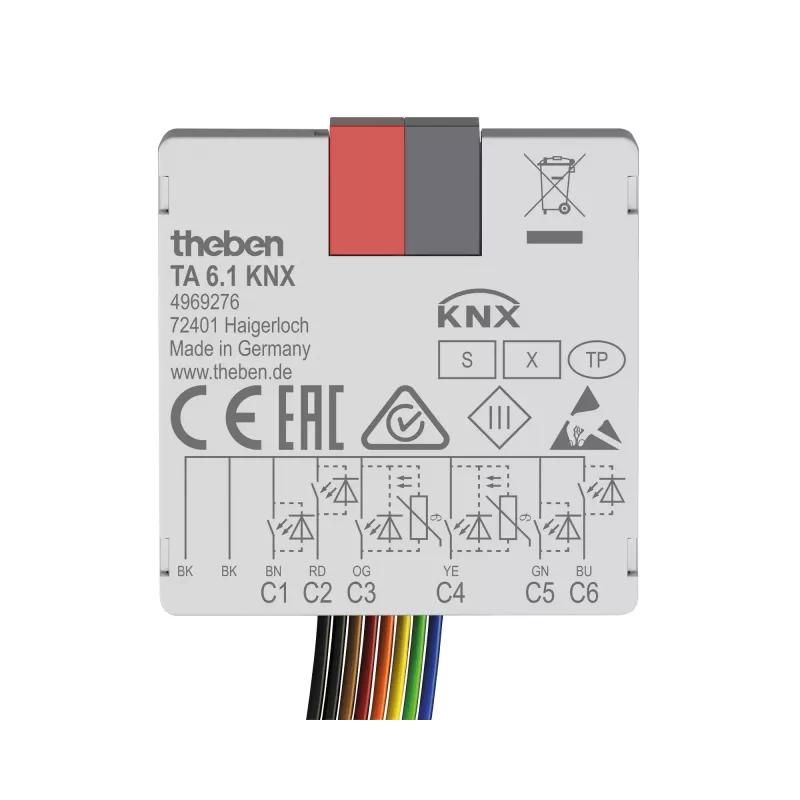

The TA 6.1 KNX is a flush-mounted KNX binary input module with six channels. It is powered directly from the KNX bus (21–30 V DC) and consumes approximately 5 mA. Connection to the bus and inputs is via plug-in terminals, allowing for quick installation. The device is programmed with ETS (Engineering Tool Software).

What stands out

• Six independent binary inputs for potential-free contacts
• Each input supports switching, dimming, blinds, value transmitter, scene recall, counter, and sequence control
• Integrated logic gates: 6 AND/OR, 6 scene objects, 6 counter objects
• Compact flush-mounted design for discreet installation
• Direct KNX bus connection with low current draw

Technical details

• Number of inputs: 6
• Input type: Binary, potential-free contacts
• Bus system: KNX
• Mounting type: Flush-mounted
• Operating voltage: KNX bus voltage (21–30 V DC)
• Bus current consumption: approx. 5 mA
• Max. input cable length: 30 cm per input
• Connection type: Plug-in terminals
• Protection class: IP20
• Operating temperature: -5 °C to +45 °C
• Storage temperature: -25 °C to +70 °C
• Cable cross-section (inputs): 0.5 - 0.75 mm²

Our verdict

A reliable and flexible KNX binary input module for integrating conventional switches and contacts into intelligent building control systems.
