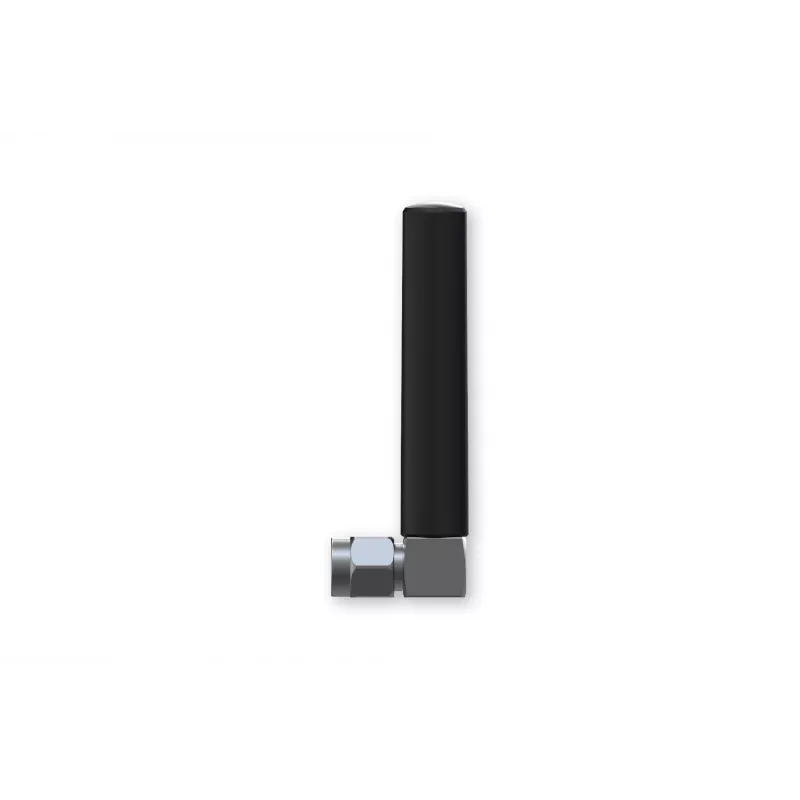

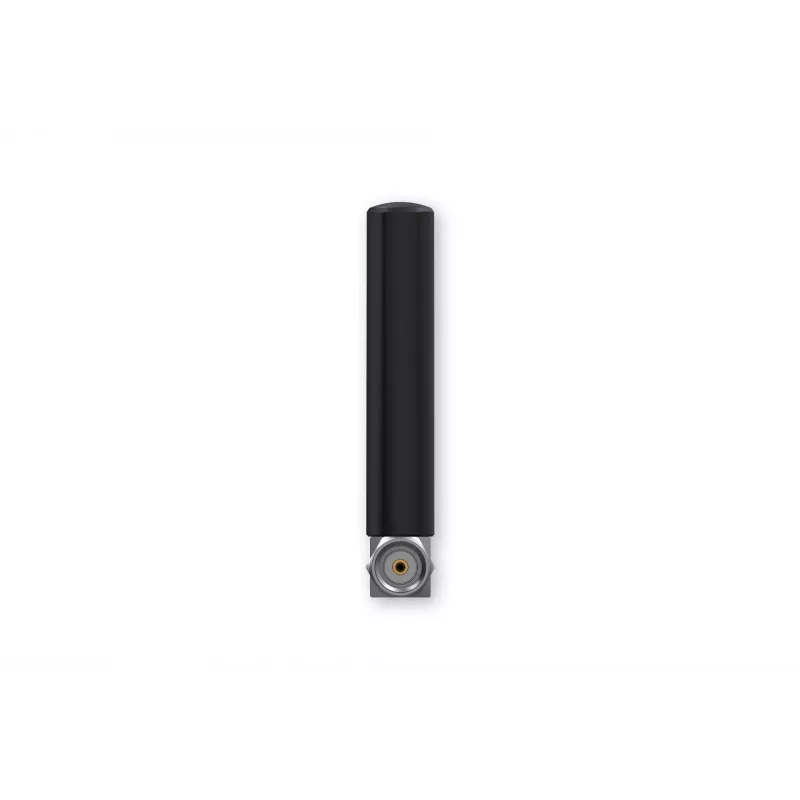

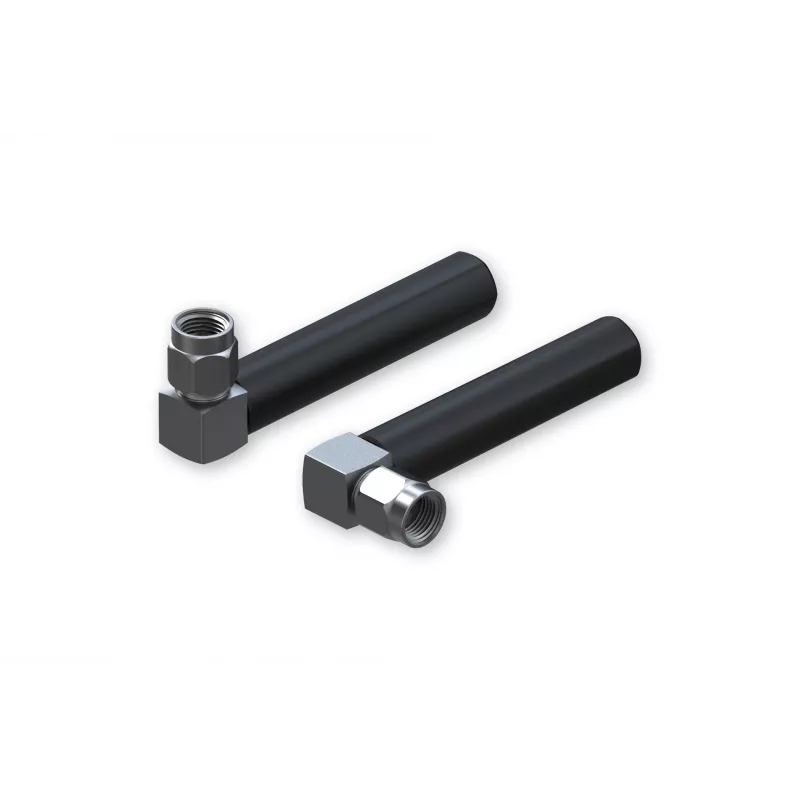

Teltonika Networks PR1PSF22 WiFi SMA Γωνιακή συμπαγής κεραία

The Teltonika Networks PR1PSF22 is a compact, angled Wi-Fi antenna with 2.2 dBi gain and omnidirectional directivity. It features an RP-SMA male connector and operates within a temperature range of -40°C to 85°C.

Key features

• Wi-Fi antenna
• 2.2 dBi gain
• Omnidirectional directivity
• RP-SMA male connector
• Compact and angled design
• Operating temperature: -40°C to 85°C
• VSWR: less than 6.4
• Compliant with IP53 and RoHS

Specifications

• Brand: Teltonika
• MPN: PR1PSF22
• Product Type: Antenna - angled, compact
• Intended For: Wi-Fi
• Compatibility: Wi-Fi
• Gain: 2.2 dBi
• Directivity: Omni-directional
• Connector: RP-SMA male
• Operating Temperature: -40°C to 85°C
• VSWR: < 6.4
• Compliant Standards: IP53, RoHS
• Dimensions (WxDxH): 0.9 cm x 1.86 cm x 5.26 cm
• Weight: 7.4 g
