TELTONIKA 22kW (32A / 3-Phasen) 5m καλώδιο LTE, WiFi, Bluetooth

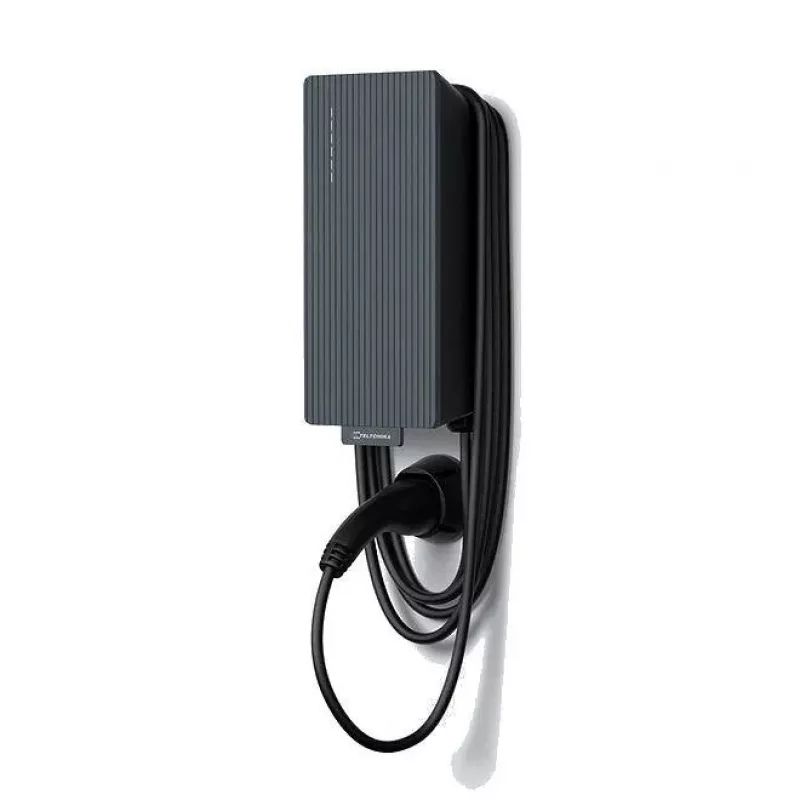

The TELTONIKA EVC2002120S0 is a high-performance 22kW electric vehicle charging station designed for residential and commercial use. With a maximum charging current of 32A and 3-phase input, it delivers fast and efficient charging for electric vehicles. The integrated 5-meter Type 2 charging cable ensures convenient connectivity, while LTE, WiFi, and Bluetooth provide versatile communication options. Built with robust safety features and an IP55-rated enclosure, this wall-mounted charger is reliable in various environments.

Advantages

This charging station offers high power output for rapid charging, multiple connectivity options for remote monitoring and control, and advanced safety protections including overcurrent, overvoltage, undervoltage, and overtemperature protection. The integrated MID-certified energy meter allows for accurate billing, and OCPP 1.6J compliance ensures compatibility with most charging management systems.

Suitable for

• Electric vehicle owners seeking a fast and reliable home charging solution
• Commercial properties such as office buildings, parking lots, and fleet depots
• Installations requiring robust outdoor-rated equipment (IP55, IK10)

Key specifications

• Maximum Charging Power: 22 kW
• Maximum Charging Current: 32 A
• Phase Configuration: 3-Phase
• Input Voltage: 400 V AC
• Charging Connector: Type 2 (IEC 62196-2) with 5m cable
• Connectivity: LTE (4G), WiFi, Bluetooth, Ethernet
• Authentication: RFID, Mobile App
• Communication Protocol: OCPP 1.6J
• Enclosure Rating: IP55
• Impact Rating: IK10
• RCD: Type A + 6mA DC fault current protection
• Energy Metering: Integrated MID certified
• Mounting: Wall-mounted
• Operating Temperature: -30°C to +50°C
• Housing Material: UV-resistant plastic

Recommendations

For optimal performance, ensure proper installation by a qualified electrician. The charger is compatible with all electric vehicles using Type 2 connectors. Use the Teltonika Energy App for remote monitoring and configuration.
