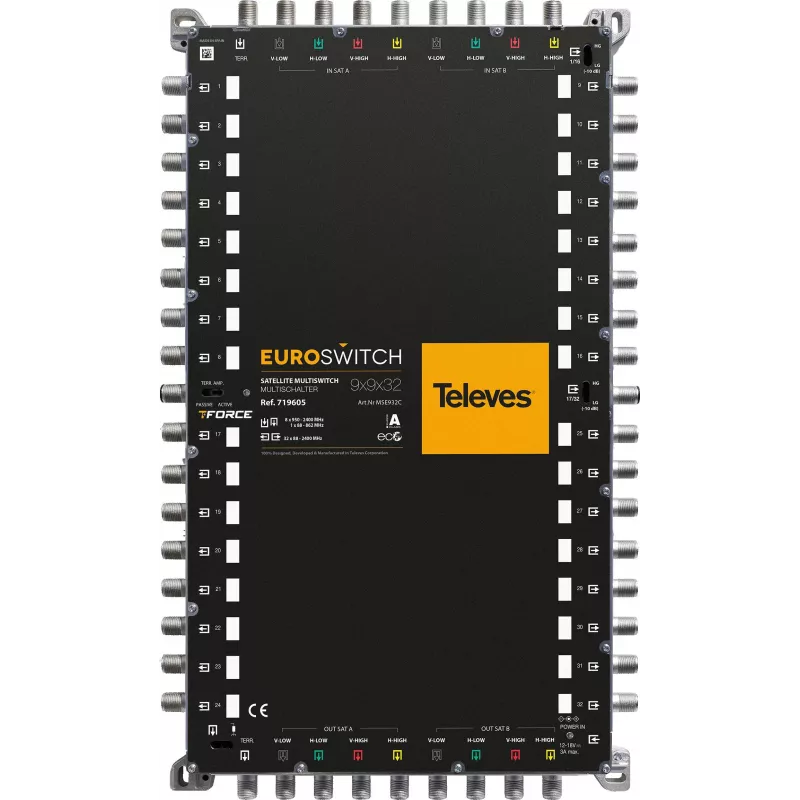

TELEVES EUROSWITCH 9x9x32 F Multiswitch, 8 δορυφορικές είσοδοι, 32 έξοδοι συνδρομητών, cascadable

The TELEVES EUROSWITCH 9x9x32 F Multiswitch (ref. 719605) is a high-performance distribution hub designed for modern satellite and terrestrial TV installations. With 8 satellite inputs (compatible with 2 Quattro LNBs or 1 Wideband LNB) and 1 terrestrial input, it delivers crystal-clear signals to up to 32 users. Its cascading capability via trunk outputs allows expansion for larger systems, making it ideal for multi-dwelling units, hotels, and commercial complexes.

Advantages

This multiswitch ensures reliable signal distribution with minimal loss, thanks to its 0 dB user output gain and >30 dB isolation between satellite and terrestrial paths. The DiSEqC 2.0 control protocol guarantees seamless compatibility with modern receivers and LNBs. Its compact F-type connector design simplifies installation, while the external power supply (e.g., Televes 732101) provides stable 18V DC power.

Suitable for

• Multi-dwelling units (apartments, condos)
• Hotels and hospitality venues
• Office buildings and commercial facilities
• Any installation requiring up to 32 user outlets with satellite and terrestrial TV

Key specifications

• Product Type: Multiswitch
• Satellite Inputs: 8 (for 2 Quattro LNBs or 1 Wideband LNB)
• Terrestrial Inputs: 1
• User Outputs: 32
• Trunk Outputs: 8 Satellite IF, 1 Terrestrial (for cascading)
• Satellite Frequency Range: 950 - 2150 MHz
• Terrestrial Frequency Range: 47 - 862 MHz
• Satellite User Output Gain: 0 dB (typical)
• Terrestrial User Output Gain: 0 dB (typical)
• Satellite Trunk Loss: 3 dB (typical)
• Terrestrial Trunk Loss: 3 dB (typical)
• Max Satellite Output Level (EN 50083-3): 100 dBµV
• Max Terrestrial Output Level (EN 50083-3): 90 dBµV
• SAT-SAT Isolation: >30 dB
• SAT-TER Isolation: >30 dB
• Control Protocol: DiSEqC 2.0 (compatible with 1.0/1.1)
• LNB Power Supply: 18V DC, 500mA (from external PSU)
• External Power Supply Required: Yes (e.g., Televes 732101)
• Connector Type: F-Type
• Operating Temperature: -5 to +45 °C

Recommendations

For optimal performance, pair this multiswitch with a compatible Televes power supply (model 732101) and high-quality F-type connectors. Ensure proper ventilation and avoid exposure to extreme temperatures.
