Tecline HD OM5 καλώδιο patch οπτικών ινών, LC Duplex σε LC Duplex, 50/125 µm Multimode, λιμετρί, 20 m 796LL20

With a massive 28000 MHz·km effective modal bandwidth at 850 nm, this 20-metre Tecline HD patch cable is built for 100G and 400G Ethernet in data centres and SANs. The OM5 multimode fibre supports short-wavelength division multiplexing (SWDM) across 850 nm and 953 nm, doubling the capacity of OM4 over the same two-fibre infrastructure.

Overview

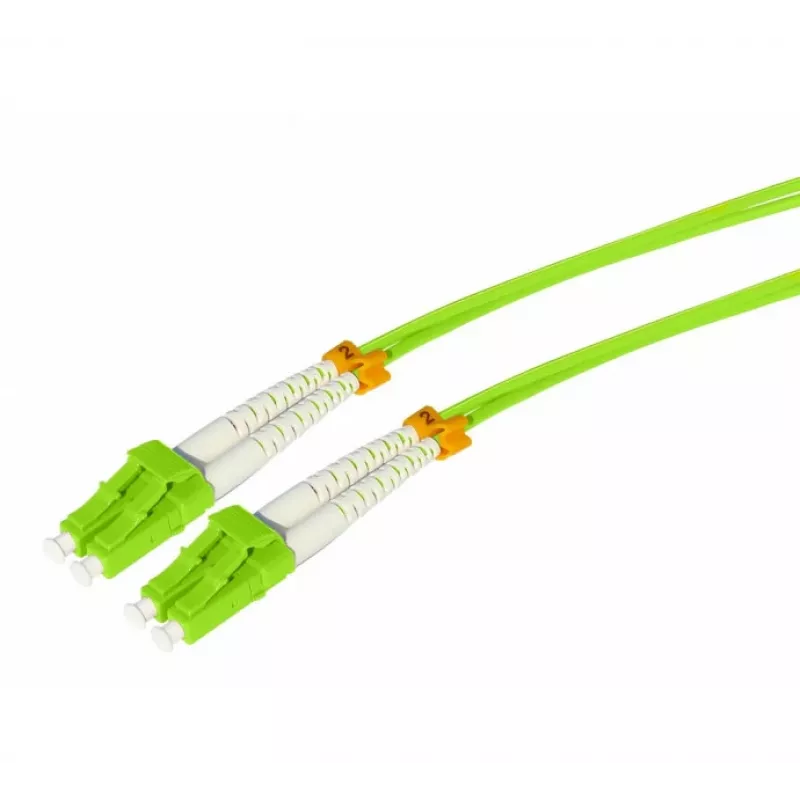

The Tecline 796LL20 is a duplex LC-to-LC fibre optic patch cable with 50/125 µm OM5 multimode fibre and a lime green LSZH jacket. It is factory terminated and tested for low insertion loss, ensuring reliable connections in high-density patching fields.

What stands out

• OM5 multimode fibre supports 100GBASE-SR10 and 400GBASE-SR8 Ethernet links
• Effective modal bandwidth: 28000 MHz·km at 850 nm, 4700 MHz·km at 953 nm
• LC duplex connectors on both ends with straight (A-B) polarity
• LSZH jacket for low smoke and zero halogen emissions in indoor installations
• Backward compatible with OM4 and OM3 systems

Technical details

• Fibre type: Multimode 50/125 µm (OM5)
• Cable length: 20.0 m
• Connectors: LC Duplex to LC Duplex
• Insertion loss: ≤ 0.3 dB typical
• Return loss: ≥ 30 dB typical
• Jacket colour: Lime green
• Jacket material: LSZH

Our verdict

A future-ready OM5 patch lead that unlocks SWDM for high-speed links while remaining fully compatible with existing OM4/OM3 infrastructure. The lime green jacket makes OM5 identification easy in dense fibre trays.
