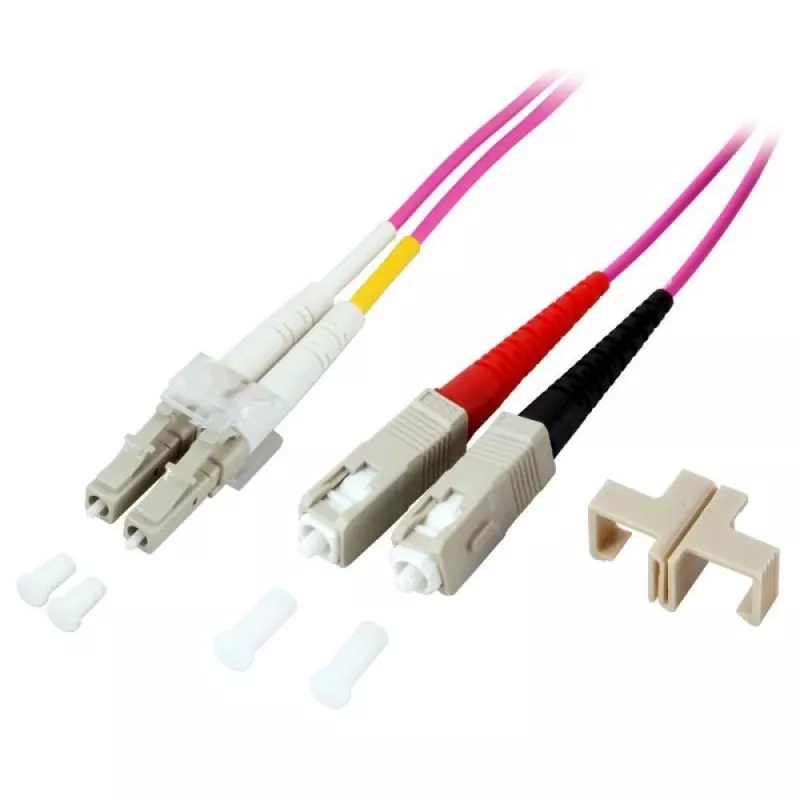

TECHLY καλώδιο patch οπτικών ινών OM4 50/125 µm SC-LC duplex 3m

The TECHLY Patch Cord Fiber Optic OM4 50/125 µm SC-LC Duplex 3m is a high-performance multimode fiber optic cable designed for reliable data transmission in demanding network environments. With OM4 grade fiber and LSZH jacket, it ensures low signal loss and safety.

Advantages

This patch cord offers exceptional modal bandwidth of 4700 MHz-km at 850 nm, supporting high-speed applications up to 40G and 100G Ethernet. The duplex SC to LC connectors provide secure connections, while the aqua jacket enables easy identification. Low insertion loss (≤0.3 dB) and high return loss (≥30 dB) guarantee signal integrity.

Suitable for

• Data centers and server rooms
• Telecommunications networks
• Local area networks (LANs)
• Fiber-to-the-desk (FTTD) installations

Key specifications

• Fiber Type: Multimode OM4
• Core/Cladding: 50/125 µm
• Connectors: SC to LC, Duplex
• Cable Length: 3 meters
• Jacket: LSZH, Aqua
• Insertion Loss: ≤0.3 dB
• Return Loss: ≥30 dB
• Operating Temperature: -20°C to 70°C

Recommendations

For optimal performance, ensure connectors are clean before installation. Compatible with all standard SC and LC ports. Ideal for high-bandwidth applications requiring low latency.
