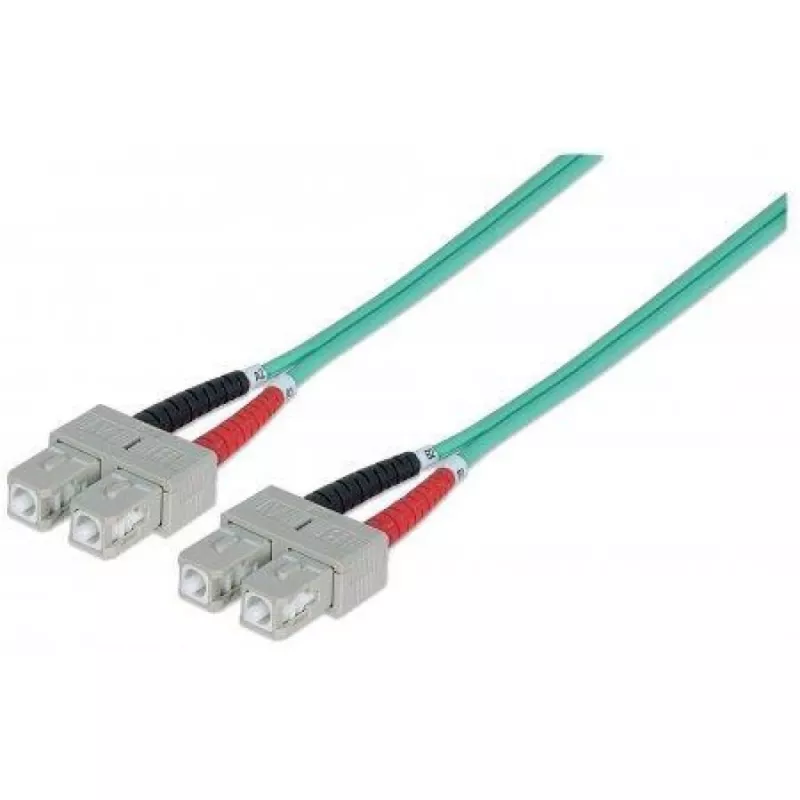

TECHLY καλώδιο patch οπτικών ινών OM3 50/125 SC-SC duplex 5m

The TECHLY Patch Cord Fiber Optic OM3 50/125 SC-SC Duplex 5m is a high-performance multimode fiber optic cable designed for reliable data transmission in local area networks (LANs), data centers, and telecommunications infrastructure. With OM3 laser-optimized fiber, it supports high-bandwidth applications over short to medium distances.

Advantages

This patch cord offers low insertion loss and high return loss, ensuring minimal signal degradation and reliable connections. The duplex SC connectors provide secure and easy mating, while the LSZH jacket enhances safety in enclosed spaces by reducing toxic smoke and fumes in case of fire. The aqua jacket color allows for easy identification of OM3 fiber.

Suitable for

• 10 Gigabit Ethernet (10GBASE-SR) up to 300 meters
• Fiber Channel (8GFC, 16GFC)
• Data center interconnects
• Telecommunications rooms and server rooms
• FTTx and campus networks

Key specifications

• Fiber Type: Multimode OM3
• Core/Cladding: 50/125 µm
• Connectors: SC to SC, Duplex
• Length: 5 meters
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Aqua
• Insertion Loss: < 0.3 dB (typical)
• Return Loss: > 30 dB (typical)
• Operating Temperature: -20°C to 70°C
• Standards: IEC 60793, TIA/EIA-568-C.3, RoHS

Recommendations

For optimal performance, ensure connectors are clean before installation. Use appropriate cable management to avoid bending beyond the minimum bend radius. This patch cord is ideal for high-speed network upgrades and new installations requiring reliable OM3 performance.
