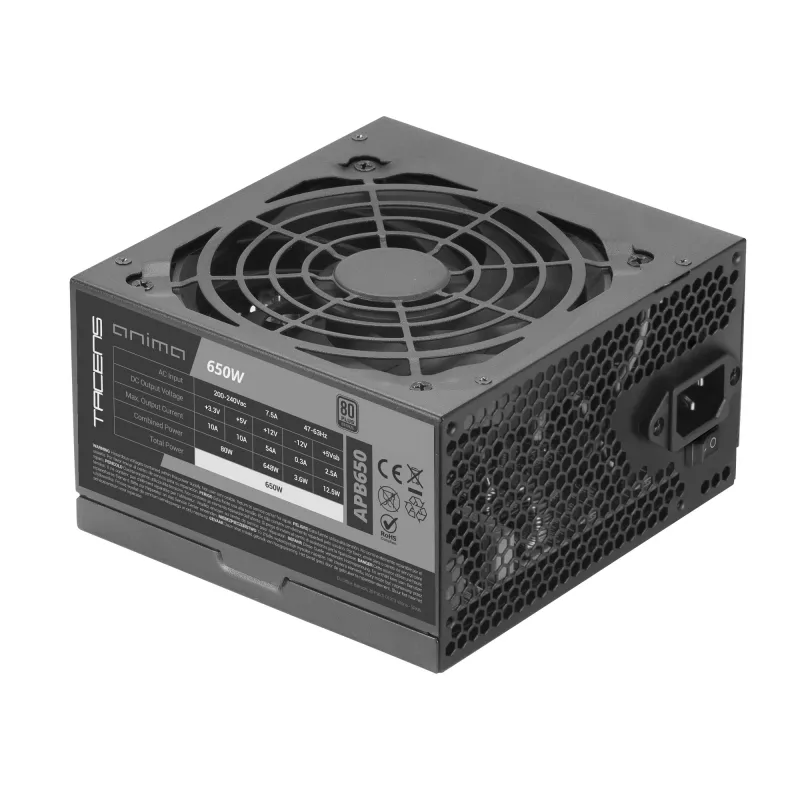

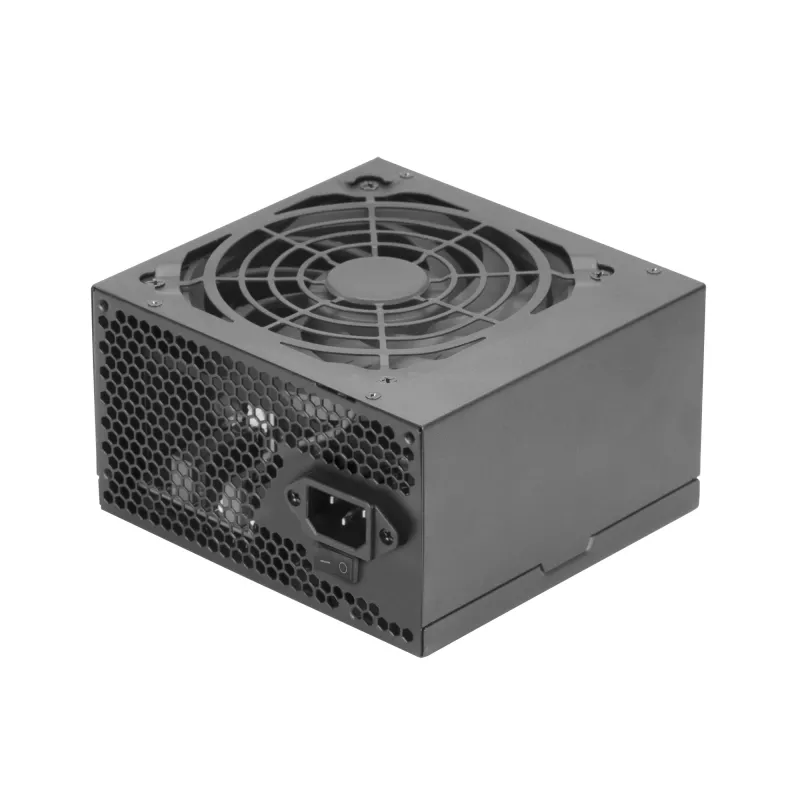

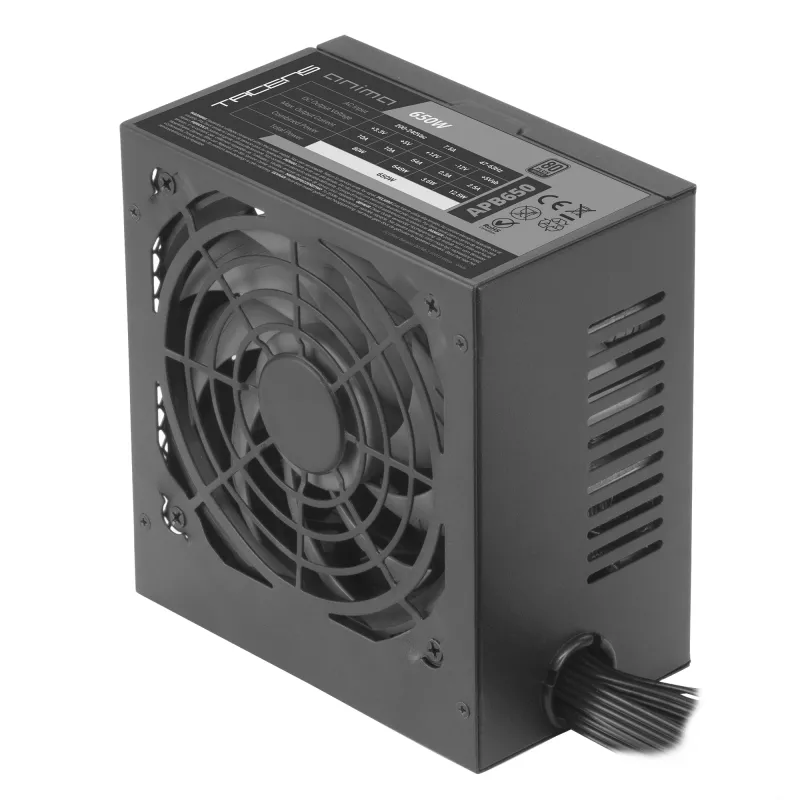

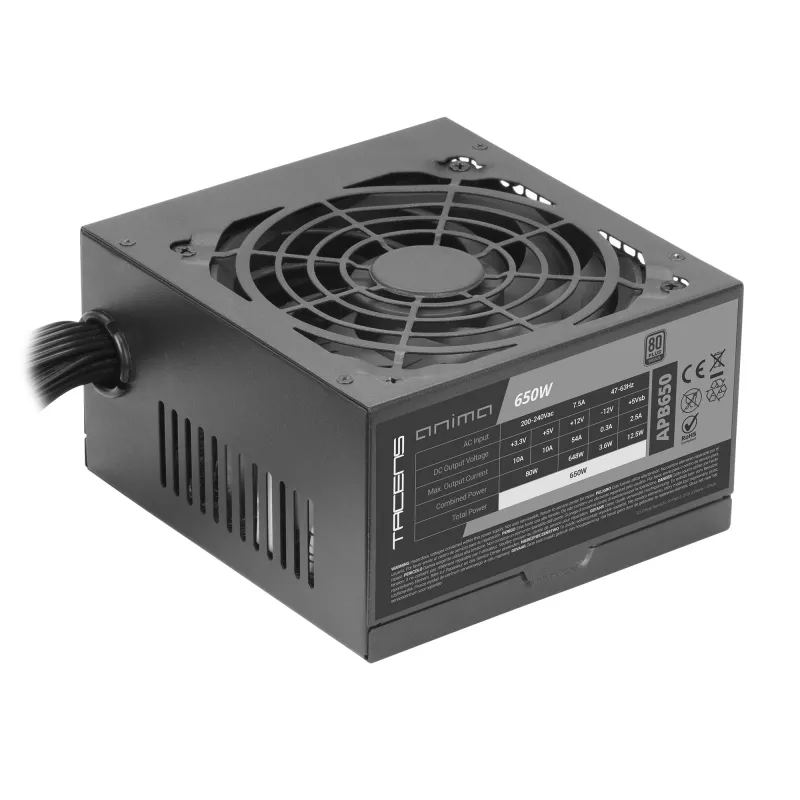

Tacens Anima APB650 τροφοδοτικό 650 W 24-Pin ATX ATX μαύρο

The Tacens Anima APB650 is a 650 W ATX power supply unit designed for desktop PCs. It provides reliable power delivery with 80 PLUS Bronze certification and non-modular full-black cabling. The unit includes a 24-pin ATX connector, a 4+4 pin 12V CPU connector and multiple peripheral connectors, and features an active cooling system with a 120 mm ultra-silent fan. Its compact dimensions and flat black cables support straightforward installation and compatibility with most PC cases.

Advantages

The APB650 uses high-precision SMD manufacturing and A-grade components to ensure stable operation. It incorporates advanced protection circuits including OVP, UVP, OPP and extended SCP, and is certified by TÜV Rheinland. The power supply employs DC-DC conversion and single-rail output for improved voltage stability, achieves 85% electrical efficiency and meets 80 PLUS Bronze standards. A 120 mm anti-vibration fan keeps noise levels low (around 14 dB) during normal operation.

Suitable for

• Home and office desktop PCs requiring up to 650 W continuous power
• Mid-range gaming systems with single or dual graphics cards (check connector requirements)
• System builds needing compact ATX power supplies with full-black cables for clean cable management

Key specifications

• Total power: 650 W
• Efficiency: 85% (80 PLUS Bronze)
• Input voltage: 200–240 V AC, 47–63 Hz

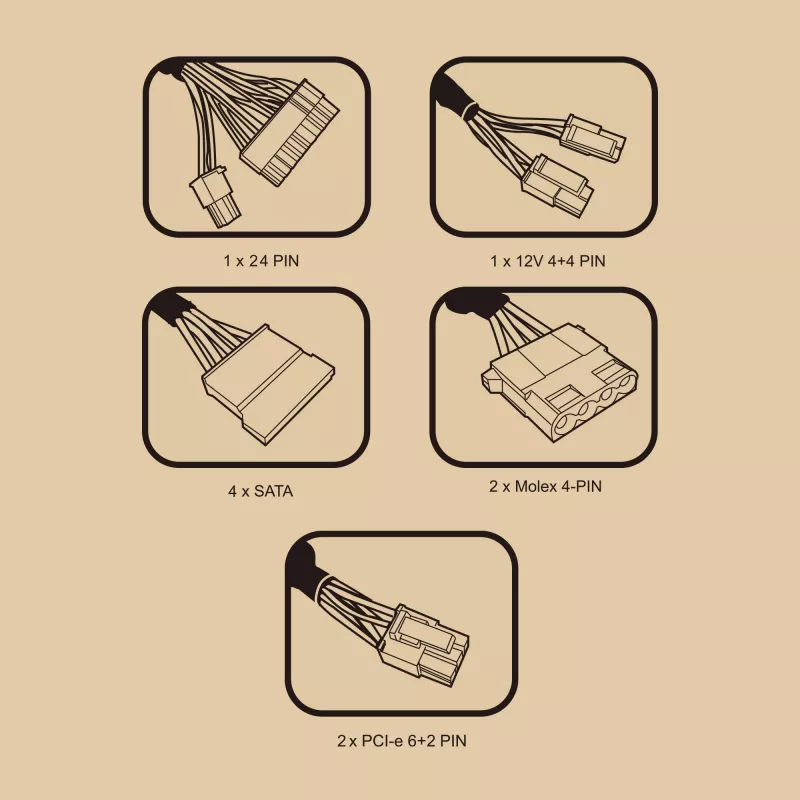

• Motherboard connector: 24-pin ATX
• CPU connector: 1×4+4 pin 12V
• PCI-E connectors: 2×6+2 pin
• Drives: 4×SATA, 2×Molex

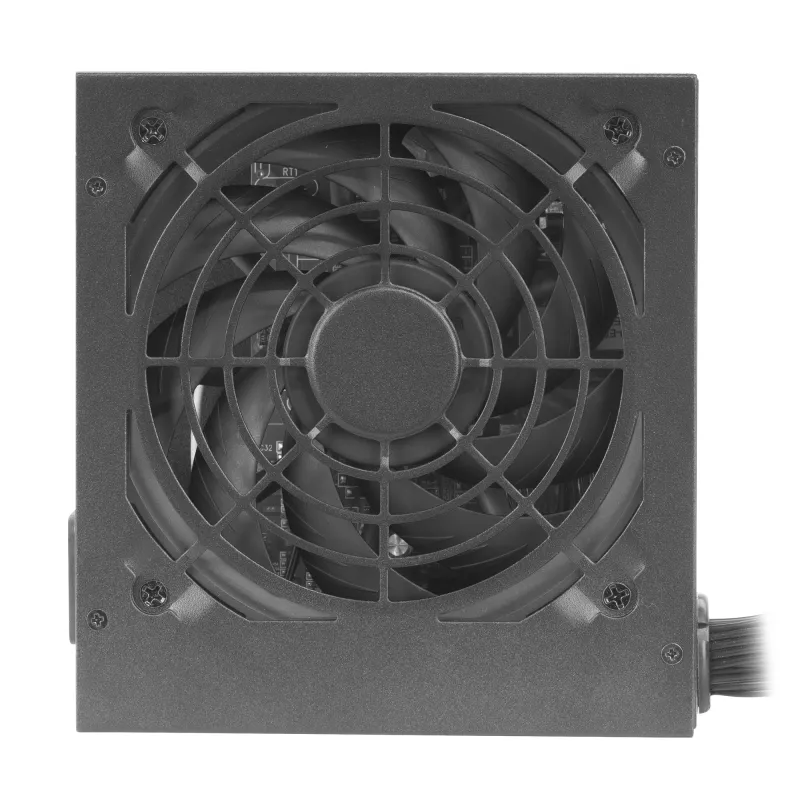

• Fan: 120 mm ultra-silent fan
• Dimensions: 150 × 145 × 85 mm
• Weight: 1.36 kg
• Colour: Black; full black cables

How to use

Install the APB650 into a compatible ATX case following standard PSU mounting procedures, secure it with the included screws, and connect the 24-pin ATX and 4+4 pin CPU connectors to the motherboard. Attach PCI-E and peripheral connectors to graphics cards and drives as required. Ensure the AC mains voltage matches the unit’s 200–240 V rating before powering on. Allow unobstructed airflow around the fan grill and avoid routing cables that block intake or exhaust paths.

Recommendations

For stable operation, use the APB650 in systems with a total power draw below 650 W and perform periodic dust cleaning of the fan and vents. Verify that connected components’ connector types and counts match the available cables, and avoid operating the PSU in environments with extreme temperatures or high humidity.
