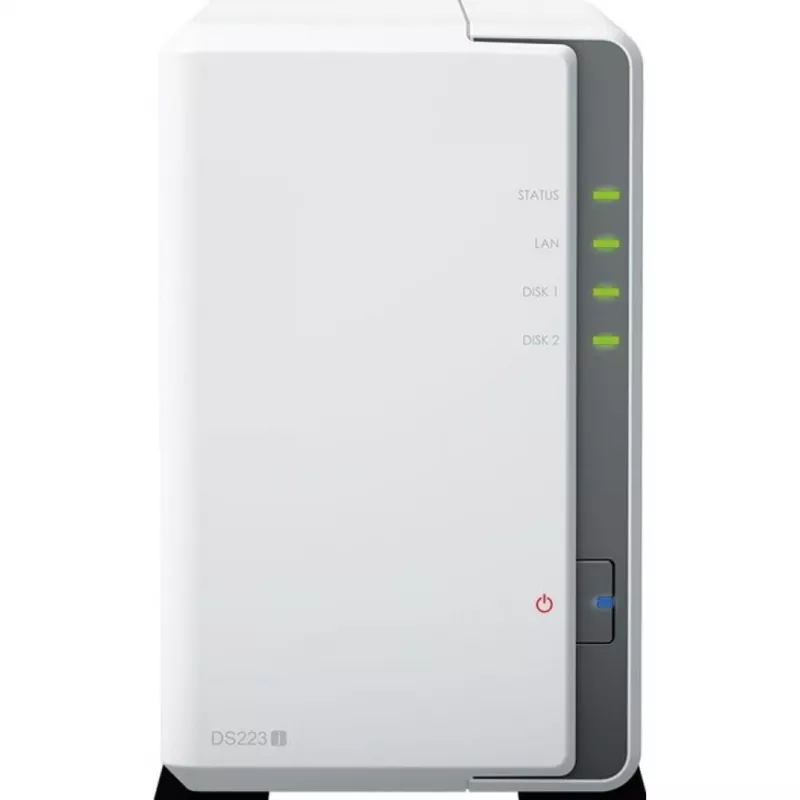

Synology DS223j RED 16TB (2x 8TB) 2-Bay NAS Desktop

The Synology DS223j RED is a cost-effective 2-bay NAS designed for home and small office users. Pre-configured with 2x 8TB Western Digital Red Plus HDDs (CMR), it offers 16TB of total storage capacity for centralized data management, backup, and multimedia streaming. Powered by a Realtek RTD1619B quad-core processor and 1GB DDR4 memory, it delivers reliable performance for file sharing, data protection, and remote access.

Advantages

Easy setup and management with Synology DiskStation Manager (DSM). Energy-efficient design with low power consumption (16.31W active, 4.08W hibernation). Quiet operation at only 14.6 dB(A). Supports Synology Hybrid RAID (SHR) for flexible storage expansion and data redundancy.

Suitable for

• Home users needing centralized file storage and backup
• Small businesses requiring affordable data protection
• Media enthusiasts streaming content to multiple devices

Key specifications

• CPU: Realtek RTD1619B Quad-Core 1.7 GHz
• Memory: 1 GB DDR4 non-ECC
• Drive Bays: 2 (3.5" SATA HDD/SSD)
• Included Drives: 2x 8TB Western Digital Red Plus (CMR)
• Total Capacity: 16 TB
• Max Raw Capacity: 36 TB (2x 18TB)
• RAID Support: SHR, Basic, JBOD, RAID 0, RAID 1
• Network: 1x Gigabit Ethernet
• External Ports: 2x USB 3.2 Gen 1 Type-A
• File System: Btrfs (data), EXT4 (system)
• Power Consumption: 16.31 W (access), 4.08 W (hibernation)
• Noise Level: 14.6 dB(A)
• Fan: 1x 92x92x25 mm
• Max Concurrent Connections: 100
• Warranty: 2 Years

Recommendations

The DS223j RED is an ideal entry-level NAS for users who want a pre-configured solution with reliable drives. It excels in file sharing, backup, and media serving without the complexity of enterprise systems.
