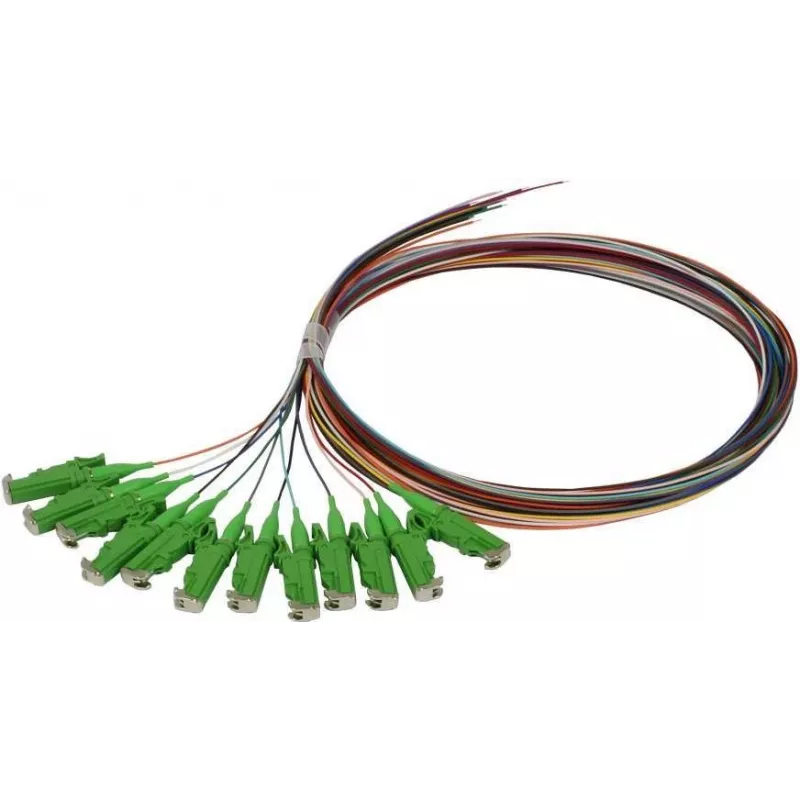

SYNERGY21 S215560 σετ καλωδίων patch οπτικών ινών 2 m OS2 E-2000 (LSH) πολύχρωμο συσκευασία 12 τεμ.

The SYNERGY21 S215560 is a professional-grade fiber optic patch cable set designed for high-performance network installations. This 12-pack includes 2-meter OS2 single-mode cables with E-2000/APC (LSH) connectors, featuring a multicolored jacket for easy identification. Ideal for data centers, telecommunications, FTTx, LAN, and SAN applications.

Advantages

Each cable in this set offers low insertion loss (≤0.2 dB) and high return loss (≥60 dB), ensuring reliable signal transmission. The LSZH (Low Smoke Zero Halogen) jacket material enhances safety in enclosed spaces. The multicolored design simplifies cable management and reduces installation time.

Suitable for

• Data centers and server rooms
• Telecommunications networks
• FTTx (Fiber to the x) deployments
• Local Area Networks (LAN)
• Storage Area Networks (SAN)

Key specifications

• Product Type: Fiber Optic Patch Cable Set
• Fiber Mode: Single-mode
• Fiber Type: OS2 (ITU-T G.657.A1/A2)
• Cable Length: 2 m (per cable)
• Connector Type: E-2000/APC (LSH) male to E-2000/APC (LSH) male
• Number of Fibers: Simplex (1 fiber per cable)
• Number of Cables in Set: 12
• Jacket Color: Multicolored
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Diameter: 2.0 mm
• Core Diameter: 9 µm
• Cladding Diameter: 125 µm
• Insertion Loss: ≤ 0.2 dB
• Return Loss: ≥ 60 dB
• Polish Type: APC (Angled Physical Contact)
• Wavelength: 1310 nm / 1550 nm
• Operating Temperature: -20°C to +70°C

Recommendations

For optimal performance, ensure connectors are clean before installation. This set is ideal for high-density environments where color-coded cables improve organization.
