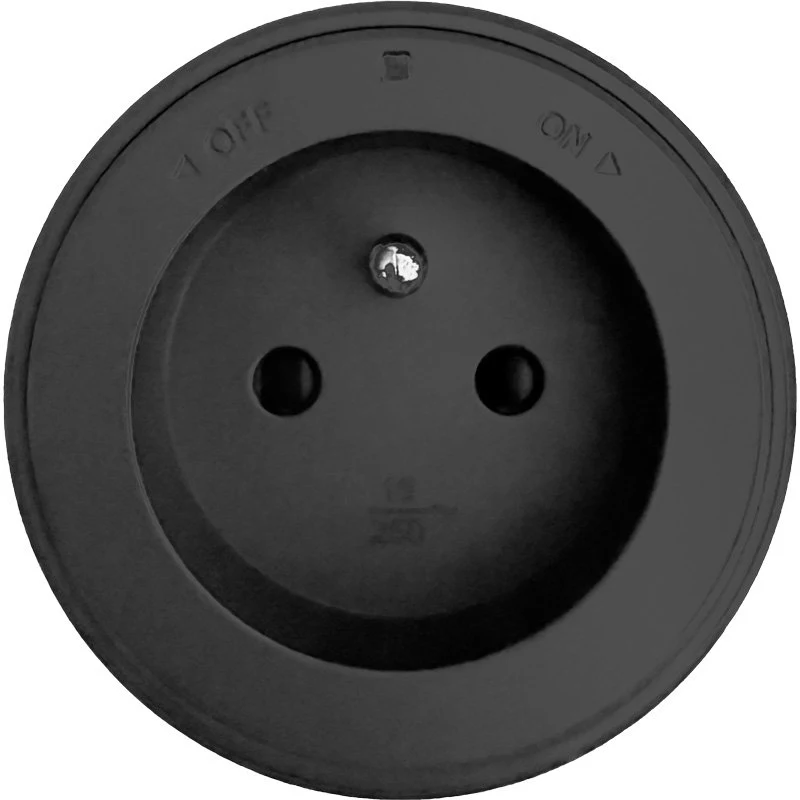

SYNERGY21 MODULRAIL Μονάδα πρίζας Type E+ Μαύρο 16A 250V (S21-MR018)

Rated at 16 A and 250 V AC, this Type E+ socket module delivers robust power distribution in electrical enclosures. Its 45 mm module width fits standard DIN rail systems, simplifying installation.

Overview

The SYNERGY21 MODULRAIL Socket Module is a single Type E+ (French standard) outlet designed for modular rail mounting. With screw terminals accepting conductors up to 2.5 mm², it ensures secure connections. The black thermoplastic housing offers durability and a clean appearance.

What stands out

• Type E+ socket, compliant with French standard
• 16 A rated current for high-power applications
• 45 mm module width for DIN rail integration
• Screw terminals for reliable wiring
• Black thermoplastic construction

Technical details

• Socket Type: Type E+ (French Standard)
• Number of Sockets: 1
• Rated Current: 16 A
• Rated Voltage: 250 V AC
• Frequency: 50/60 Hz
• Mounting Type: Modular Rail (DIN Rail compatible)
• Connection Type: Screw Terminals
• Max. Conductor Cross-section: 2.5 mm²
• Number of Poles: 2P+E
• Module Width: 45 mm
• Installation Depth: 50 mm
• Operating Temperature Range: -5 to +40 °C
• Material: Thermoplastic
• Colour: Black
• Series: MODULRAIL

Our verdict

A dependable choice for enclosure power distribution, combining a standard French socket with easy DIN rail mounting.
