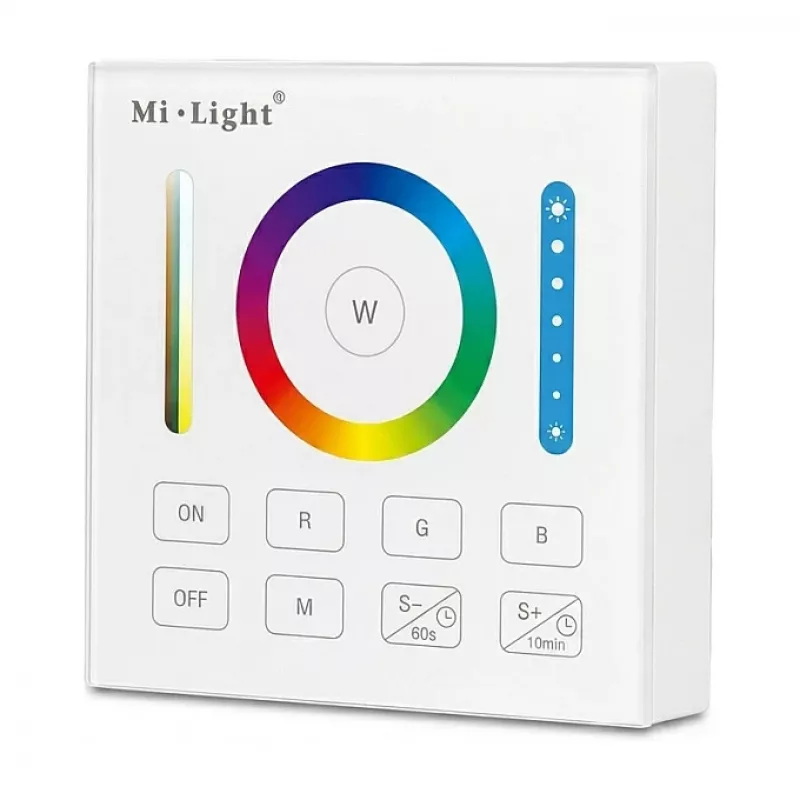

Synergy 21 LED Smart Panel τηλεχειριστήριο RGB+CCT για MiLight/MiBoxer (B0)

The Synergy 21 LED Smart Panel Remote Control (Model B0) is a capacitive touch panel designed for seamless control of RGB+CCT LED lighting within the MiLight/MiBoxer ecosystem. With 4 independent zones and a range of up to 30 meters, it offers precise adjustment of brightness, color temperature, RGB colors, saturation, and dynamic modes. The tempered glass front panel and standard 86-type wall box compatibility make it a stylish and practical choice for modern smart homes.

Advantages

Intuitive capacitive touch interface with smooth, responsive control. Supports up to 4 independent zones for flexible lighting management. Long-range 2.4GHz RF wireless connection ensures reliable operation. Easy wall-mount installation fits standard EU/US flush boxes or surface mounting. Low standby power consumption (<20µA) extends battery life.

Suitable for

• Smart home lighting systems using MiLight/MiBoxer RGB+CCT LED products
• Residential and commercial spaces requiring multi-zone lighting control
• Users seeking a modern, glass-panel remote with touch controls

Key specifications

• Product Type: LED Smart Panel Remote Control
• Control Method: Capacitive Touch Panel
• Wireless Protocol: 2.4GHz RF (Radio Frequency)
• Compatibility: MiLight / MiBoxer Ecosystem
• Controlled LED Types: RGB+CCT (Red, Green, Blue + Correlated Color Temperature / Warm White-Cold White)
• Number of Control Zones: 4 independent zones
• Power Supply: 2x AAA Batteries (3V DC)
• Installation Type: Wall-mounted (Standard EU/US flush box compatible or surface mount)
• Control Functions: ON/OFF, Brightness Adjustment, Color Temperature Adjustment, RGB Color Selection, Saturation Control, Dynamic Mode Selection
• Control Distance: Up to 30 meters (line of sight)
• Panel Material: Tempered Glass Front Panel
• Operating Temperature: -20°C to +60°C
• Standby Power Consumption: <20µA
• Wireless Frequency: 2400-2483.5MHz
• Modulation Method: GFSK
• Output Power: 6dBm
• Mounting Standard: Standard 86-type wall box

Recommendations

For optimal performance, use high-quality AAA alkaline batteries. Ensure the remote is within 30 meters of the LED controller for reliable communication. Compatible with all MiLight/MiBoxer RGB+CCT LED products.
