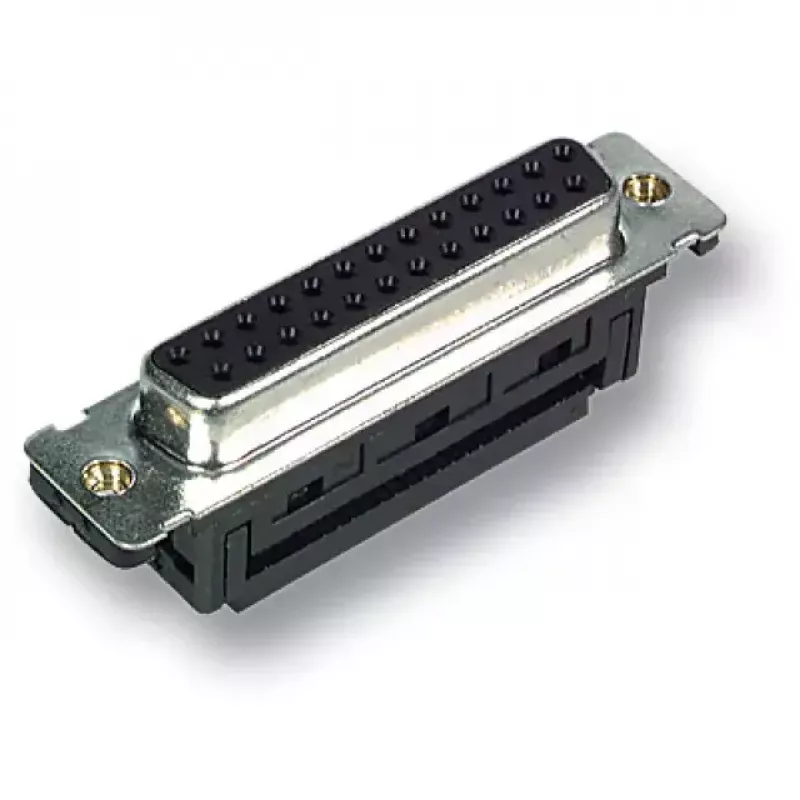

Σύνδεσμος καλωδίου Dsub 25-polig EFB Elektronik 29017.1

The EFB Elektronik 29017.1 wire connector is a D-Sub 25-pin (DB25) connector designed for reliable signal and data connections in electronic equipment. Constructed from metal and plastic, it is supplied in black and grey finishes and intended for standard mating with UNC-threaded counterparts. The connector is rated quality level III and is specified for up to 50 mating cycles.

Advantages

This Dsub 25-pin connector offers a robust metal-plastic construction that balances durability and weight. Its UNC thread standard ensures compatibility with common D-Sub housings and securing hardware. The specified 50 mating cycles provides a clear expectation of mechanical endurance for repeatable connections.

Suitable for

• Signal and data connections in industrial and electronic equipment
• Repair or replacement of DB25 interfaces
• Prototyping and small-series electronic projects

Key specifications

• Manufacturer: EFB Elektronik
• MPN: 29017.1
• EAN: 4049759038403
• Connector type: D-Sub 25-pin (DB25)
• Materials: metal and plastic
• Colour: black / grey
• Thread type: UNC
• Quality level: III
• Mating cycles: 50
• Quantity: 1 piece per pack

How to use

Align the D-Sub 25-pin connector with the matching DB25 socket, ensuring pins and sockets are properly oriented. Engage the connector and secure it using the UNC thread screws or mating hardware until snug; avoid over-tightening to prevent damage to the plastic parts. For installation into equipment housings, follow the device manufacturer’s instructions regarding fastening torque and cable strain relief.

Recommendations

Use this connector in applications where up to 50 mating cycles meet operational needs. For higher cycle or heavy-duty applications consider connectors rated for greater endurance. Store unused connectors in a dry environment and avoid excessive mechanical stress during installation to maintain the specified quality and lifespan.
