Συμβατός πομποδέκτης SFP Ruckus E1MG-SX-A BlueOptics BO05C856S5D, LC Duplex, 1000BASE-SX, Multimode

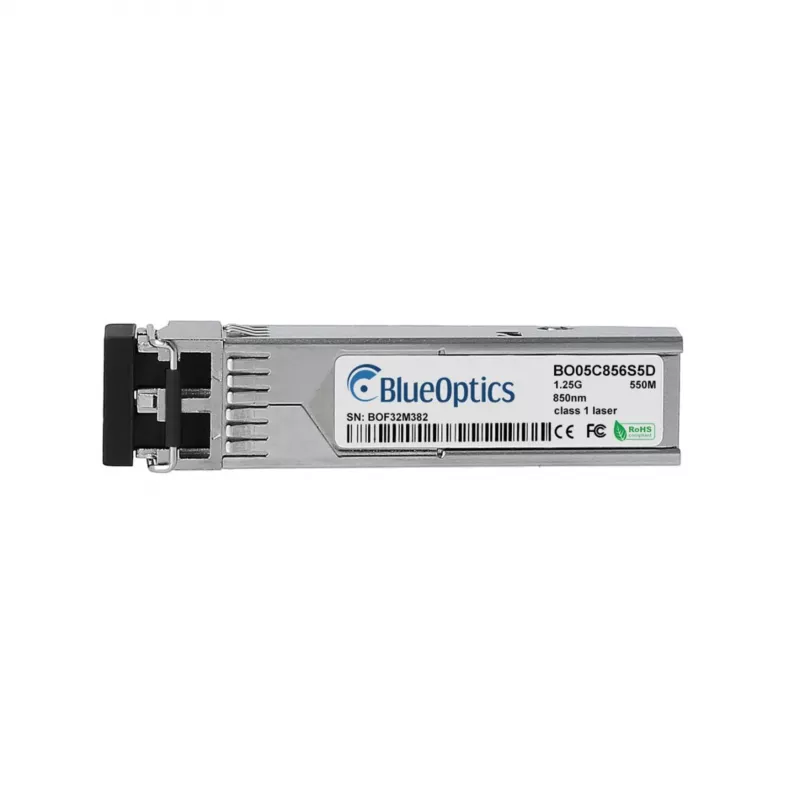

The BlueOptics BO05C856S5D is a high-performance SFP transceiver designed to be fully compatible with Ruckus E1MG-SX-A equipment. It delivers reliable 1.25 Gbps data transmission over multimode fiber at 850 nm wavelength, supporting distances up to 550 m. This hot-pluggable module features LC duplex connectors and is MSA compliant, ensuring seamless integration into your network infrastructure.

Advantages

Cost-effective alternative to OEM modules without compromising performance or reliability. Supports Digital Diagnostic Monitoring (DDM/DOM) for real-time monitoring of optical parameters. Low power consumption (<1.0 W) helps reduce energy costs. Robust design with MTBF >500,000 hours ensures long-term operation.

Suitable for

• Enterprise network switches and routers requiring 1000BASE-SX connectivity
• Data center interconnects over multimode fiber
• Upgrading or expanding existing Ruckus network infrastructure

Key specifications

• Module Type: SFP
• Data Rate: 1.25 Gbps
• Ethernet Standard: 1000BASE-SX
• Wavelength: 850 nm
• Max Reach: 275 m (OM1), 550 m (OM2/OM3/OM4)
• Fiber Type: Multimode (MMF)
• Connector: LC Duplex
• DDM/DOM: Yes
• Hot-Pluggable: Yes
• Transmitter: VCSEL
• Receiver: PIN Photo Detector
• Power Consumption: <1.0 W (Typical)
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: MSA, RoHS, CE, FCC

Recommendations

For optimal performance, use with OM2/OM3/OM4 multimode fiber cables. Ensure proper handling and insertion to avoid damage to the module or equipment. This transceiver is a direct replacement for the Ruckus E1MG-SX-A and is backed by BlueOptics' quality guarantee.
