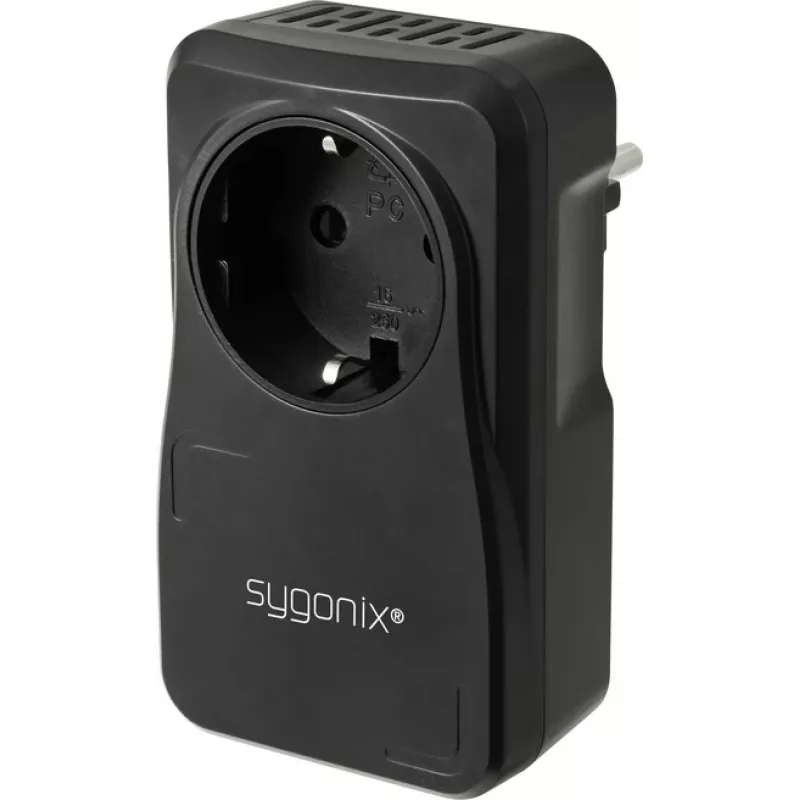

Sygonix SY-6801156 Περιοριστής ρεύματος εκκίνησης SX16 μαύρο IP20

High inrush currents when switching on LED power supplies, switching power supplies, transformers, or motors can trip circuit breakers and stress components. The Sygonix SY-6801156 inrush current limiter reduces these current peaks by up to 70%, protecting your installation and extending the life of connected devices.

Who is it for

Electricians, technicians, and advanced DIYers who need to reliably start capacitive or inductive loads on standard 230 V household circuits without nuisance tripping.

Main features

• Reduces inrush current by up to 70%
• Max. switching current: 16 A
• Max. connected load: 3680 W
• Operating voltage: 230 V/AC
• Schuko plug and socket (Type F)
• Compact, plug-in design
• IP20 rating for indoor use

Specifications

• Product type: Inrush Current Limiter
• Max. switching current: 16 A
• Max. connected load: 3680 W
• Operating voltage: 230 V/AC
• IP rating: IP20
• Colour: Black
• Input connection: Schuko plug (Type F)
• Output connection: Schuko socket (Type F)
• Number of sockets: 1
• Operating temperature range: -20 to +50 °C
• Housing material: Plastic
• Self-consumption: < 0.5 W
• Inrush current reduction: Up to 70%
• Recommended use: LED power supplies, switching power supplies, transformers, motors

Tips

Connect the limiter between the mains outlet and the device. For best results, ensure the total connected load does not exceed 3680 W. The limiter is intended for indoor use only (IP20).
