Switch PoE ALLNET ALL-SG8206PDM 6 θυρών 802.3af/at

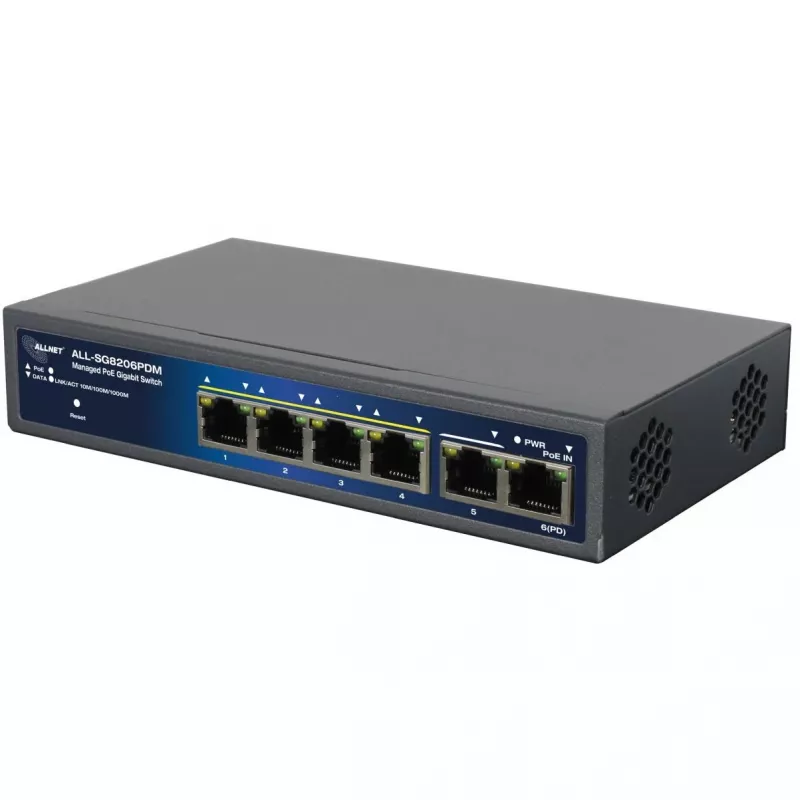

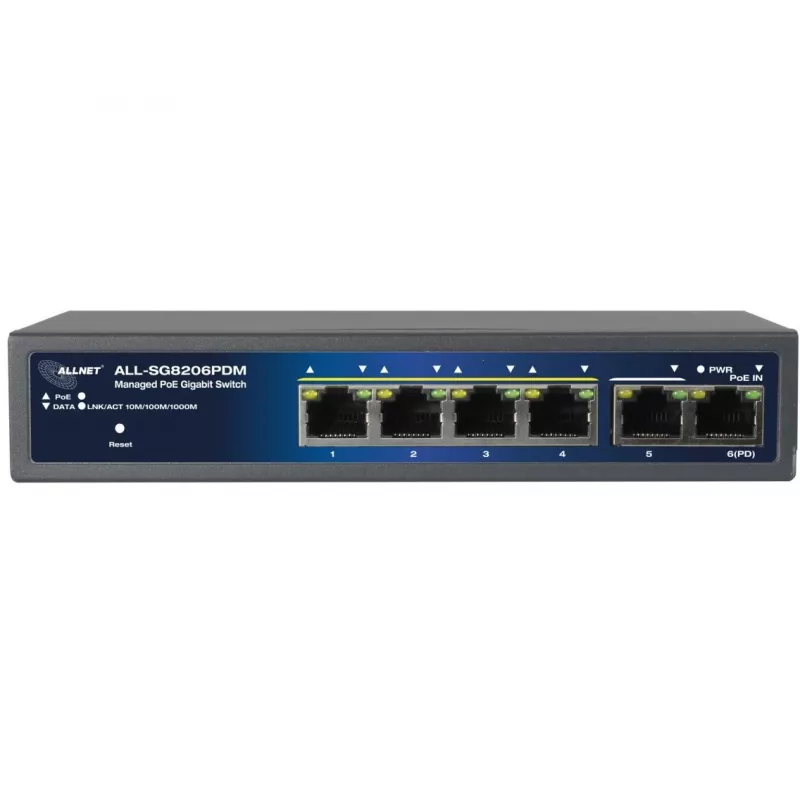

The ALLNET ALL-SG8206PDM is a compact Layer 2 PoE switch with six RJ45 ports that support IEEE 802.3af and 802.3at standards. It delivers both power and data over Ethernet to connected devices, enabling centralized deployment of IP phones, PoE cameras, and wireless access points. The switch is designed for small office, retail or surveillance environments where a small footprint, simple installation and reliable PoE delivery are required.

Advantages

This switch combines data switching and Power over Ethernet in a single, space-saving device. Compatibility with 802.3af/at ensures support for a wide range of powered devices while automatic detection and power allocation simplify setup. As a Layer 2 device, it provides efficient traffic handling for typical small-network topologies and reduces the need for separate power supplies at the device location.

Suitable for

• Small office networks requiring PoE for IP phones and access points
• Retail installations with PoE cameras for point-of-sale and security
• Home or small business surveillance systems
• Edge deployments where compact PoE switching is needed

Key specifications

• Switch type: Layer 2 Ethernet switch with PoE
• Number of ports: 6 x 10/100/1000 Mbps RJ45 ports with PoE
• PoE standards supported: IEEE 802.3af (PoE) and IEEE 802.3at (PoE+)
• Power delivery: Per-port PoE power allocation compatible with 802.3af/at devices
• Form factor: Compact desktop/rack-adaptable housing for space-constrained locations
• Management: Layer 2 features for traffic handling suitable for small networks

How to use

Install the switch on a flat surface or mount it according to the manufacturer's mounting options. Connect the switch to your network core or router using one of the RJ45 uplink ports. Plug PoE-enabled devices such as IP phones, access points or cameras into the switch's RJ45 ports; the switch will negotiate power automatically using 802.3af/at protocols. Ensure total connected PoE power does not exceed the switch's overall power budget by inspecting the combined power requirements of connected devices.

Recommendations

Place the switch in a ventilated area away from direct heat sources. Use quality Ethernet cabling (Cat5e or higher) for gigabit connectivity and reliable PoE delivery. Verify device compatibility with 802.3af/at before deployment and plan port allocation to keep within the available PoE power budget.
