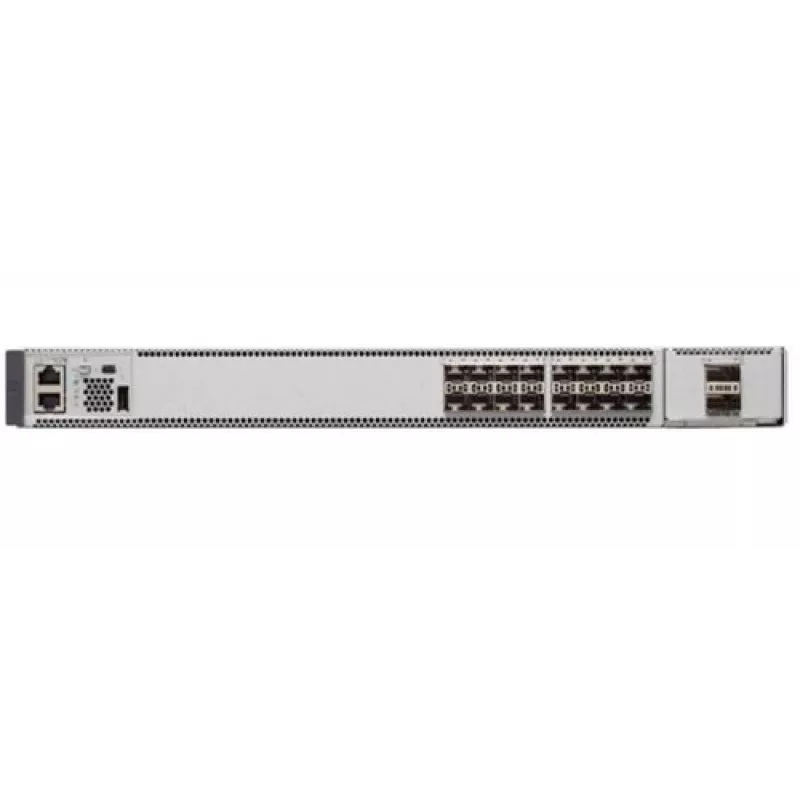

Switch Cisco Catalyst 9500 16-PORT 10GIG

The Cisco Catalyst 9500 Series is a next-generation enterprise-class core and aggregation switch platform designed for programmability, serviceability, security, IoT and cloud deployments. The Catalyst 9500 16-PORT 10GIG (C9500-16X-A) model is a fixed managed switch based on an x86 CPU with a 4-core 2.4 GHz processor, 16 GB DDR4 memory and 16 GB internal storage. It provides high-density 10G connectivity and is intended for placement in the campus core and aggregation layers.

Advantages

The switch offers nonblocking 40G QSFP+ and 1G/10G SFP/SFP+ architectural design with large MAC, route and ACL table scale and enterprise-grade buffering. It supports advanced routing and infrastructure services including MPLS Layer 2/3 VPNs, Multicast VPN (MVPN) and NAT, as well as software-defined access border features such as host tracking, cross-domain connectivity and VRF-aware LISP. The platform also includes high-availability capabilities like Graceful Insertion and Removal (GIR), Cisco NSF/SSO and redundant platinum-rated power supplies and fans.

Suitable for

• Enterprise campus core and aggregation layer switching
• High-density 10G aggregation and access distribution
• Environments requiring advanced routing, MPLS and VPN services
• Networks needing high availability and redundancy

Key specifications

• Model: Cisco Catalyst 9500 16-PORT 10GIG (C9500-16X-A)
• CPU: x86, 4-core, 2.4 GHz
• Memory: 16 GB DDR4
• Internal storage: 16 GB
• Ports: 16 × Gigabit Ethernet RJ-45 (10/100/1000); 10G support via SFP+/QSFP modules as applicable
• Switch type: Managed L2/L3
• Color: Grey

How to use

Install the switch in a suitable rack space in the campus core or aggregation cabinet following Cisco rack-mount guidelines. Connect uplinks and aggregation links using appropriate SFP+/QSFP modules for 10G/40G connectivity and configure VLANs, routing instances and security policies through the Cisco IOS XE management interface. Use the built-in management ports or out-of-band management for initial configuration and apply software images and feature licenses as required for MPLS, VPN and SD-Access features.

Recommendations

For optimal performance, deploy the Catalyst 9500 16-PORT 10GIG in core or aggregation roles with redundant power and fan modules enabled, keep firmware up to date, and use Cisco-recommended SFP+/QSFP transceivers and cables to ensure supported link speeds and compatibility.
