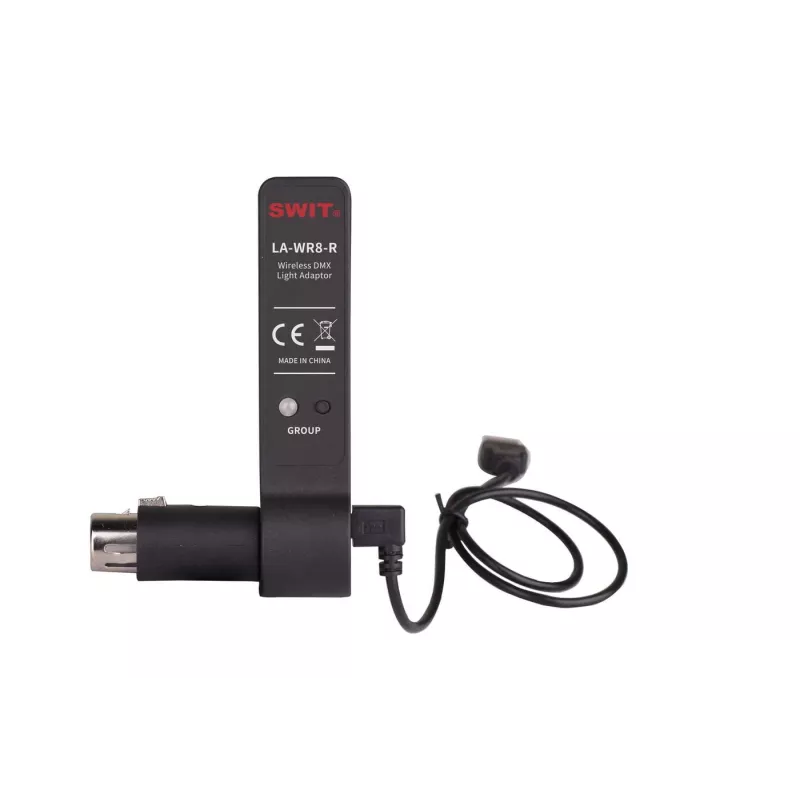

SWIT ELECTRONICS LA-WR8 RX Ασύρματος δέκτης Pocket DMX 2,4 GHz 5-Pin XLR

The SWIT ELECTRONICS LA-WR8 RX is a compact and reliable wireless DMX receiver designed for professional lighting control. Operating on the 2.4 GHz ISM band, it receives DMX512 signals from a compatible transmitter and outputs via a 5-pin XLR connector. With a transmission range of up to 400 meters line-of-sight and ultra-low latency under 5 ms, it ensures seamless control for stage, event, and architectural lighting. The built-in rechargeable battery provides up to 10 hours of operation, making it ideal for mobile setups. Its magnetic mounting system allows quick attachment to metal surfaces, and the rugged ABS housing withstands demanding environments.

Advantages

Wireless freedom eliminates cable runs, saving setup time and reducing trip hazards. The pocket-sized design fits in any toolkit, while the long battery life supports all-day use. Low latency ensures real-time DMX control without noticeable delay, critical for live performances. Magnetic mounting offers flexible placement on trusses, racks, or stands.

Suitable for

• Live stage lighting for concerts, theaters, and events
• Architectural lighting control in museums, galleries, and retail spaces
• Film and TV production where cable-free DMX is needed
• Rental and staging companies requiring reliable wireless DMX

Key specifications

• Product Type: Wireless DMX Receiver
• Wireless Frequency Band: 2.4 GHz ISM Band
• DMX Standard: DMX512
• DMX Output Connector: 1x 5-pin XLR Male
• Transmission Range: Up to 400 m (1300 ft) Line of Sight
• DMX Channels Supported: 512
• Latency: < 5 ms
• Power Input: USB-C, 5V DC
• Internal Battery: Lithium-ion, 1000 mAh
• Battery Life: Up to 10 hours
• Indicators: LED (Power, Signal, DMX Status)
• Mounting: Magnetic attachment
• Operating Temperature: -20°C to 45°C (-4°F to 113°F)
• Housing Material: ABS Plastic
• Compatibility: SWIT LA-WR8 TX Wireless DMX Transmitter

Recommendations

For best performance, pair the LA-WR8 RX with the SWIT LA-WR8 TX transmitter. Ensure line-of-sight between devices to maximize range. Use the USB-C port for convenient charging from standard power banks.
