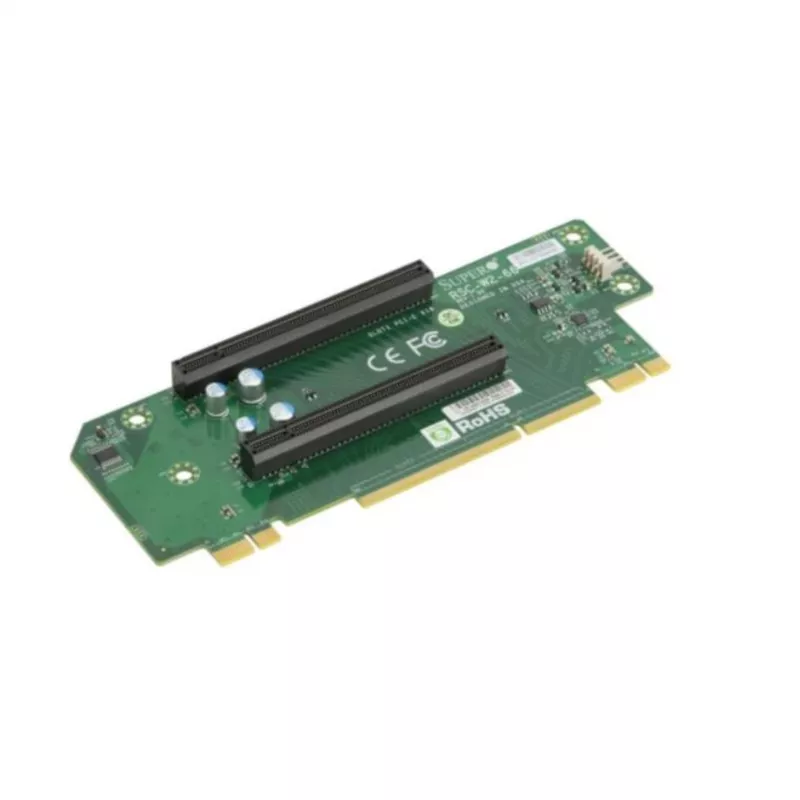

Supermicro RSC-W2-66G4 Κάρτα Riser 2U LHS WIO με 2x υποδοχές PCI-E 4.0 x16

The Supermicro RSC-W2-66G4 is a high-performance 2U Left Hand Side (LHS) Wide I/O (WIO) riser card designed to expand the PCI-E capabilities of Supermicro WIO motherboards and chassis. It provides two PCI-E 4.0 x16 slots, delivering exceptional bandwidth for demanding server and workstation applications.

Advantages

This riser card enables you to add two full-height, full-length PCI-E 4.0 x16 devices, such as GPUs, network cards, or storage controllers, to your Supermicro 2U WIO system. With PCI-E 4.0 technology, each slot offers up to 32 GB/s bi-directional bandwidth, ensuring optimal performance for data-intensive tasks. The LHS orientation is specifically designed for Supermicro 2U WIO chassis, providing a seamless fit and easy installation.

Suitable for

• Supermicro 2U WIO server and workstation chassis
• Expanding PCI-E slots for GPUs, network adapters, and storage controllers
• High-performance computing, AI, and data analytics environments

Key specifications

• Product Type: Riser Card
• Form Factor: 2U WIO (Wide I/O)
• Orientation: Left Hand Side (LHS)
• PCI Express Generation: PCI-E 4.0
• Number of PCI-E Slots: 2
• Slot Configuration: 2x PCI-E 4.0 x16
• Slot Connector Type: PCI-E x16
• Motherboard Interface: WIO Riser Connector
• Compatibility: Supermicro WIO Motherboards and 2U WIO Chassis
• Data Transfer Rate: 16 GT/s per lane
• Total Bandwidth per Slot: ~32 GB/s bi-directional
• Hot-Swap Support: No

Recommendations

For optimal performance, pair the RSC-W2-66G4 with Supermicro WIO motherboards and ensure your chassis supports LHS riser cards. This riser is ideal for expanding your system's PCI-E capabilities without sacrificing space.
