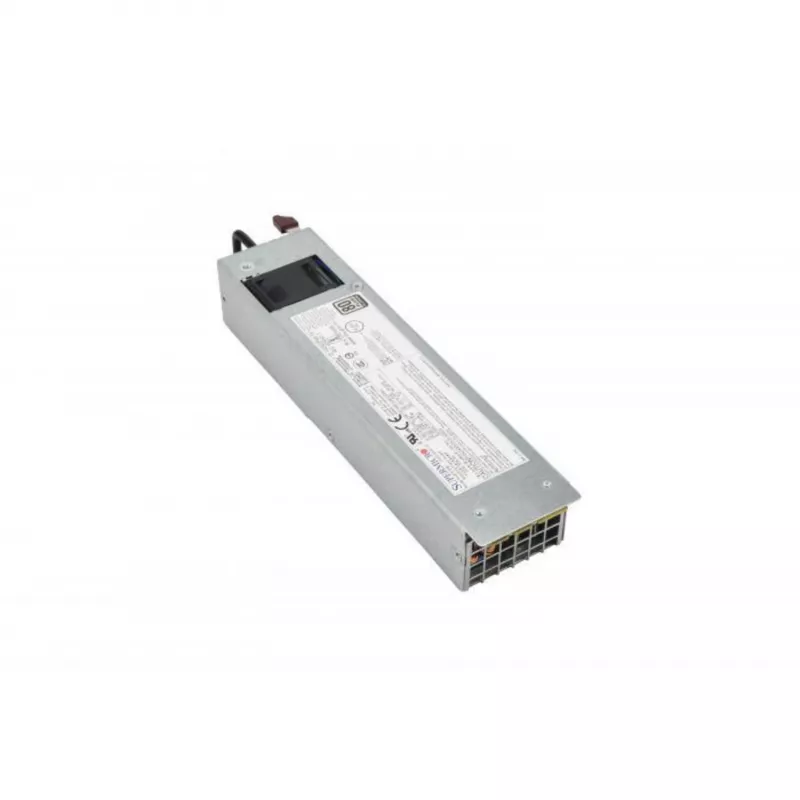

Supermicro PWS-804P-1R Πλεονάζον τροφοδοτικό 800W 80 PLUS Titanium 1U Εσωτερικό

The Supermicro PWS-804P-1R is a high-efficiency redundant power supply designed for 1U server systems. With 800W output and 80 PLUS Titanium certification, it delivers exceptional energy efficiency and reliability for demanding data center environments.

Advantages

80 PLUS Titanium certification ensures up to 96% efficiency, reducing power loss and operational costs. Hot-swappable design allows for easy replacement without system downtime. Active PFC and PMBus support provide advanced power management and monitoring capabilities.

Suitable for

• Supermicro 1U server chassis requiring redundant power
• Data centers and enterprise environments needing high efficiency and reliability
• Applications demanding N+1 or 1+1 redundancy

Key specifications

• Power Output: 800 W
• Efficiency: 80 PLUS Titanium
• Form Factor: 1U Redundant
• Input Voltage: AC 200-240 V / DC 230-240 V
• Input Frequency: 50/60 Hz
• Hot-Swappable: Yes
• Redundancy: N+1 / 1+1 capable
• Cooling: Internal fan
• MTBF: >100,000 hours
• Protection: OVP, OCP, OPP, SCP, OTP

Recommendations

For optimal performance, use this power supply with compatible Supermicro 1U chassis and backplanes. Ensure proper ventilation and adhere to specified input voltage ranges.
