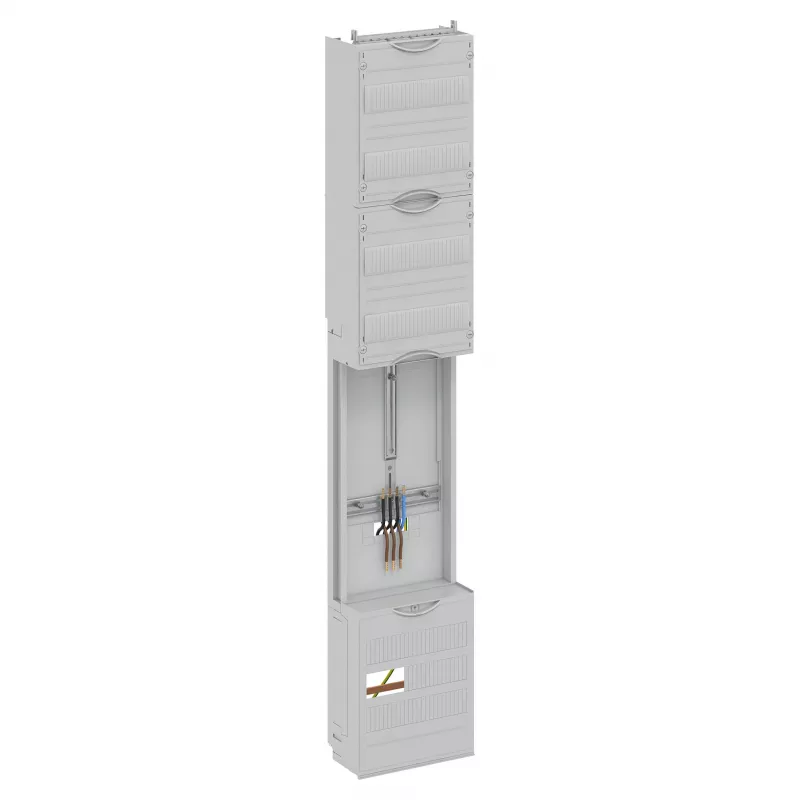

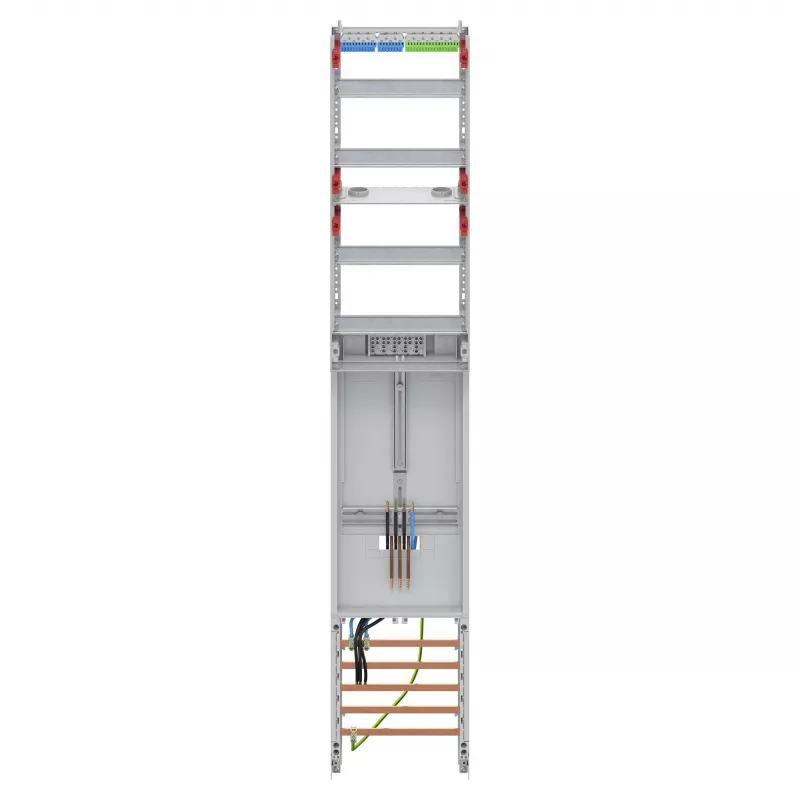

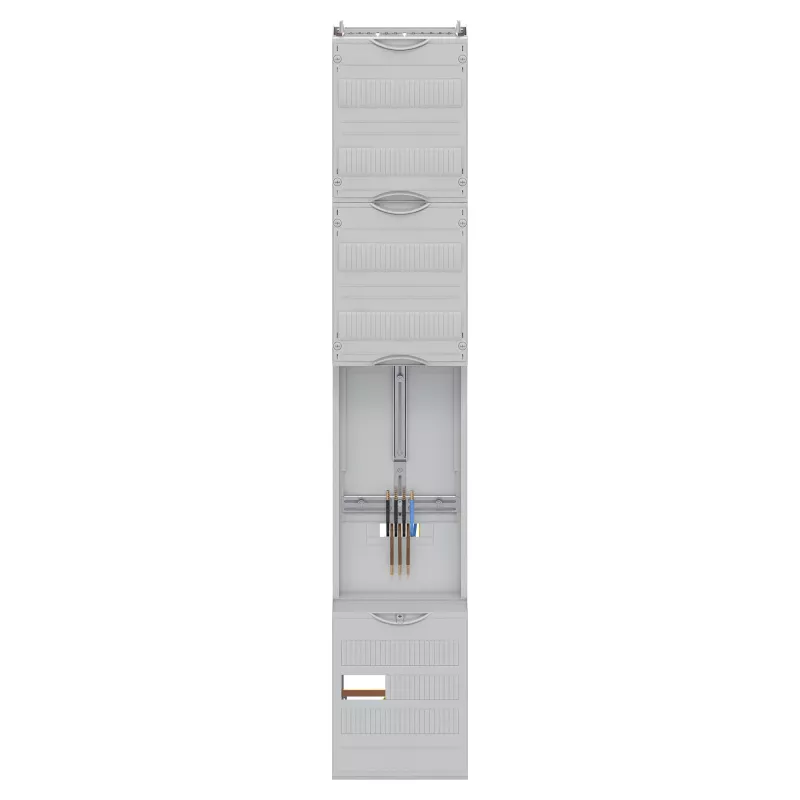

Striebel & John Πεδίο Μετρητών 9RE 1Z+2RE DF19C1V προκατασκευασμένο 2CPX054154R9999

The Striebel & John Meter Field 9RE 1Z+2RE DF19C1V is a pre-wired meter field from the ComfortLine A series, designed for residential and commercial electrical installations. It offers 1 eHZ-compatible meter position and 2 additional module spaces for RCDs or other devices, with a rated voltage of 230/400 V AC and a rated current of 63 A. The 5-pole busbar system ensures reliable 3-phase power distribution.

Advantages

Pre-wired for quick installation, saving time and reducing wiring errors. Compact 9 RE design fits standard distribution cabinets. VDE-AR-N 4100 compliant for safety and reliability.

Suitable for

• Residential electrical panels
• Commercial building installations
• Metering and distribution applications

Key specifications

• Product Type: Meter Field
• Series: ComfortLine A
• Number of Meter Positions: 1 (eHZ compatible)
• Number of Height Units: 9 RE
• Additional Module Spaces: 2 RE
• Pre-wired: Yes
• Rated Voltage: 230/400 V AC
• Rated Current: 63 A
• Number of Phases: 3-phase
• Busbar System: 5-pole
• Protection Class: IP2XC
• Material: Sheet steel, Plastic
• Standards Compliance: VDE-AR-N 4100
• Connection Terminals: Screw terminals

Recommendations

Ideal for electricians and installers seeking a pre-configured meter field for efficient and compliant electrical distribution.
