Striebel & John Μικροκατανεμητής Επίτοιχος 1FB 5 σειρών CA15V

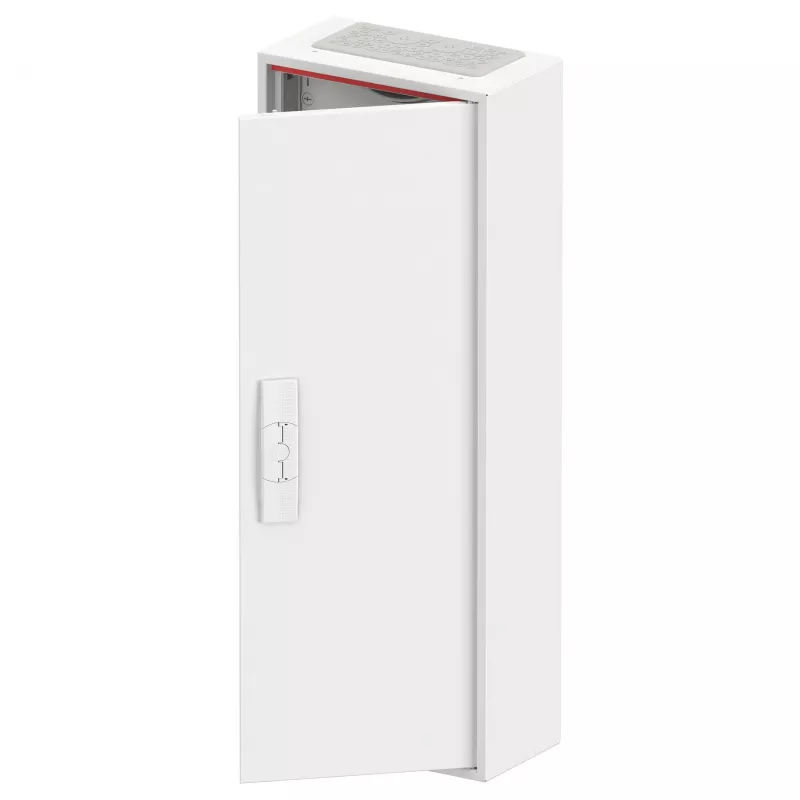

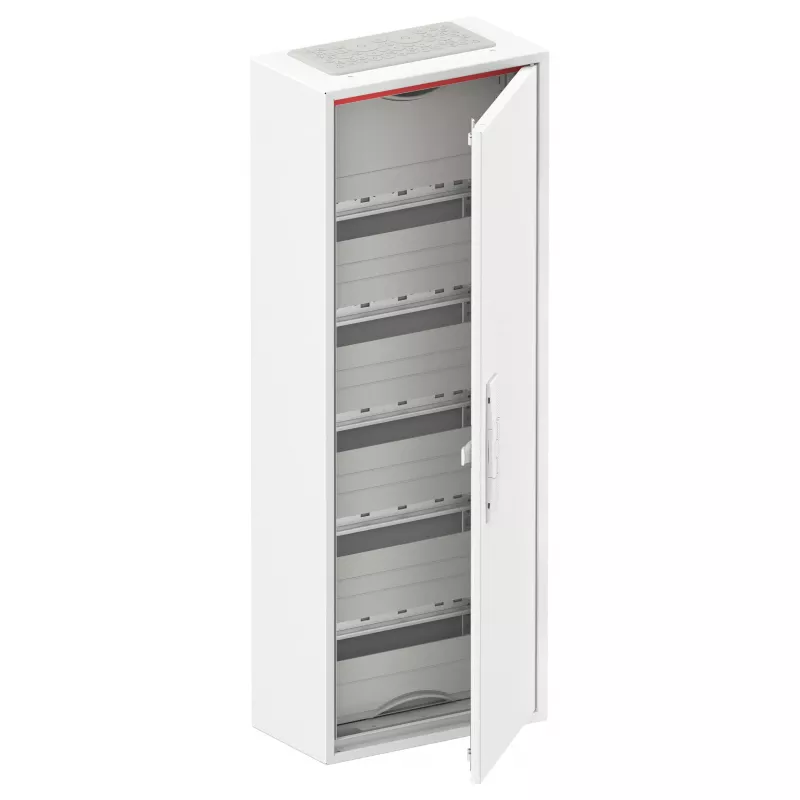

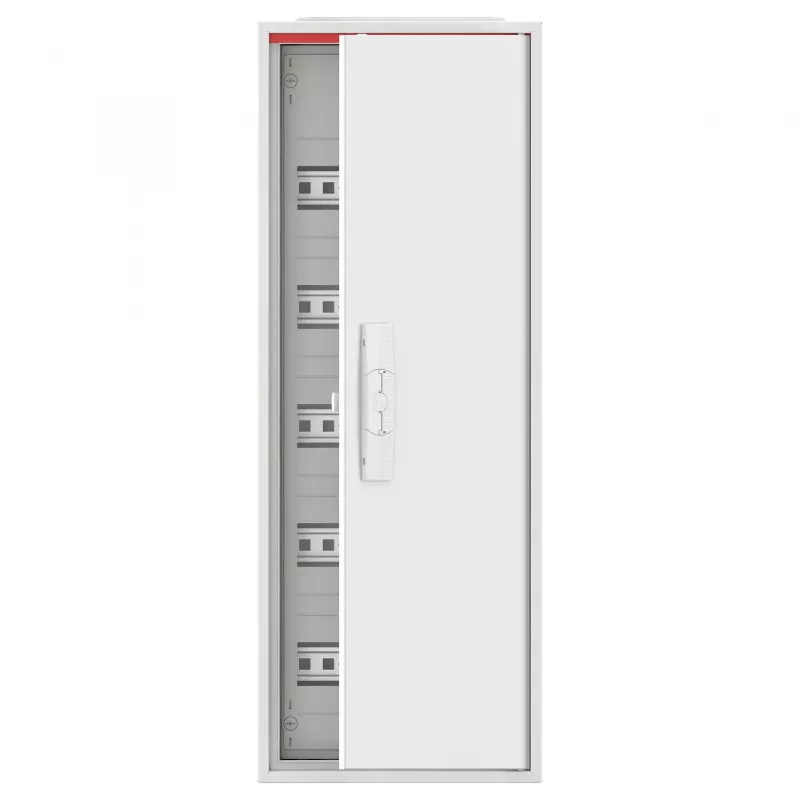

The Striebel & John Kleinverteiler Aufputz 1FB 5-reihig CA15V is a high-quality surface-mounted distribution board designed for indoor electrical distribution. With 5 rows and 12 modules per row, it offers a total of 60 TE, providing ample space for circuit breakers and other DIN rail components. The enclosure is made of durable thermoplastic with a steel sheet door, finished in white (RAL 9016). It complies with DIN VDE 0603-1 and DIN 43871 standards, ensuring reliability and safety.

Advantages

This distribution board features a robust IP31 protection rating and IK07 impact resistance, making it suitable for various indoor environments. The pre-punched cable entries at top and bottom simplify installation, while the included DIN rail and quick-connect PE/N terminals save time and effort. The opaque door provides a clean, professional appearance.

Suitable for

• Residential and commercial electrical distribution
• Installation of MCBs, RCDs, and other modular devices
• Surface-mounted applications where space is limited

Key specifications

• Mounting Type: Surface-mounted
• Number of Rows: 5
• Modules per Row: 12 TE
• Total Modules: 60 TE
• Number of Fields: 1
• Protection Class: IP31
• Impact Protection: IK07
• Housing Material: Thermoplastic
• Door Material: Steel sheet
• Door Type: Opaque
• Colour: White (RAL 9016)
• Rated Voltage: 400 V AC
• Rated Current (max): 63 A
• PE/N Terminals: Quick-connect, included
• Standards: DIN VDE 0603-1, DIN 43871
• Cable Entry: Top/Bottom, pre-punched
• DIN Rail: Included
• Application: Indoor electrical distribution

Recommendations

For optimal performance, pair this distribution board with Striebel & John compatible accessories and ensure installation by a qualified electrician.
