Σταθμός σύνδεσης Panasonic FZ-VEB551U

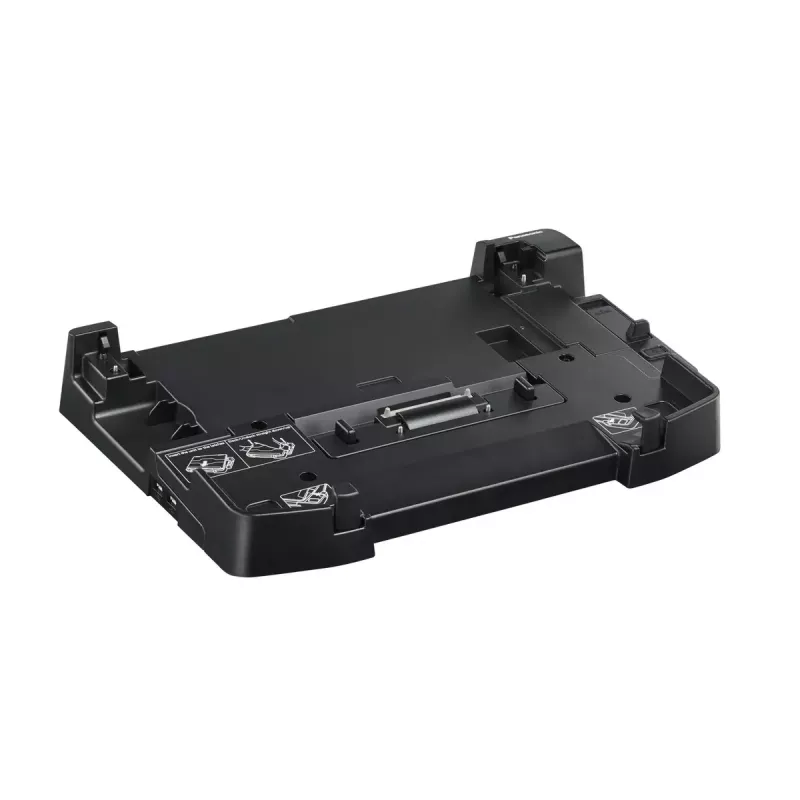

The Docking Station Panasonic FZ-VEB551U is designed to expand connectivity for the Panasonic TOUGHBOOK 55, providing a compact desktop hub that consolidates common ports and a Gigabit Ethernet connection. Its black finish and low-profile footprint (397 mm × 296 mm × 68 mm) keep a tidy workspace while offering wired network access and multiple display and peripheral interfaces. The dock is powered via DC and is intended to complement mobile compute workflows by turning a laptop into a stationary workstation.

Advantages

The docking station provides reliable Ethernet LAN data rates of 10/100/1000 Mbit/s for stable wired networking, plus a mix of USB 3.2 Gen 1 and USB 2.0 Type-A ports for connecting storage, input devices, and accessories. Dual HDMI outputs and a VGA port allow connection to multiple displays for extended desktop or mirrored arrangements. The unit’s compact dimensions and black colour make it suitable for office and field desk setups without occupying much space. The design supports convenient cable management and quick transition between mobile and desk modes.

Suitable for

• Office workstations that require wired Ethernet and multiple external displays
• Field or industrial environments using TOUGHBOOK 55 with a need for desk-based peripherals
• Trade shows or demos where quick connection to screens and input devices is required
• Home office setups that need additional USB ports and video outputs

Key specifications

• Ethernet speed: 10/100/1000 Mbit/s (Gigabit LAN)

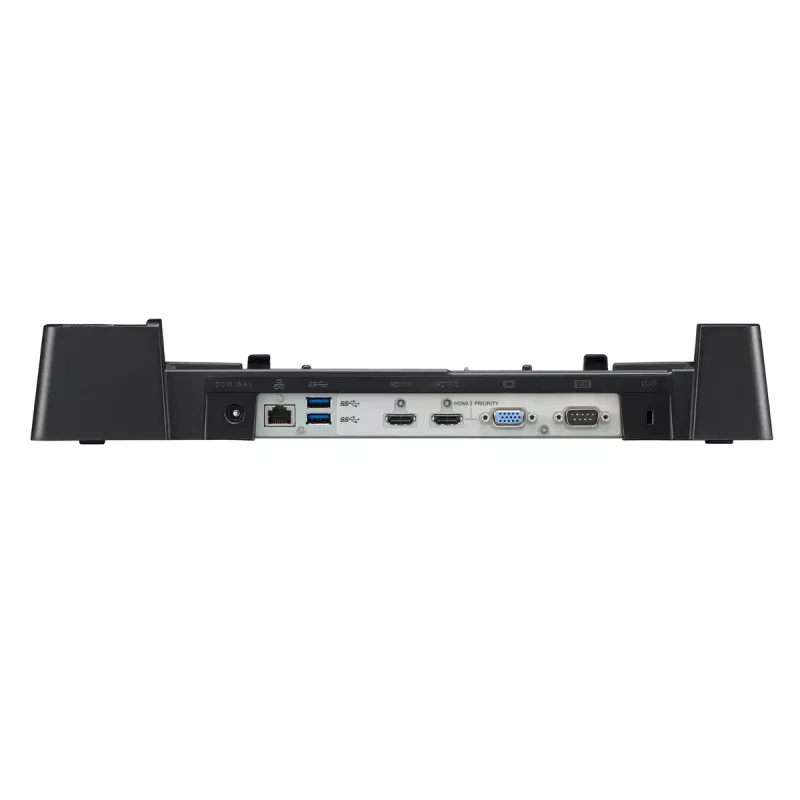

• Video outputs: 2 × HDMI, 1 × VGA (D-Sub)

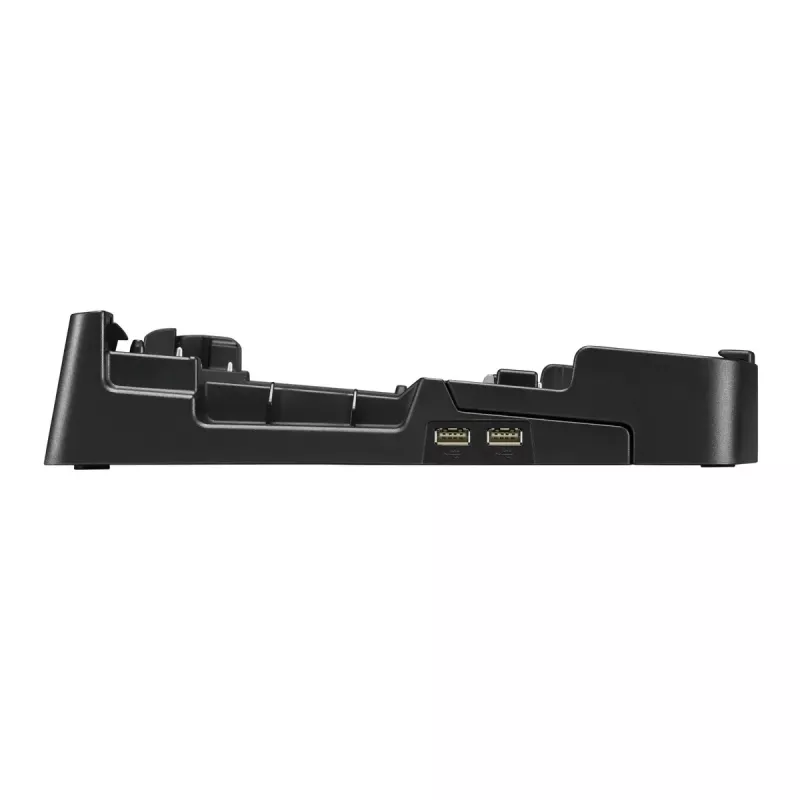

• USB ports: 2 × USB 3.2 Gen 1 (Type-A), 2 × USB 2.0 (Type-A)
• Connectivity type: Docking station for Panasonic TOUGHBOOK 55
• Power source: DC power input
• Colour: Black
• Dimensions (W×D×H): 397 mm × 296 mm × 68 mm
• Weight: 2.5 kg

How to use

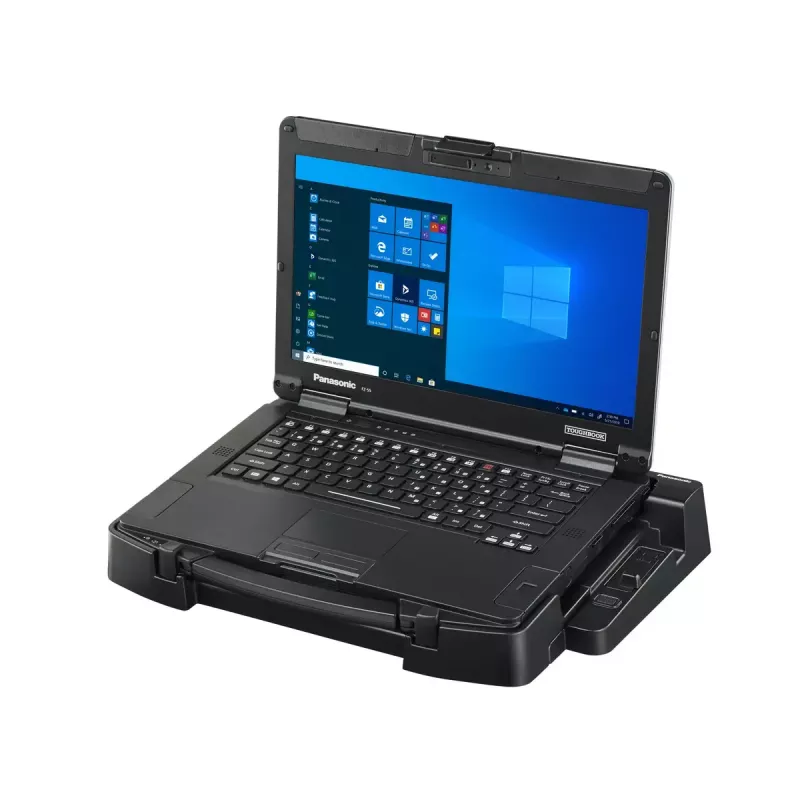

Place the Docking Station Panasonic FZ-VEB551U on a stable surface and connect the DC power adapter. Attach the TOUGHBOOK 55 to the docking connector according to the laptop’s docking instructions. Connect external displays to the HDMI and VGA ports as required, and plug peripherals into the USB Type-A ports. Connect an Ethernet cable to the RJ-45 port for wired network access. After all connections are made, power on the laptop; the operating system should detect displays and connected devices automatically, allowing configuration of display arrangement and peripheral settings through standard OS controls.

Recommendations

Use high-quality shielded Ethernet and HDMI cables to ensure stable signal transmission. When connecting multiple displays, verify display resolution and refresh rate compatibility with the TOUGHBOOK 55 to achieve optimal performance. Keep vents unobstructed and avoid placing heavy objects on the dock. For field use, secure cables to avoid strain on connectors.
