Σταθμός σύνδεσης HP UltraSlim Docking Station

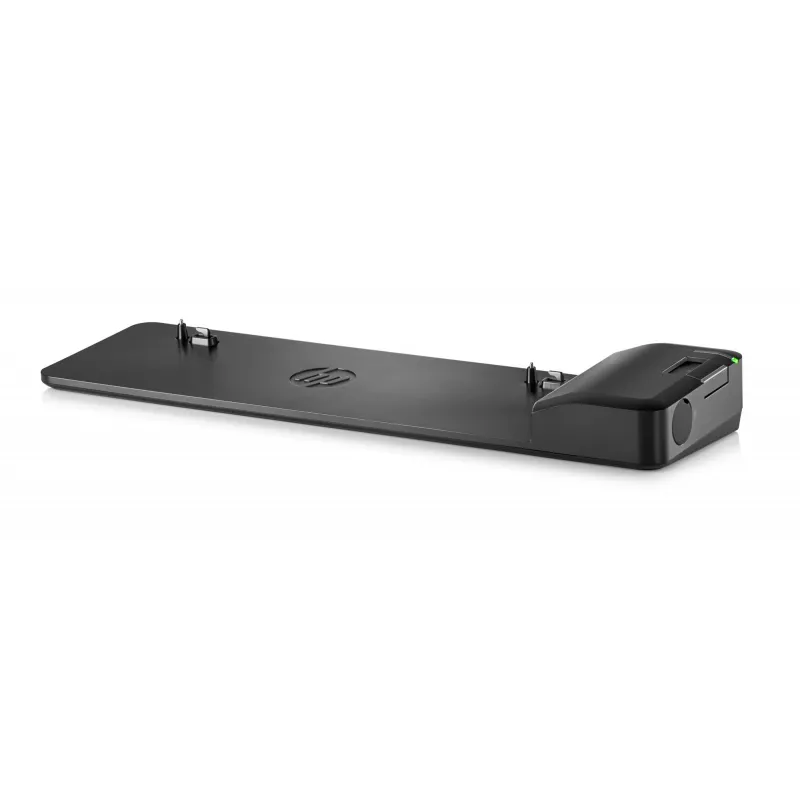

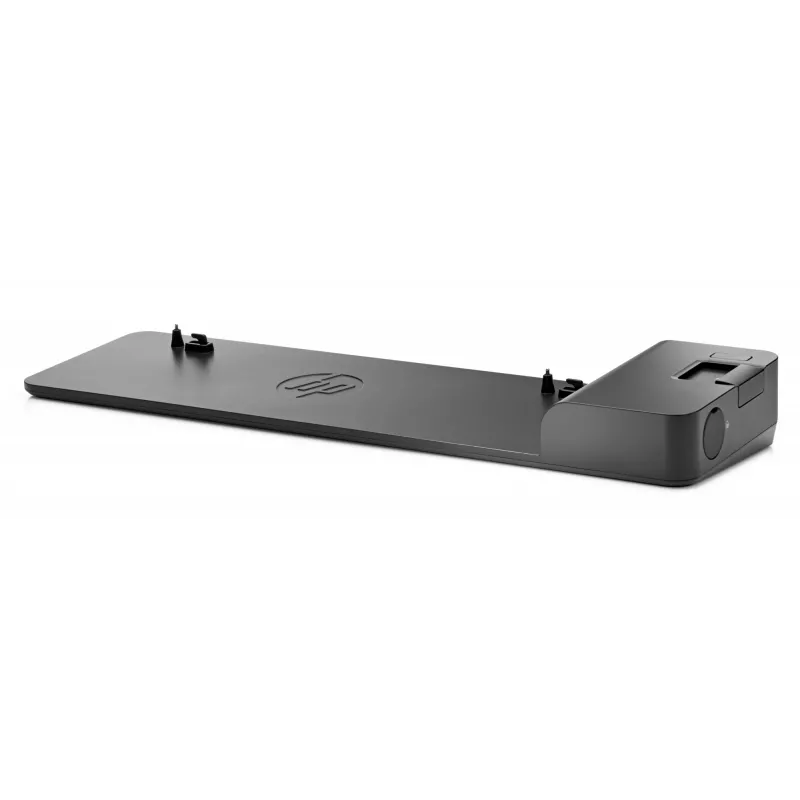

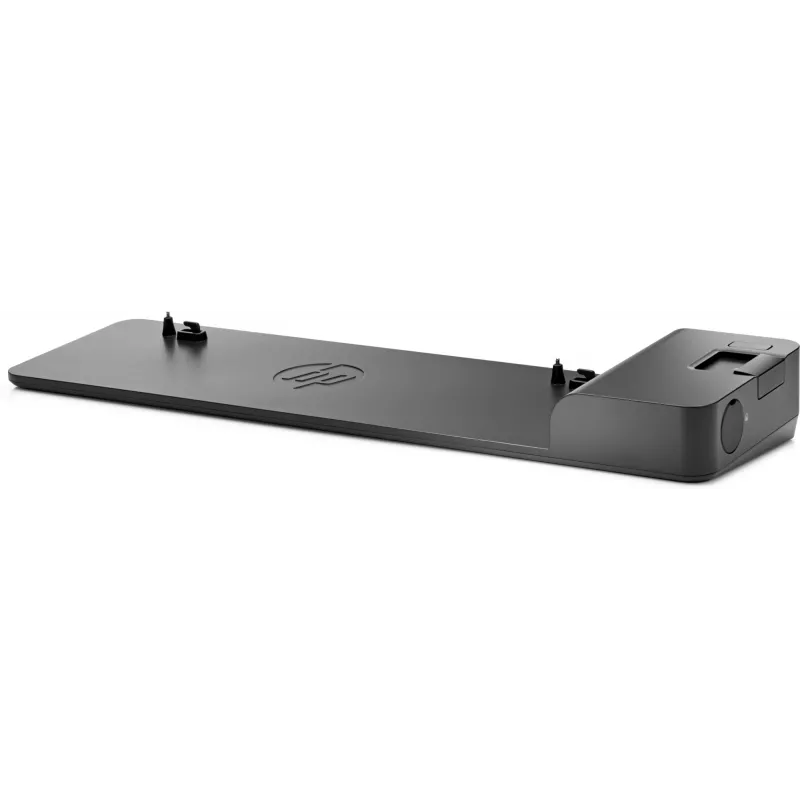

The HP UltraSlim Docking Station is a side-slide dock designed for select HP EliteBook ultraslim notebooks (including models such as the 820 G1, 840 G1 and 850 G1). It provides a compact, black docking solution that expands display, network and peripheral connectivity to create a ready workspace with a single click slide-in connection.

Advantages

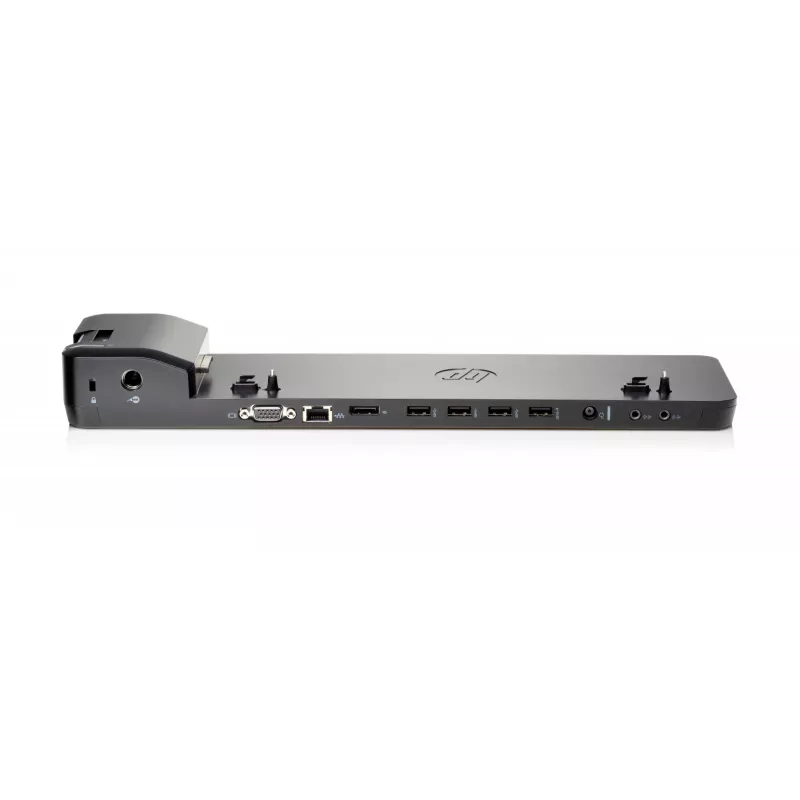

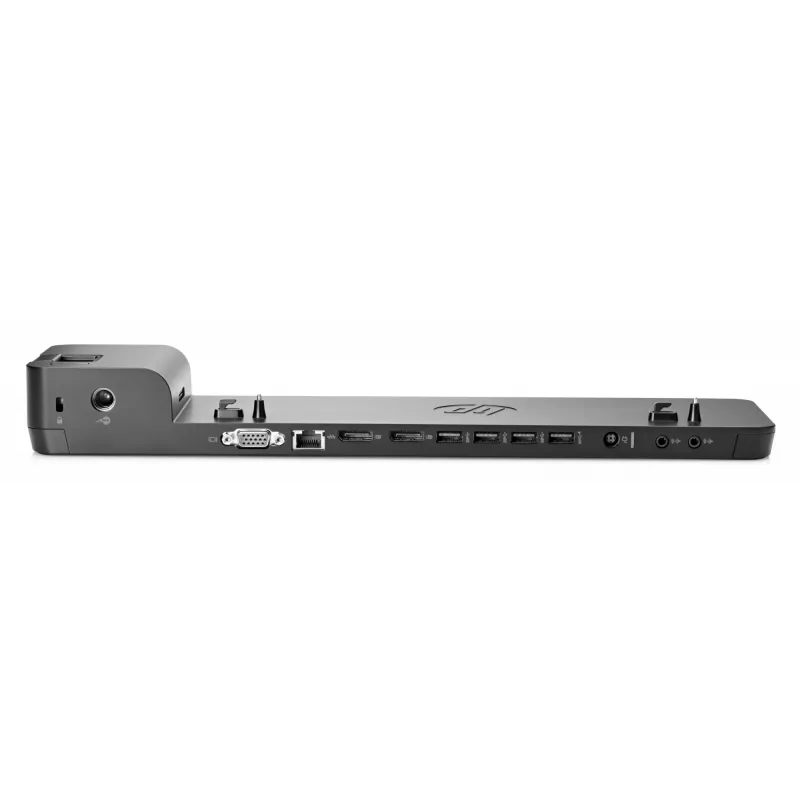

This dock offers a mix of legacy and modern video outputs with two DisplayPort connectors and one VGA port, enabling connection to a variety of monitors and projectors. A Gigabit Ethernet (RJ-45) port delivers reliable wired network access, while four USB 3.0 Type-A ports provide high-speed, backward-compatible data transfer for peripherals. The dock is lightweight and compact and supports optional physical security via the HP Docking Station Cable Lock (sold separately).

Suitable for

• Expanding a workspace for office or home office use
• Connecting multiple external monitors and legacy projectors
• Fast wired networking in a fixed workstation setup
• Attaching USB peripherals such as external drives, keyboards and mice

Key specifications

• Brand: HP, MPN: D9Y32AA#UUZ, EAN: 0887758388761
• Compatible with select HP EliteBook ultraslim models (e.g., 820 G1, 840 G1, 850 G1)
• Video outputs: 2 × DisplayPort, 1 × VGA (D-Sub)
• USB: 4 × USB 3.0 (Type-A), backward compatible with USB 2.0
• Ethernet: 1 × RJ-45 (Gigabit LAN)
• Color: Black; Weight: 0.76 kg; Form factor: side slide-in ultrathin dock

How to use

Slide the compatible HP EliteBook into the dock until it clicks to establish the physical and electrical connection. Connect external monitors to the DisplayPort or VGA outputs as required and plug network cable into the RJ-45 port for wired internet access. Attach USB peripherals to the USB 3.0 ports; devices will operate at USB 3.0 speeds when supported and fall back to USB 2.0 when required. If desired, secure the docked notebook with the HP Docking Station Cable Lock (sold separately).

Recommendations

Use the DisplayPort outputs for best video quality when connecting modern monitors. Reserve the VGA port for older displays or projectors. For optimal network performance use a Cat5e or higher Ethernet cable. Keep device drivers updated on the notebook to ensure full compatibility with USB and video outputs.
