Σταθμός σύνδεσης ACER USB Type-C ACG-DCK-C-1

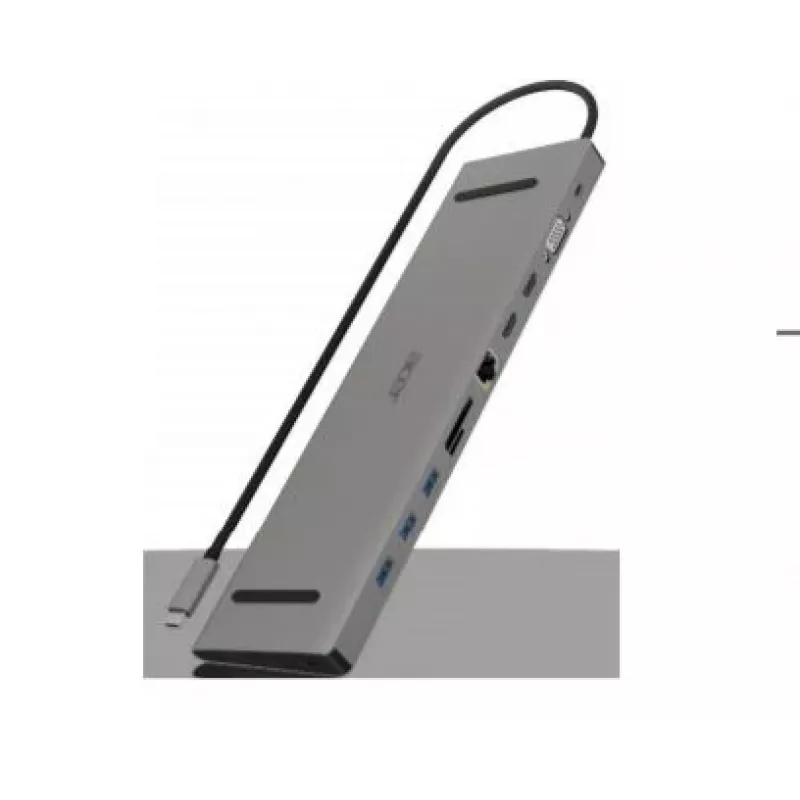

The Acer ACG-DCK-C-1 wired USB hub provides a compact and versatile docking solution for expanding connectivity on laptops and desktop systems. Featuring USB 3.2 Gen 1 Type-C input and multiple downstream ports, the hub supports fast data transfer, power delivery up to 100 W, memory card access for MicroSD and SD cards, and video output at resolutions up to 3840 x 2160 pixels. Its grey, slim enclosure (278 mm x 77 mm x 18 mm) and lightweight design integrate easily into a range of workspaces.

Advantages

This hub combines a variety of ports in a single unit to reduce cable clutter and increase connection options. USB 3.2 Gen 1 Type-A ports provide high-speed data access for external drives and peripherals, while the dedicated Ethernet port ensures stable wired network connectivity. Dual HDMI outputs and a VGA port allow connection to high-definition and legacy displays. The device also supports industry-standard USB Power Delivery, delivering up to 100 W to charge compatible laptops and devices.

Suitable for

• Connecting multiple USB peripherals such as external drives, keyboards and mice
• Attaching one or more external monitors via HDMI or VGA for presentations or extended desktop setups
• Using wired network access in environments with limited Wi‑Fi reliability
• Transferring files from MicroSD and SD memory cards for photo and video workflows
• Charging compatible laptops or devices using USB Power Delivery while connected

Key specifications

• Connectivity: wired, USB 3.2 Gen 1 Type-C input
• Data transfer rate: up to 1000 Mbit/s
• Power delivery: up to 100 W via USB Power Delivery
• Video output: up to 3840 x 2160 pixels maximum digital resolution
• Ports: 2 × HDMI, 1 × VGA (D-Sub), 3 × USB 3.2 Gen 1 Type-A, 1 × Ethernet (RJ-45)
• Memory card support: MicroSD and SD card slots
• Physical dimensions: 278 mm × 77 mm × 18 mm
• Weight: 0.288 kg
• Colour: grey

How to use

Connect the hub to a host computer using the built-in USB Type-C cable or designated Type-C input. Attach displays using HDMI or VGA cables to the corresponding ports; ensure monitor input settings match the selected output. Insert MicroSD or SD cards into the appropriate slots for direct file access. Plug USB peripherals into the Type-A ports and connect a wired LAN cable to the Ethernet port when required. If charging is needed, confirm that the host device supports USB Power Delivery and that a suitable power source is connected to enable up to 100 W delivery.

Recommendations

For reliable video output at 3840 x 2160, use high-quality HDMI cables and verify monitor firmware supports the chosen resolution. When transferring large files, prefer USB 3.2 Gen 1 compatible devices and cables. To maintain optimal thermal performance, avoid covering the hub during extended use and place it on a flat, ventilated surface.
