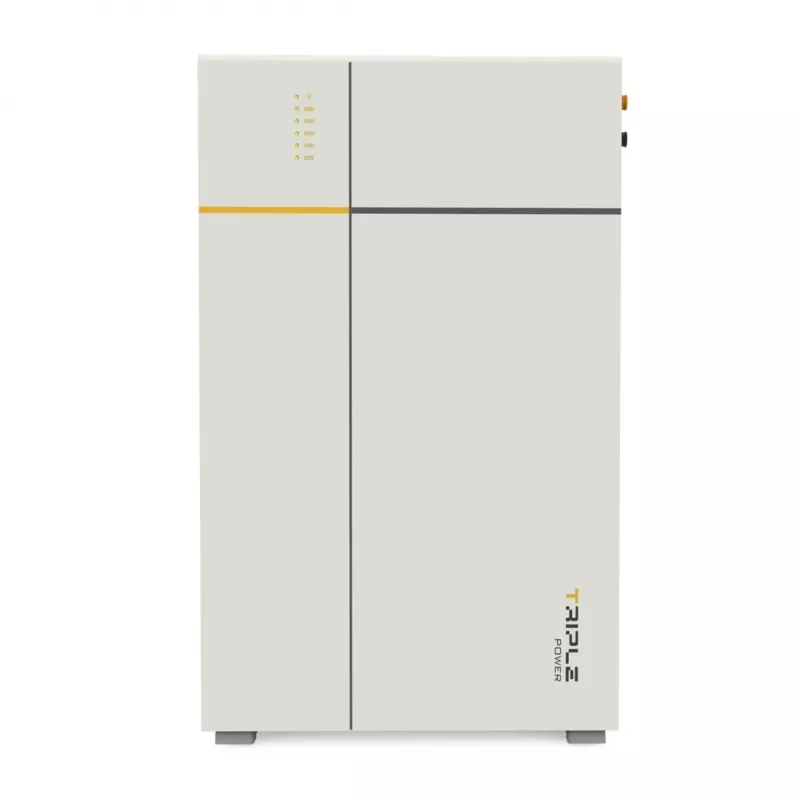

SOLAX LD150 Low Voltage Storage Module 15 kWh LiFePO4

The SOLAX LD150 is a high-capacity low-voltage storage module designed for residential and commercial energy storage systems. With a nominal energy capacity of 15.36 kWh and a usable capacity of 13.82 kWh, it provides reliable and efficient energy storage. The module utilizes advanced LiFePO4 battery technology, ensuring long cycle life and safety.

Advantages

LiFePO4 chemistry offers superior thermal stability and a cycle life exceeding 6000 cycles at 90% depth of discharge. The module supports up to 8 parallel connections for scalability, making it suitable for expanding energy storage capacity. With an IP65 rating, it is protected against dust and water jets, enabling outdoor installation.

Suitable for

• Residential solar energy storage systems
• Commercial and industrial backup power
• Off-grid and hybrid renewable energy setups
• Peak shaving and load shifting applications

Key specifications

• Battery Type: LiFePO4
• Nominal Energy: 15.36 kWh
• Usable Energy: 13.82 kWh
• Nominal Voltage: 51.2 V
• Operating Voltage Range: 44.8 V - 57.6 V
• Max Charge/Discharge Current: 150 A
• Max Charge/Discharge Power: 7.68 kW
• Depth of Discharge: 90%
• Cycle Life: >6000 cycles
• Communication: CAN / RS485
• Ingress Protection: IP65
• Operating Temperature: -10°C to 50°C
• Scalability: Up to 8 modules in parallel
• System Type: Low Voltage (LV)

Recommendations

For optimal performance, pair the SOLAX LD150 with a compatible inverter and battery management system. Ensure proper ventilation and mounting according to the manufacturer's guidelines. Regular monitoring via CAN/RS485 communication is recommended.
